6. Lift the heat sink out of the server. If the heat sink sticks to the microprocessor,
slightly twist the heat sink back and forth to break the seal. After removal,
place the heat sink on its side on a clean, flat surface.

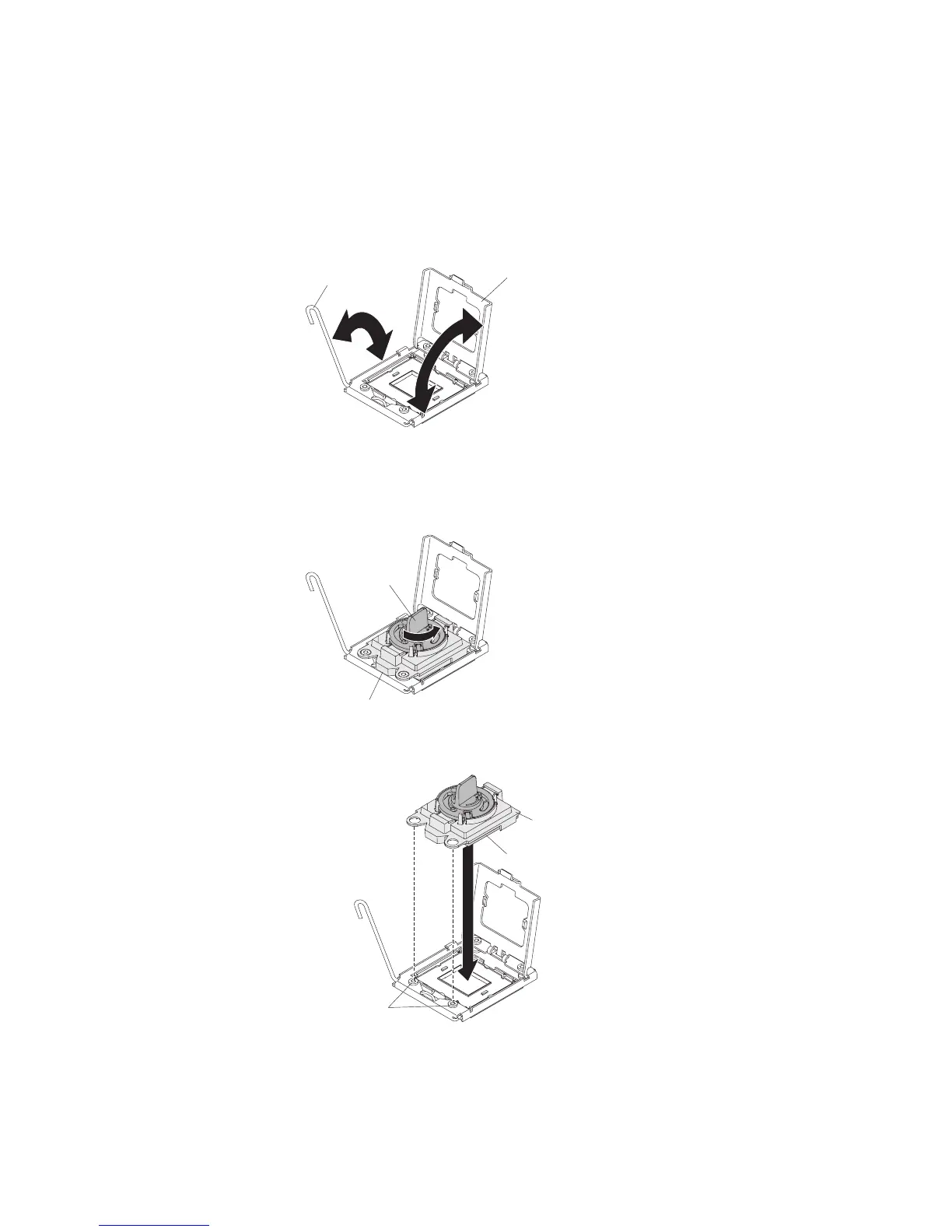

7. Release the microprocessor retention latch by pressing down on the end,
moving it to the side, and releasing it to the open (up) position.
8. Open the microprocessor bracket frame by lifting up the tab on the top edge.
Keep the bracket frame in the open position.
Microprocessor
bracket frame
Microprocessor
release lever
9. Locate the microprocessor installation tool that comes with the new
microprocessor.
10. Twist the handle on the microprocessor tool counterclockwise so that it is in
the open position.
Installation tool
Handle
11. Align the installation tool with the alignment pins on the microprocessor socket
and lower the tool down over the microprocessor.
Installation tool
Alignment pins
Microprocessor
12. Twist the handle on the installation tool clockwise and lift the microprocessor
out of the socket.
Chapter 5. Removing and replacing server components 239
