Installing the fan-bracket assembly
To install the fan-bracket assembly, complete the following steps.

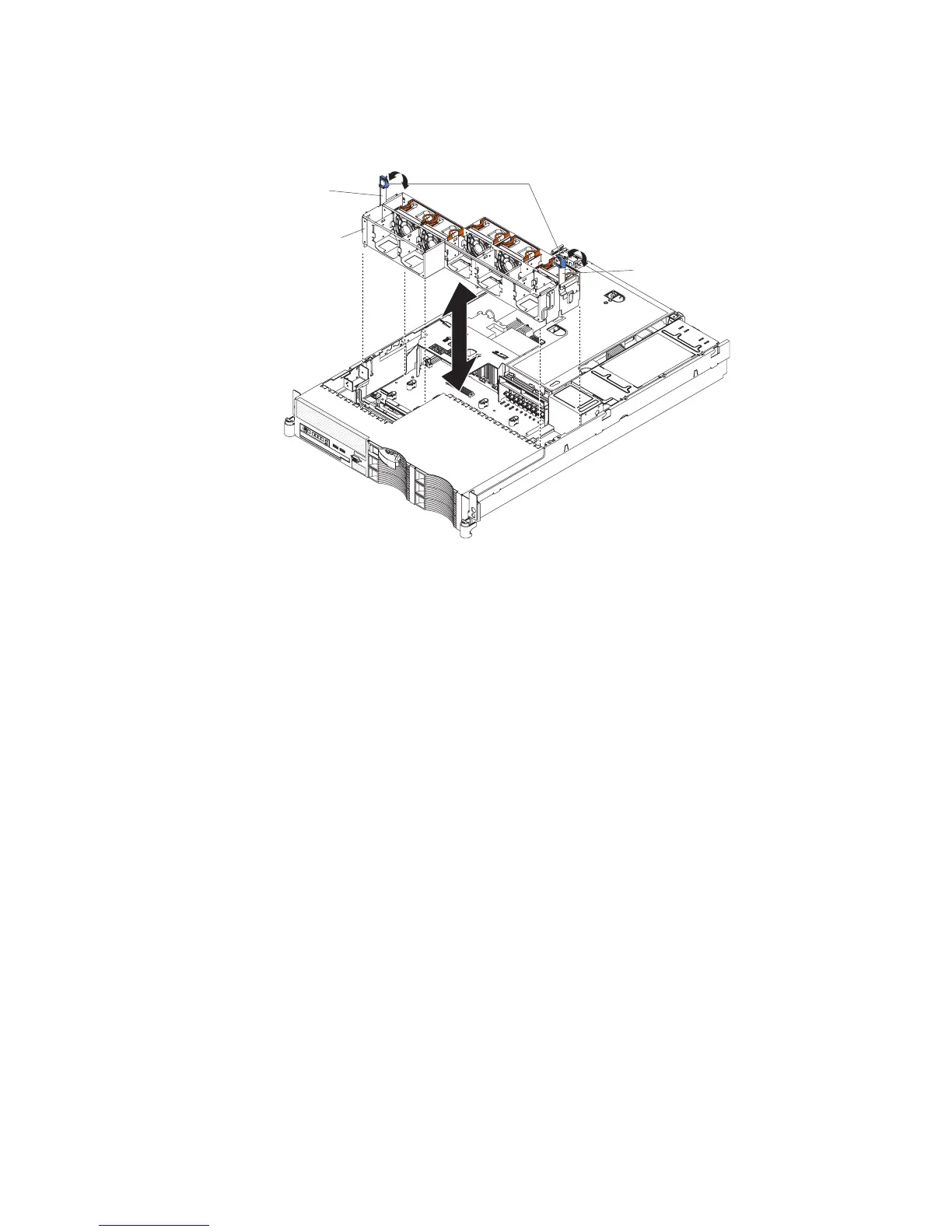

Fan bracket
Fan-bracket
release latches
Lever
Lever
1. Align the guides on the left and right sides of the assembly with the slots in the
sides of the chassis.
2. Lower the fan-bracket assembly into the chassis.
3. Push the fan-bracket-assembly levers toward the rear of the server until they
stop; pinch the release latches and metal tabs together and push the levers
down into place.
4. Press down on the lever metal tabs and on the fans to make sure that the
fan-bracket assembly is fully seated.
5. Install the cover (see “Installing the cover” on page 91).
6. Slide the server into the rack.
7. Reconnect the external cables; then, reconnect the power cords and turn on the
peripheral devices and the server.
Chapter 4. Removing and replacing server components 95
