IBM System x3650 Type 7979 User Manual

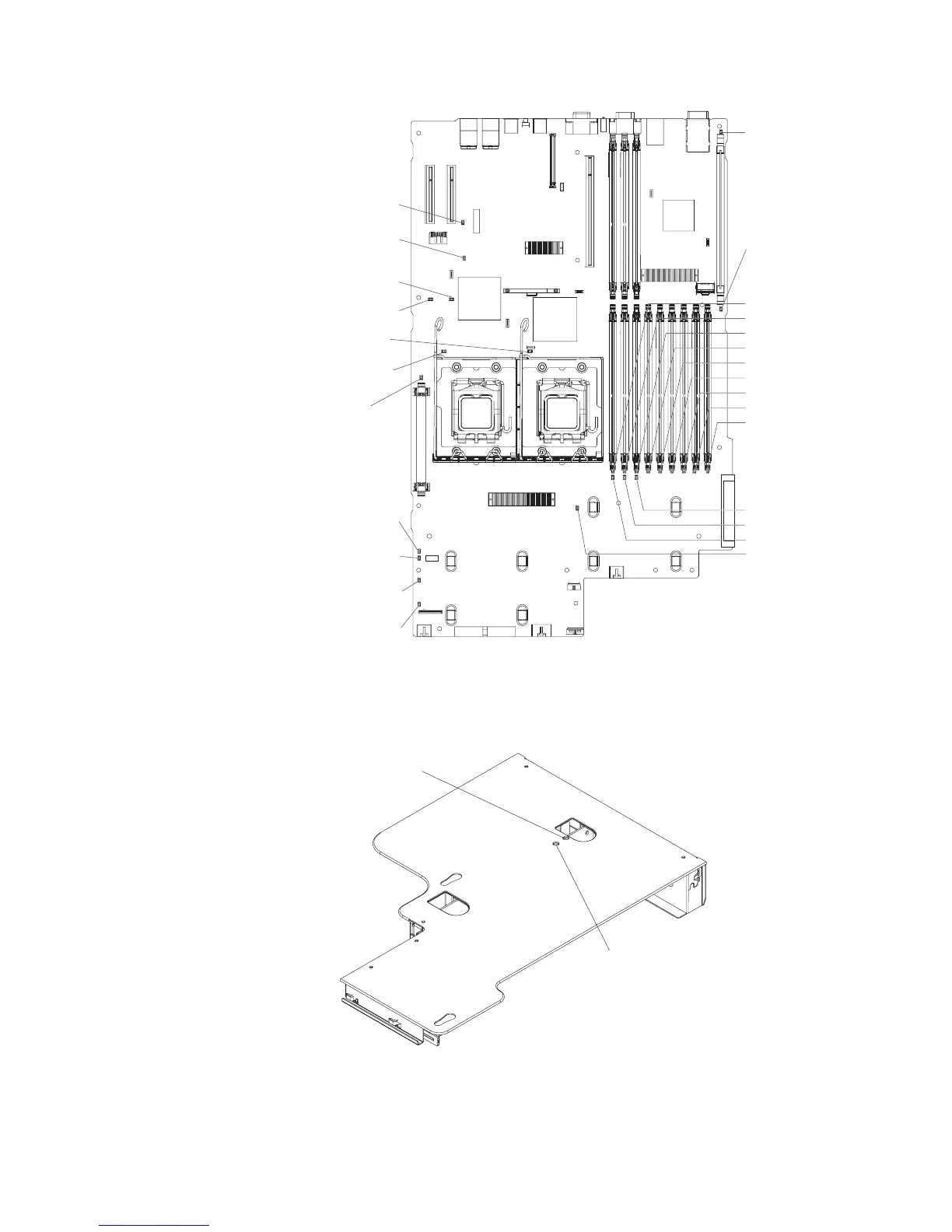

DIMM 1 error LED
Riser-card-missing
error LED
RAID error LED
DIMM 2 error LED
DIMM 3 error LED
DIMM 4 error LED
DIMM 5 error LED
DIMM 6 error LED
DIMM 7 error LED
DIMM 8 error LED
DIMM 9 error LED
DIMM 12 error LED
DIMM 11 error LED
DIMM 10 error LED
VRM
error LED
Power channel B
error LED
Power channel A
error LED
Power channel D
error LED
Power channel C
error LED
BMC heartbeat LED
3 v battery
error LED
PCI slot 3
error LED
PCI slot 4
error LED
Remote Supervisor
Adapter II SlimLine
error LED
Microprocessor 1
error LED
Microprocessor 2
error LED
Power channel error LEDs indicate an overcurrent condition. Table 4 on page 75
identifies the components associated with each power channel, and the order in
which to troubleshoot the components.
The following illustration shows the LEDs on the riser card.
PCI Slot 1 error LED
PCI Slot 2 error LED
Remind button
You can use the remind button on the light path diagnostics panel to put the
system-error LED on the operator information panel into Remind mode. When you
Chapter 2. Diagnostics 51
