System-board option connectors

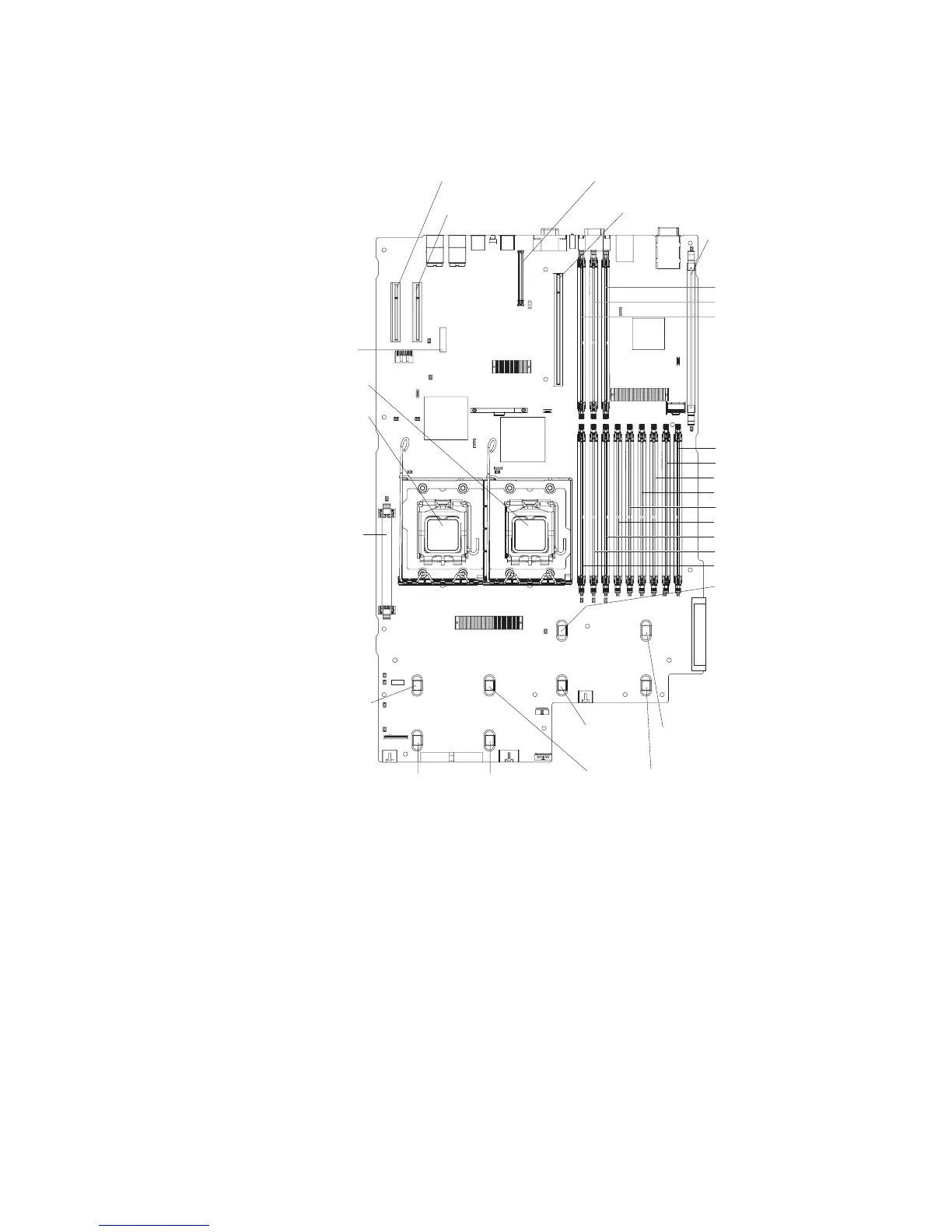

The following illustration shows the connectors on the system board for
user-installable options.
ServeRAID SAS connector
Fan 8
connector
Fan 9
connector
Fan 5
connector
Fan 2
connector
Fan 4
connector
Fan 3
connector
Fan 1
connector
Fan 6
connector
PCI riser card connector
Remote Supervisor Adapter II
SlimLine connector
PCI Express slot 4
connector
PCI Express slot 3
connector
Battery
connector
Microprocessor 1
connector
Microprocessor 2
connector
Voltage regulator
module connector
DIMM 10 connector
DIMM 11 connector
DIMM 12 connector
DIMM 1 connector
DIMM 2 connector
DIMM 3 connector
DIMM 4 connector
DIMM 5 connector
DIMM 6 connector
DIMM 7 connector
DIMM 8 connector
DIMM 9 connector
Note: The connectors for fans 7 and 10 are on the power backplane. See
“Power-backplane-board connectors” on page 10.
Chapter 1. Introduction 9
