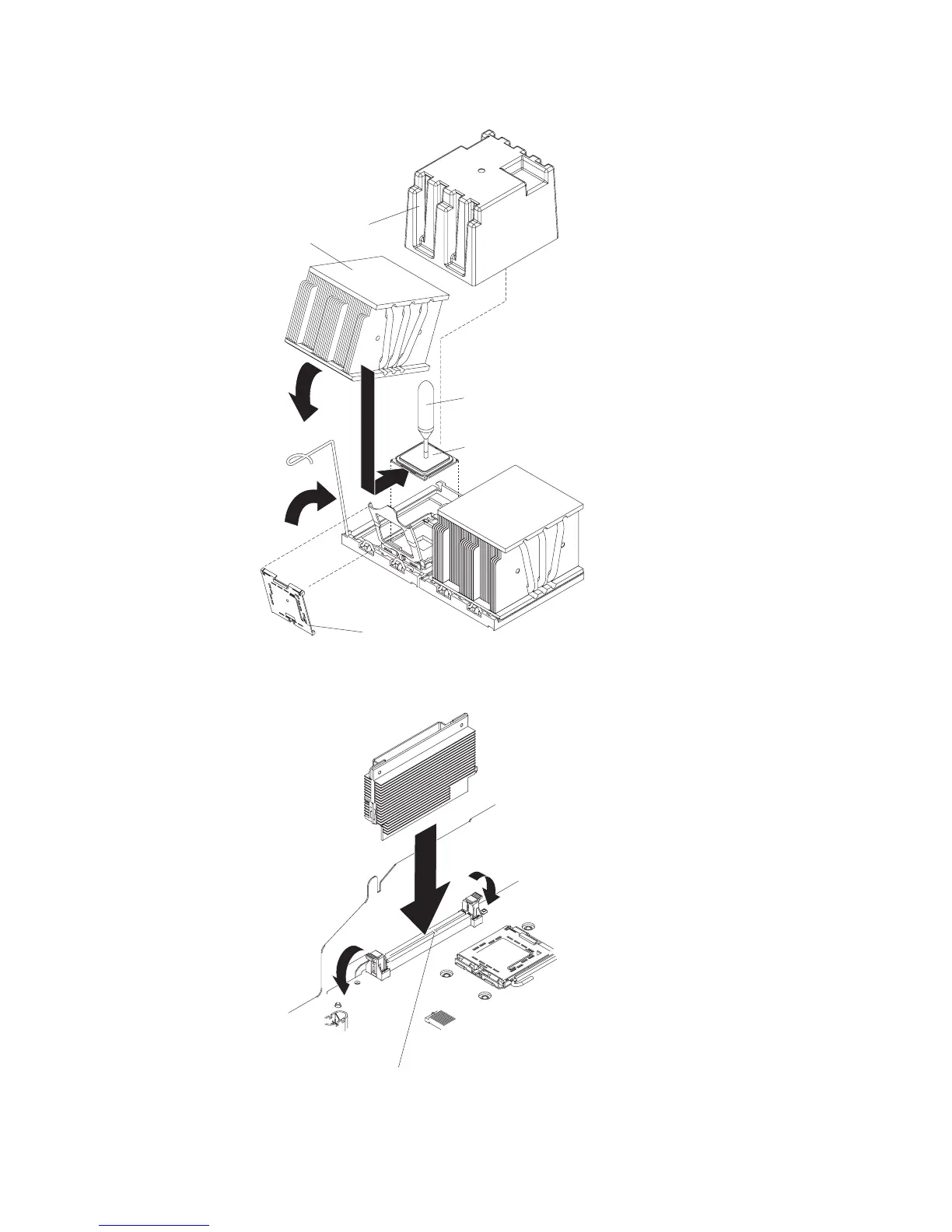

Note: For simplicity, certain components are not shown in this illustration.

Microprocessor

Heat-sink

filler

Heat sink

Microprocessor socket

dust cover

Vacuum tool

1. If you are installing microprocessor 2, and are replacing the VRM, install the

new VRM in the VRM connector (J72).

Alignment key

a. Touch the static-protective package containing the VRM to any unpainted

metal surface on the outside of the server. Then, remove the VRM from the

package.

136 IBM System x3650 Type 7979 and 1914: Problem Determination and Service Guide
