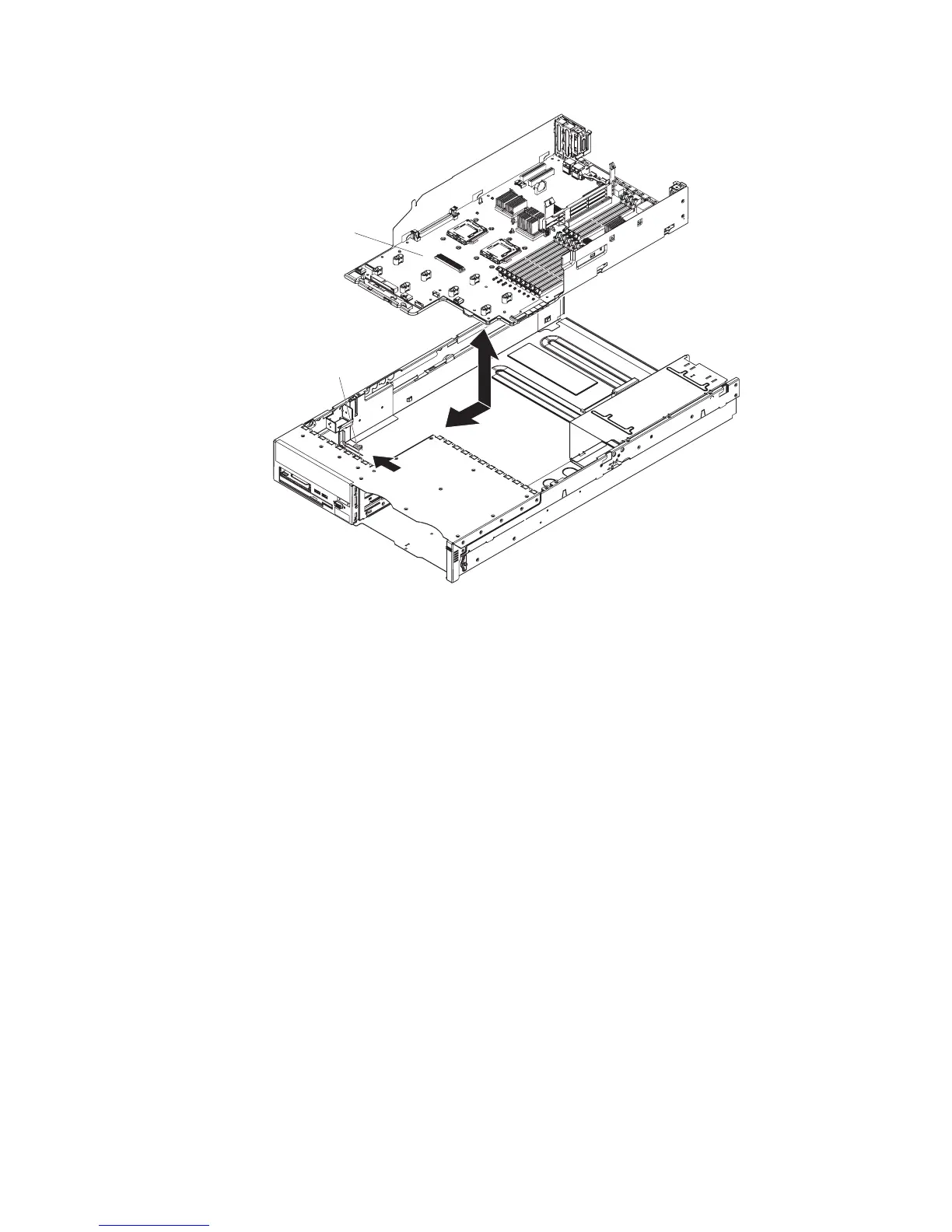

Shuttle release

latch

Shuttle assembly

1. Align the openings in the sides of the shuttle with the protrusions in the sides

of the server, and lower the shuttle into the server; then, slide the shuttle

toward the front of the server until it clicks into place. Make sure that the

shuttle locking latch holds the shuttle securely in place.

2. Slide the power backplane toward the system board until the connectors mate

(see “Installing the power backplane” on page 127).

3. Install the power supplies (see “Installing a hot-swap power supply” on page

119).

4. Reconnect to the system board the cables that you disconnected in step 6 of

“Removing the system board and shuttle” on page 140.

5. Install the VRM and each microprocessor with its matching heat sink (see

“Installing a microprocessor” on page 135).

6. Install the DIMMs (see “Installing a memory module” on page 114).

7. Install the air baffles.

8. Install the riser-card assembly and all adapters.

9. Install the fan-bracket assembly.

10. Install the cover (see “Installing the cover” on page 91).

11. Slide the server into the rack.

12. Reconnect the external cables; then, reconnect the power cords and turn on

the peripheral devices and the server.

Important: Either update the server with the latest SAS firmware or restore the

pre-existing firmware from a diskette or CD image.

142 IBM System x3650 Type 7979 and 1914: Problem Determination and Service Guide
