30. If you removed any fans, install them.
31. Insert the hard disk drives and the fillers the rest of the way into the bays.
Results
If you have other devices to install or remove, do so now. Otherwise, go to
“Completing the installation” on page 154.
Installing a SAS/SATA 8 Pac HDD for 2 RAID kit with 2 M5015 adapters
option
About this task
If the server is a 16-drive-capable model with eight hard disk drive bays installed,
you can install an IBM System x3650 M3 Hot-swap SAS/SATA 8 Pac HDD option.
See http://www.ibm.com/systems/info/x86servers/serverproven/compat/us/ for
a list of supported optional devices. To order a SAS/SATA 8 Pac HDD for 2 RAID
kit with 2 M5015 adapters option, contact your IBM marketing representative or
authorized reseller.
The SAS/SATA 8 Pac HDD for 2 RAID kit with 2 M5015 adapters option contains
the following components:
v One 2.5-inch hard disk drive backplane
v Two M5015 adapters

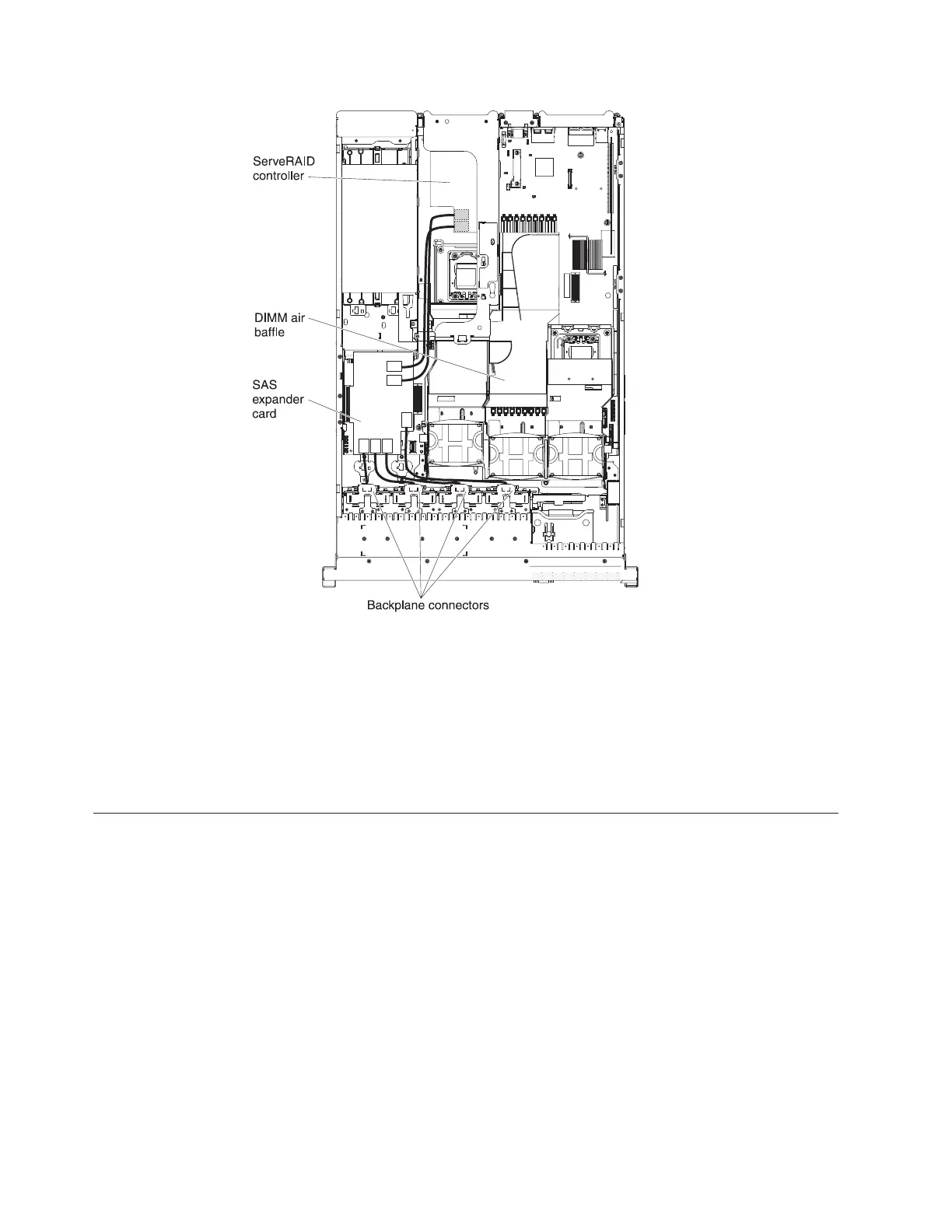

Figure 82. Cable routing
86 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
