v Release latch: Slide this latch to the left to access the light path diagnostics
panel, which is behind the operator information panel.
v Locator button and locator LED: Use this LED to visually locate the server
among other servers. Press this button to turn on or turn off this LED locally.
You can use IBM Systems Director to light this LED remotely.
Light path diagnostics panel
The light path diagnostics panel is on the top of the operator information panel.
To access the light path diagnostics panel, slide the blue release button on the
operator information panel to the left. Pull forward on the operator information
panel until the hinge of the panel is free of the server chassis. Then pull down on
the operator information panel, so that you can view the light path diagnostics
panel information.

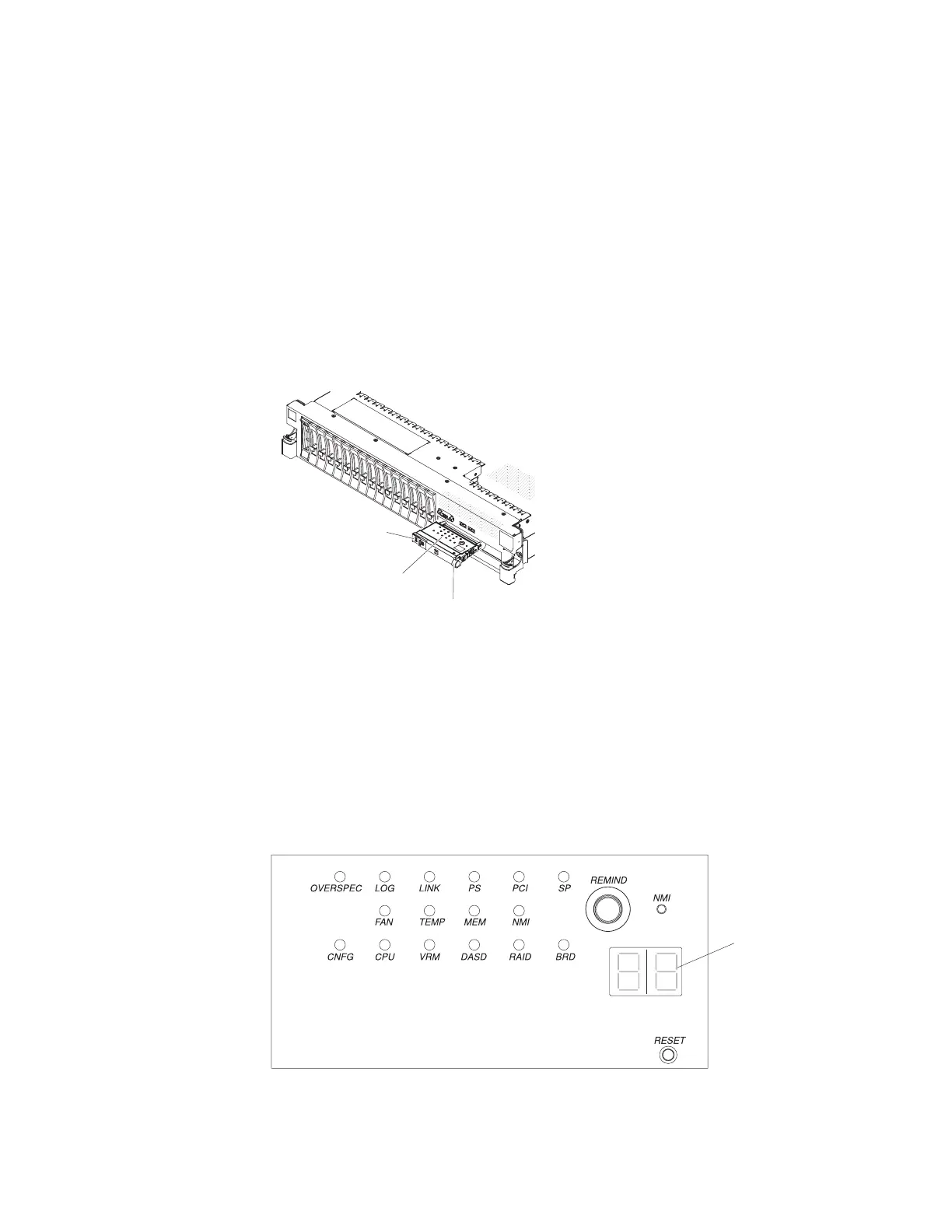

The following illustration shows the controls and LEDs on the light path
diagnostics panel.
Note:
1. Do not run the server for an extended period of time while the light path
diagnostics panel is pulled out of the server.
2. Light path diagnostics LEDs remain lit only while the server is connected to
power.
Operator information
panel
Light path
diagnostics LEDs
Release latch
Figure 7. Path diagnostics panel
Checkpoint
code display
Figure 8. Controls and LEDs on the light path diagnostics panel
Chapter 1. The System x3650 M3 server 17
