Installing a hard disk drive
Use this information to install a hard disk drive.
About this task
The following notes describe the type of hard disk drives that the server supports
and other information that you must consider when you install a drive. For a list
of supported drives, see http://www.ibm.com/systems/info/x86servers/
serverproven/compat/us/.
Important: Do not install a SCSI hard disk drive in this server.
v Locate the documentation that comes with the hard disk drive and follow those
instructions in addition to the instructions in this chapter.
v The server supports eight 2.5-inch hot-swap or simple-swap hard disk drives
installed on Ultra-Slim hard disk drive trays. An optional 8-drive-bay kit is
available for 16-drive-capable server models. For a list of supported 2.5-inch
hard disk drives, see http://www.ibm.com/systems/info/x86servers/
serverproven/compat/us/.
v All hot-swap drives in the server should have the same throughput speed rating.
Using hard disk drives with different speed ratings will cause all drives to
operate at the throughput speed of the slowest drive.
v The ID that is assigned to each bay is printed on the front of the server, above
the drive bay.

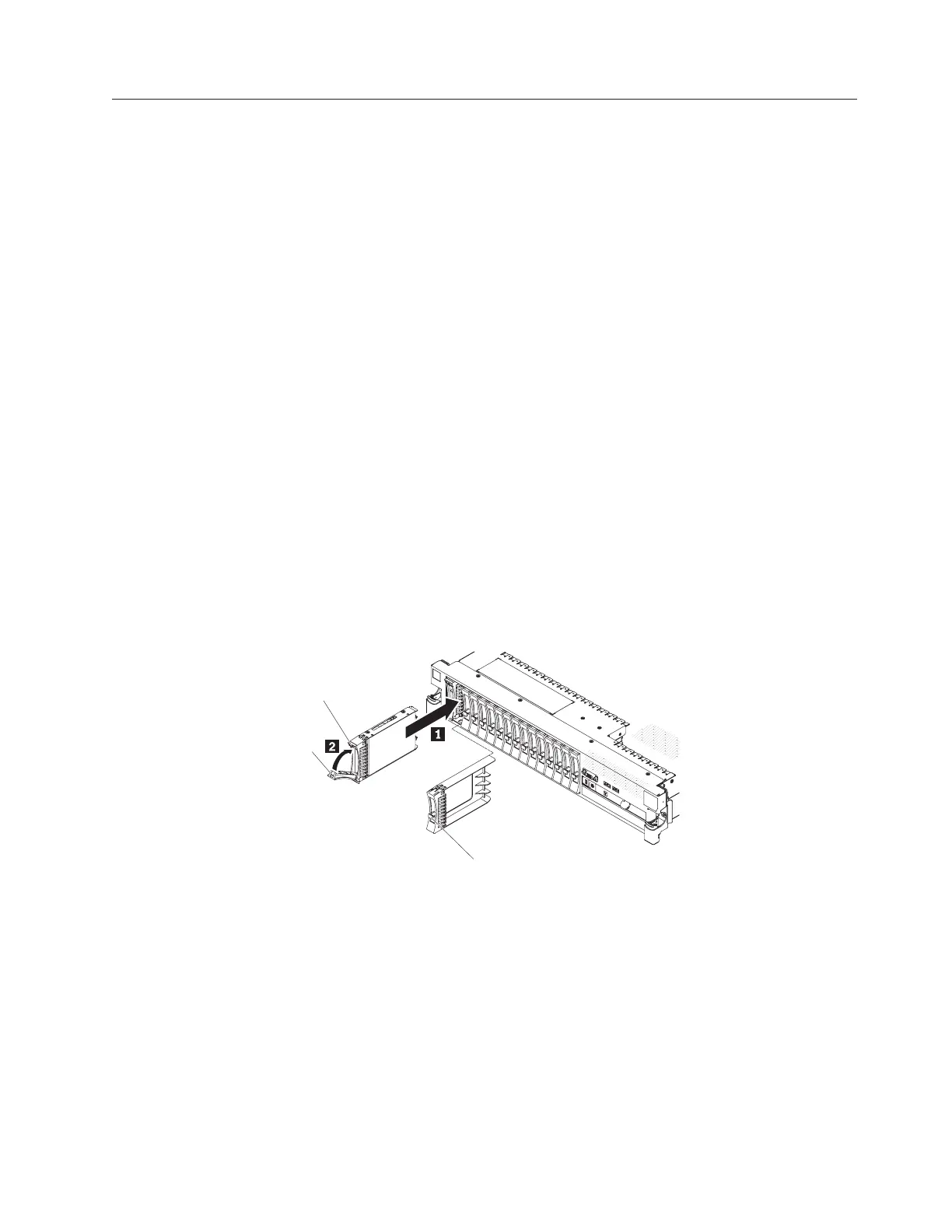

The following illustration shows how to install a hot-swap hard disk drive.
To install a drive in a hot-swap bay, complete the following steps.
Attention: To maintain proper system cooling, do not operate the server for more
than 10 minutes without either a drive or a filler panel installed in each bay.
Procedure
1. Read the safety information that begins on page “Safety” on page v,
“Installation guidelines” on page 37, and “Handling static-sensitive devices” on
page 40.
2. Remove the filler panel from one of the empty hot-swap bays: Grasp the filler
panel handle and pull the filler panel away from the server.
Latch
Handle
Filler panel handle
Figure 47. Hot-swap hard disk drive installation
Chapter 2. Installing optional devices 61
