IBM x3650 M3 User Manual

Installing the DIMM air baffle
Use this information to install the DIMM air baffle.
About this task
The following illustration shows how to install the DIMM air baffle.
To install the DIMM air baffle, complete the following steps:
Procedure
1. Read the safety information that begins on page “Safety” on page v and
“Installation guidelines” on page 37.
2. Make sure that the server and peripheral devices are turned off (see “Turning
off the server” on page 23) and that all power cords and external cables are
disconnected.
3. Remove the cover (see “Removing the cover” on page 45).
4. Make sure that PCI riser-card assembly 1 is removed (see “Removing a PCI
riser-card assembly” on page 46).
5. Align the DIMM air baffle with the DIMMs and the back of the fans.
6. Lower the air baffle into place.
7. Install PCI riser-card assembly 1, if needed (see “Installing a PCI riser-card
assembly” on page 47.
DIMM air baffle
PCI riser-card
assembly 1

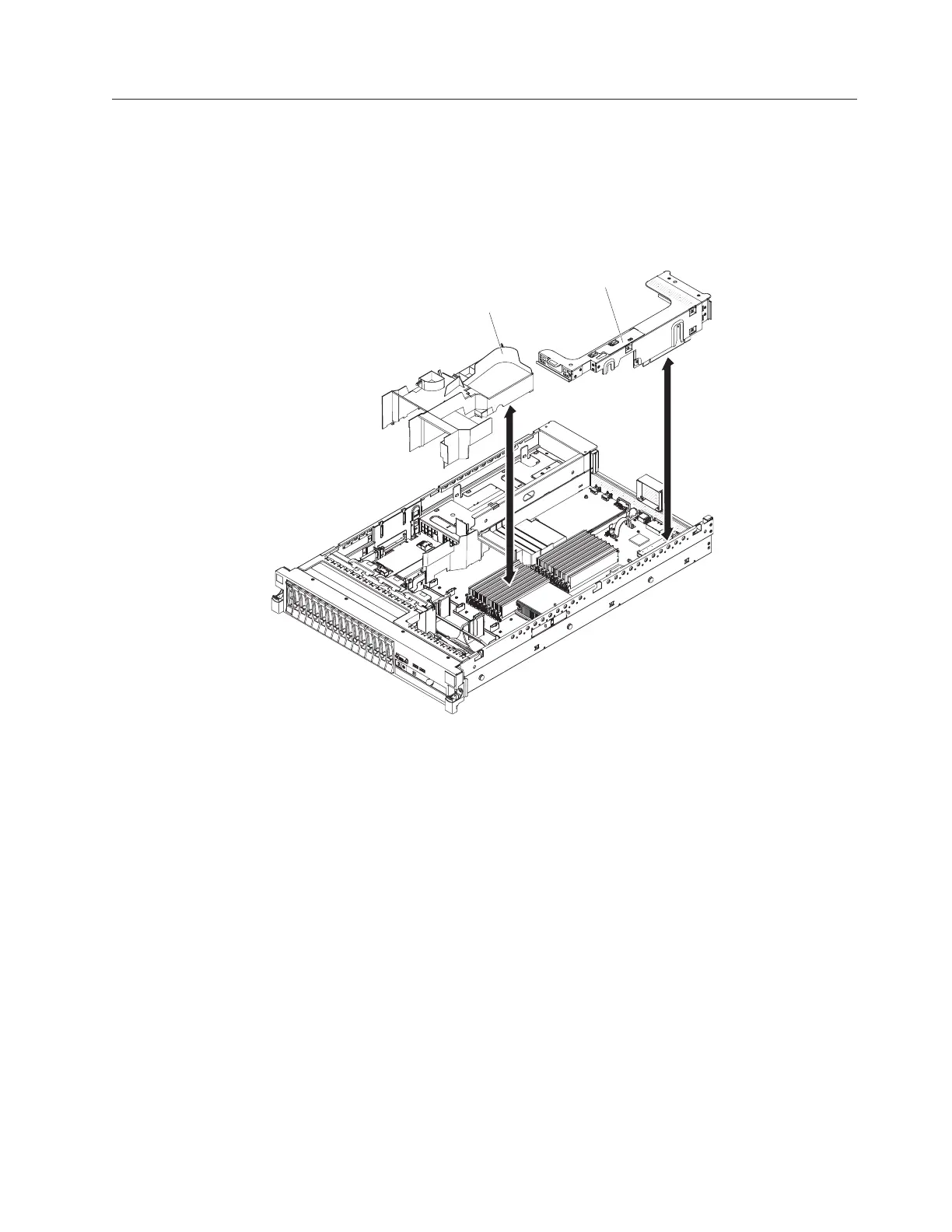

Figure 36. DIMM air baffle installation
Chapter 2. Installing optional devices 51
