SAS riser-card connectors and LEDs
The following illustrations show the connectors and LEDs on the SAS riser-cards.
Note: Error LEDs remain lit only while the server is connected to power.
A 16-drive-capable model server contains the riser card that is shown in the
following illustration.
A tape-enabled model server contains the riser card that is shown in the following
illustration.

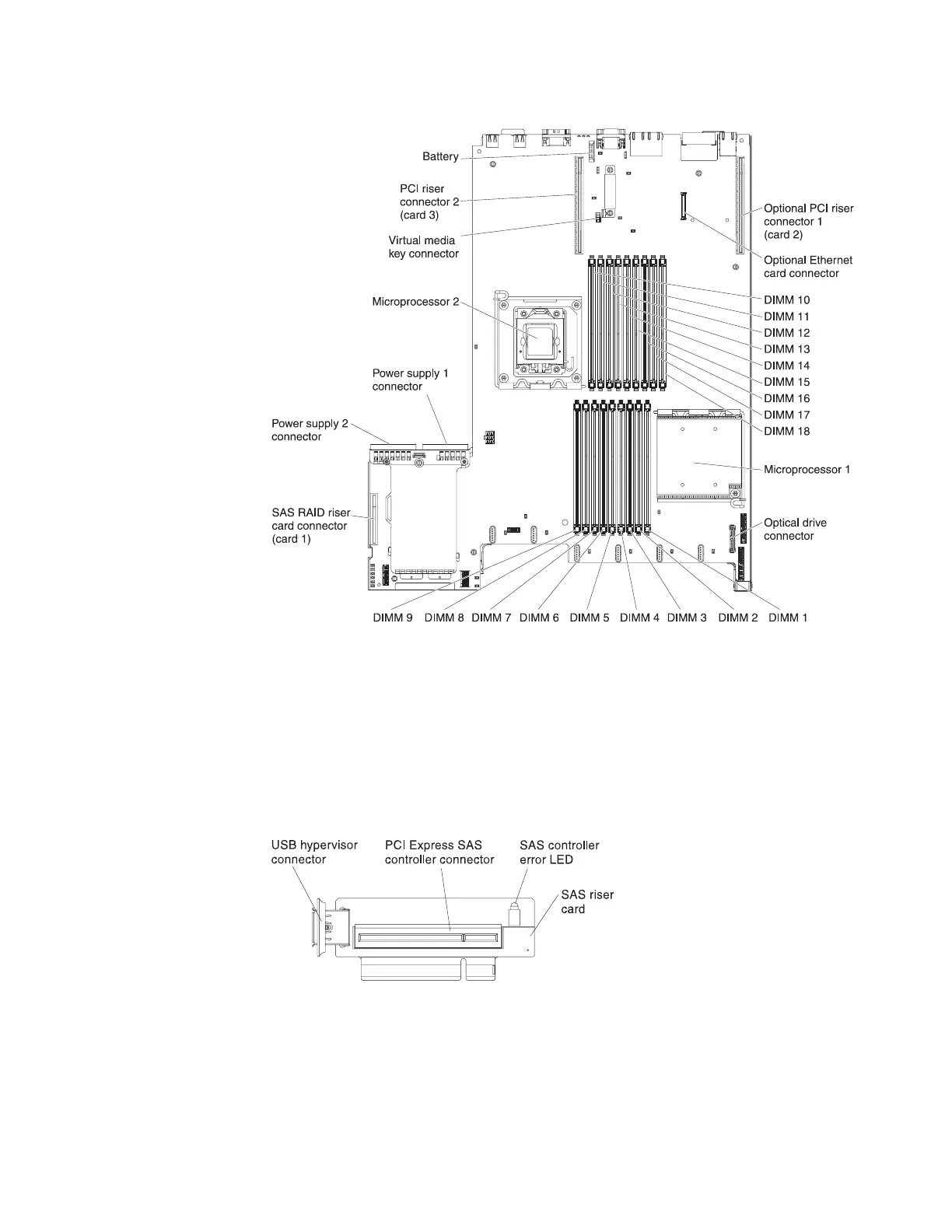

Figure 18. System-board optional device connectors
Figure 19. SAS riser-card connectors and LEDs
Chapter 2. Installing optional devices 35

IBM x3650 M3 Specifications

General

Memory	Up to 192 GB DDR3
Memory Slots	18 DIMM slots
Form Factor	2U Rack
Processor	Intel Xeon 5600 series
Storage	SAS/SATA drives
Network Interface	Gigabit Ethernet ports
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
RAID Support	IBM ServeRAID options available
