PCI
riser-card
adapter
connectors

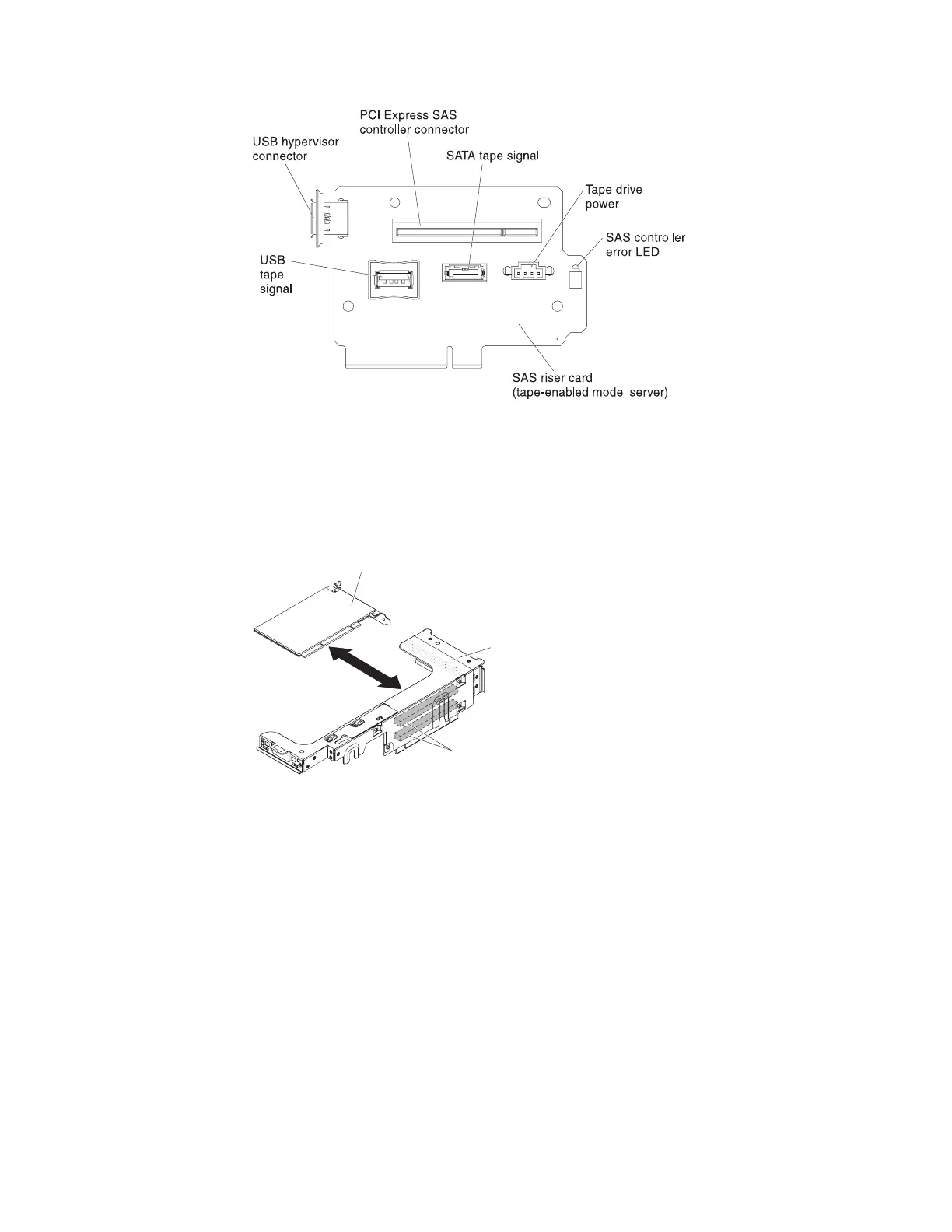

The
following
illustration
shows
the
connectors
on
the
PCI
riser
card
for
user-installable
PCI
adapters.
Figure
20.
The
riser
card
PCI
riser-card
assembly
Adapter
Adapter
connectors
Figure
21.
PCI
riser-card
adapter
connectors
36
System
x3650
M3
T
ypes
4255,
7945,
and
7949:
Installation
and
User
’s
Guide
49
51
