a. Remove the SAS controller front retention bracket from the server.
b. Remove the rear controller retention bracket located in the battery bay
above the power supplies by pulling up the release tab 1 and sliding
the bracket outward 2.

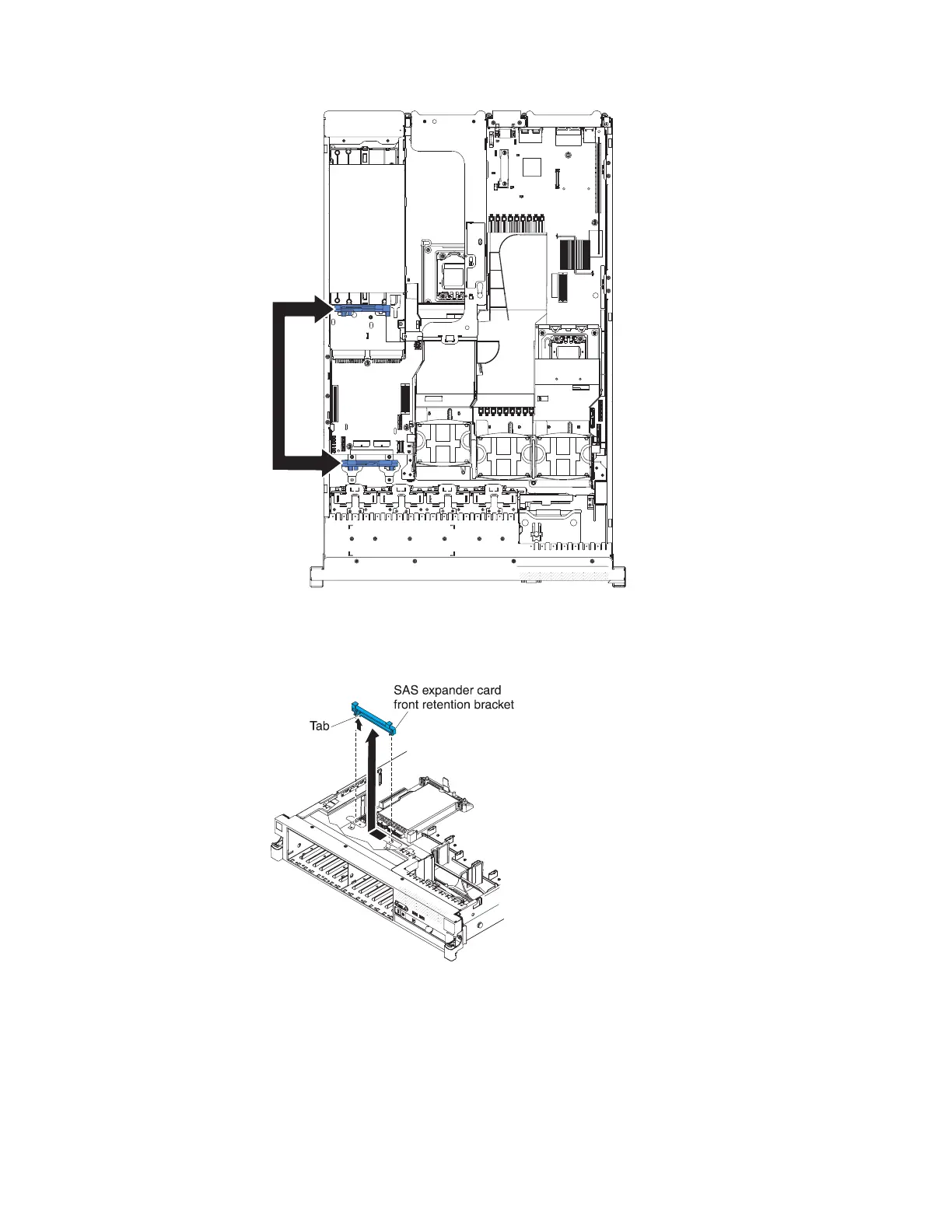

Figure 134. Controller retention brackets
Figure 135. SAS controller front retention bracket removal
Chapter 2. Installing optional devices 131
