IBM x3650 M3 User Manual

9. Install the ServeRAID controller on the riser card (see “Installing a PCI
adapter” on page 53).
10. Install the PCI riser-card assembly in the server (see “Installing a PCI
riser-card assembly” on page 47).
11. Connect the remote battery cable to the battery carrier.
Attention: To avoid damage to the hardware, make sure that you align the
black dot on the cable connector with the black dot on the connector on the
interposer card. Do not force the remote battery cable into the connector.
12. Install the battery on the remote battery tray:
a. Connect the battery carrier cable to the battery, if it is not already
connected.
b. On the remote battery tray, find the pattern of recessed rings that matches
the posts on the battery and battery carrier.

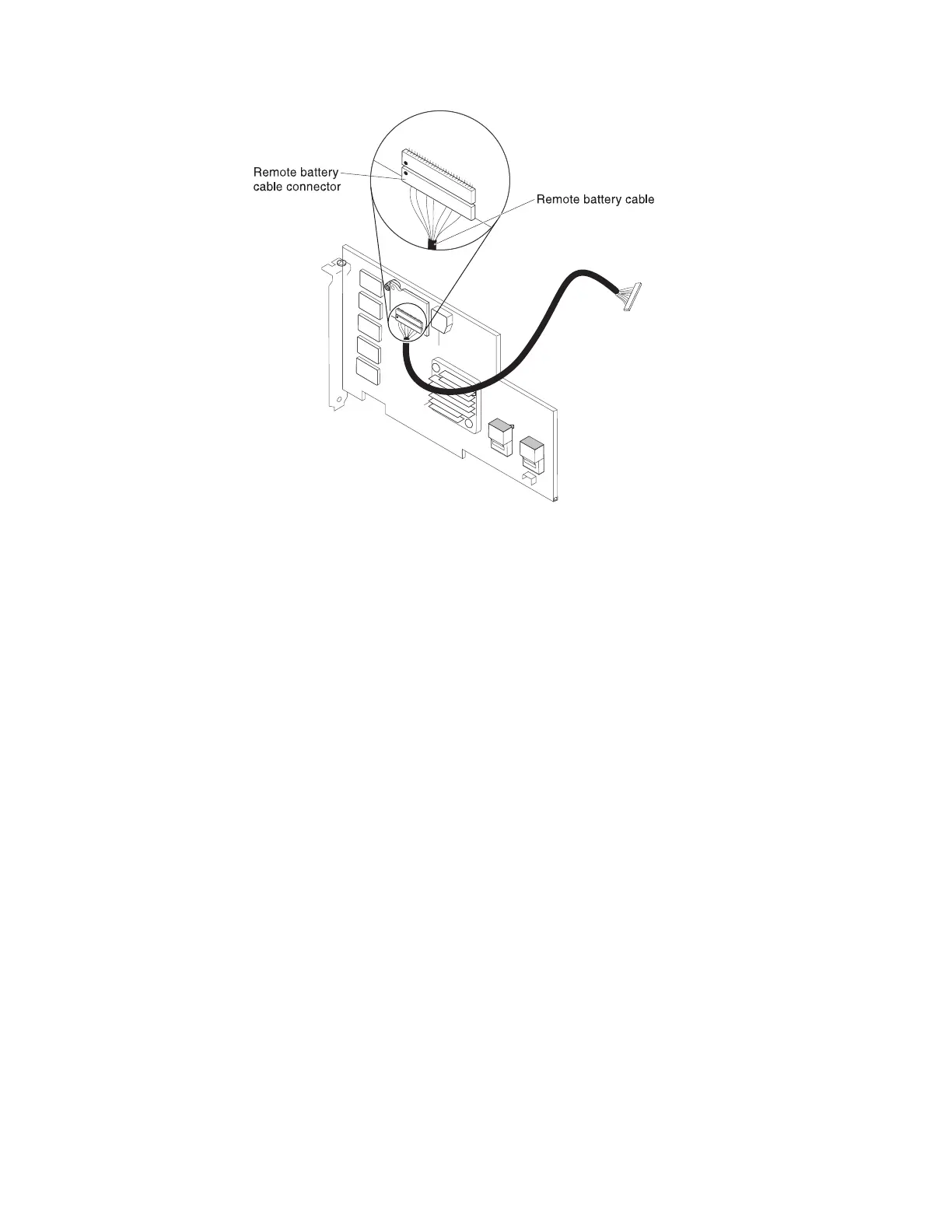

Figure 148. Connecting remote battery cable
142 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide

IBM x3650 M3 Specifications

General

Memory	Up to 192 GB DDR3
Memory Slots	18 DIMM slots
Form Factor	2U Rack
Processor	Intel Xeon 5600 series
Storage	SAS/SATA drives
Network Interface	Gigabit Ethernet ports
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi
RAID Support	IBM ServeRAID options available
