5. Remove the retention bracket from the current location:
a. Pinch the bottoms of both bracket posts and push the posts up out of the
SAS riser-card assembly.
b. Rotate the bracket to free the bracket tab from the slot on the SAS riser-card
assembly.
6. Install the retention bracket in the new location on the SAS riser-card assembly:
a. Insert the bracket tab into the slot on the SAS riser-card assembly.
b. Rotate the bracket so that the bracket posts align with the holes in the SAS
riser-card assembly.

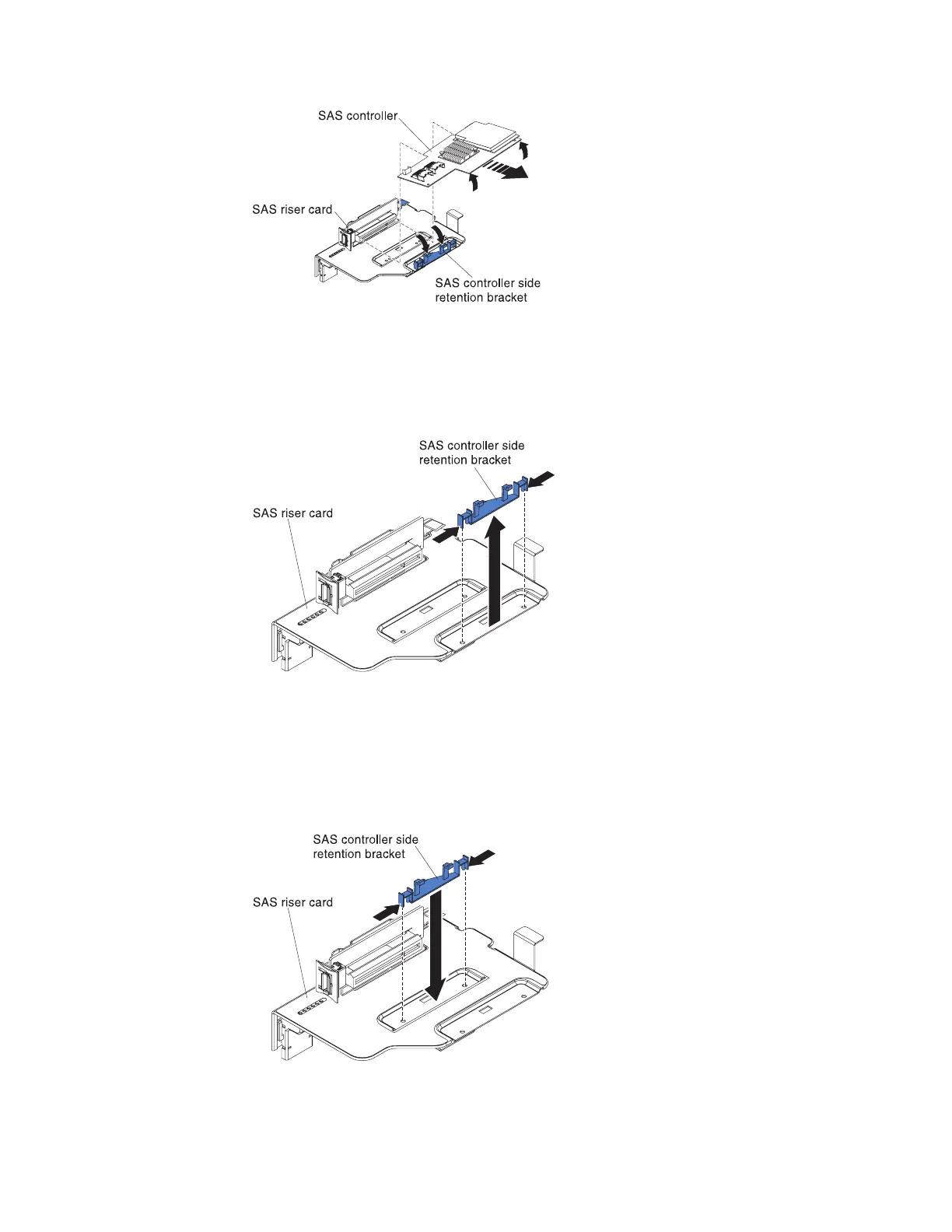

Figure 152. ServeRAID controller removal
Figure 153. Retention bracket removal
Figure 154. Retention bracket removal
146 System x3650 M3 Types 4255, 7945, and 7949: Installation and User’s Guide
