The SATA cable is a combination power and signal cable with a shared connector
on both ends. The following illustration shows the internal routing and connector
for the SATA cable.
Attention: To disconnect the optional optical drive cable, you must first press the
connector release tab, and then disconnect the cable from the connector on the
system board. Do not disconnect the cable by using excessive force. Failing to
disconnect the cable properly may damage the connector on the system board. Any
damage to the connector may require replacing the system board.

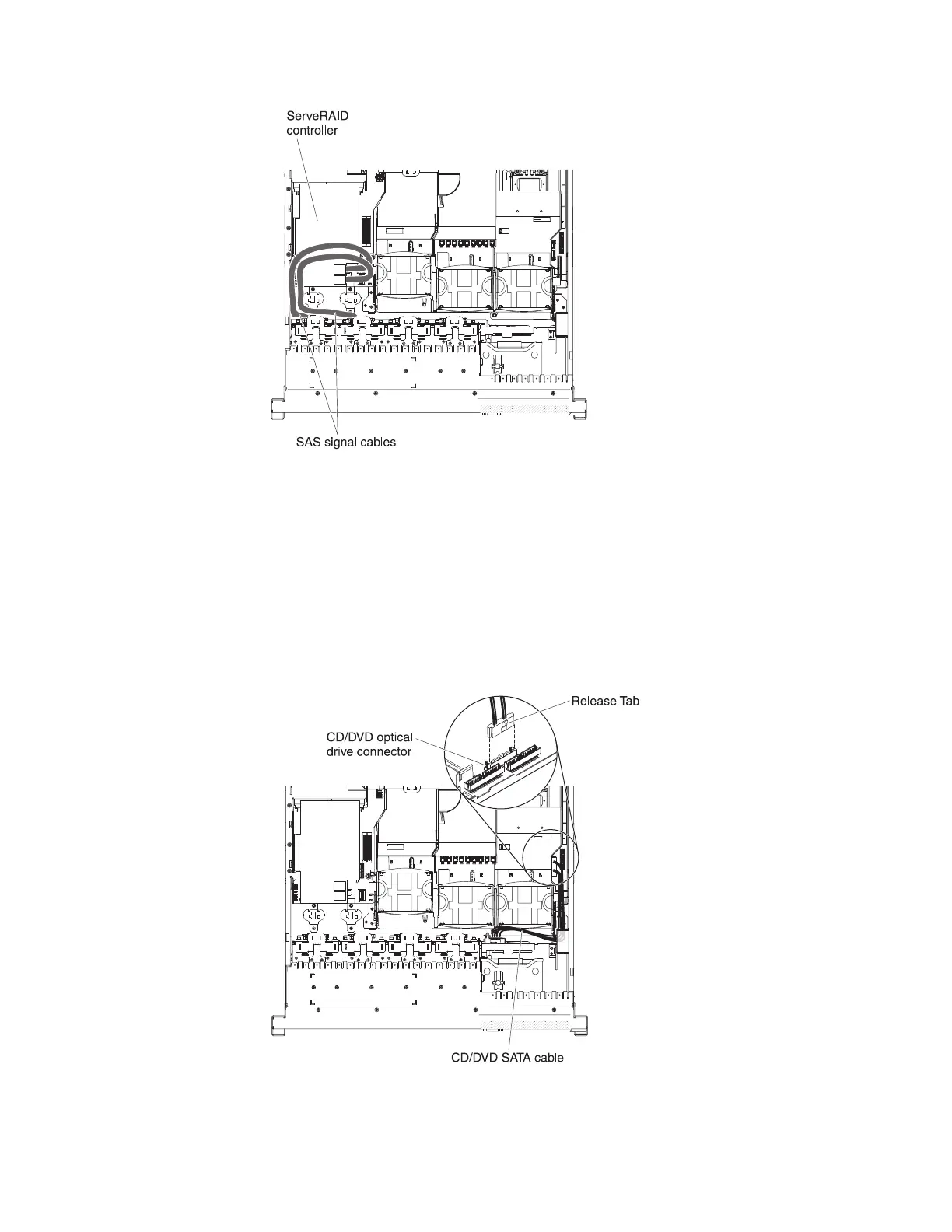

Figure 23. SAS signal cables
Figure 24. Disconnecting the optional optical drive cable
Chapter 2. Installing optional devices 41
