9. Remove the SAS controller front retention bracket from the server.
10. Connect one end of the internal power cable that comes with the 4 Pac HDD
upgrade option kit into the hot-swap SAS/SATA power connector on the
system board.

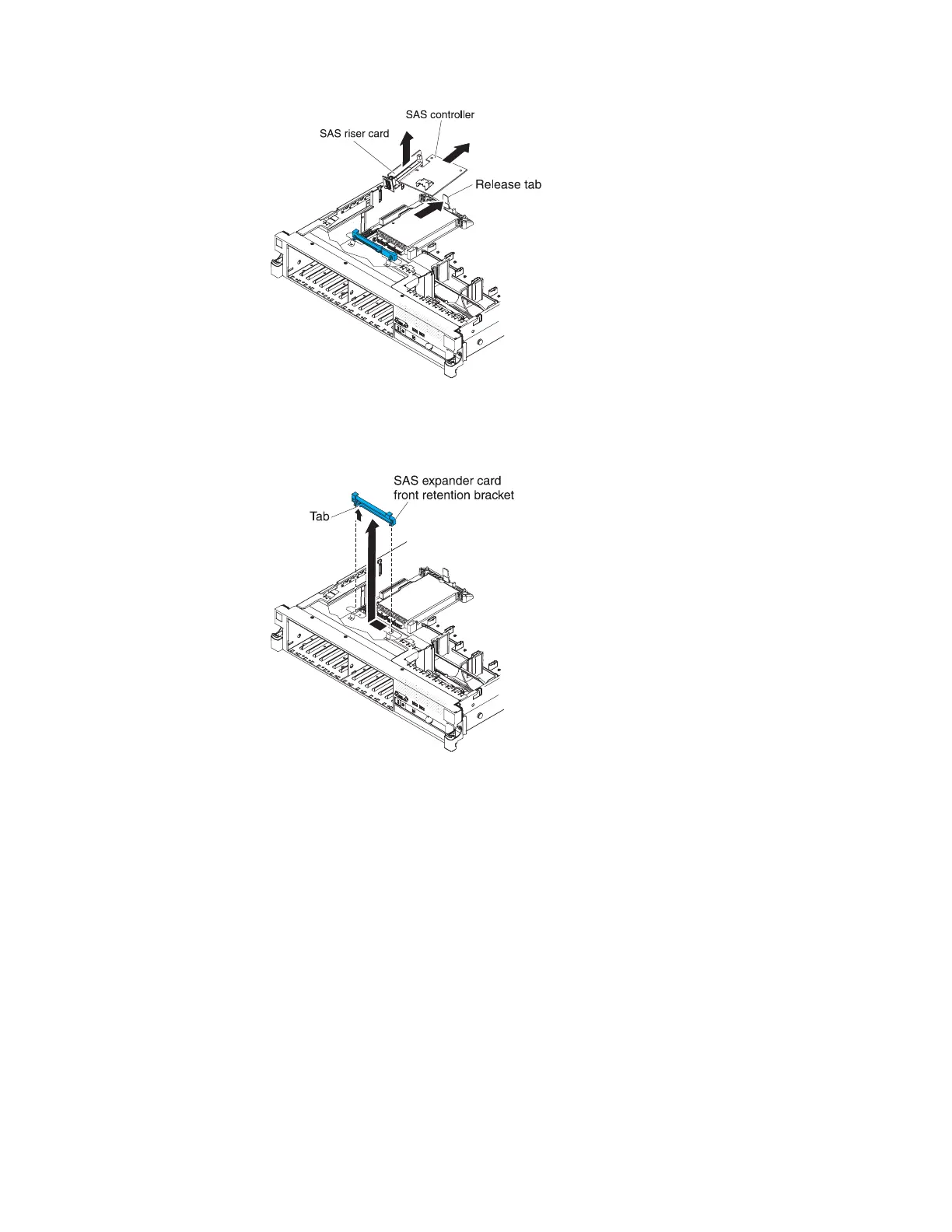

Figure 53. SAS controller removal
Figure 54. SAS controller front retention bracket removal
Chapter 2. Installing optional devices 67
