icam FT6 - Page 9

8

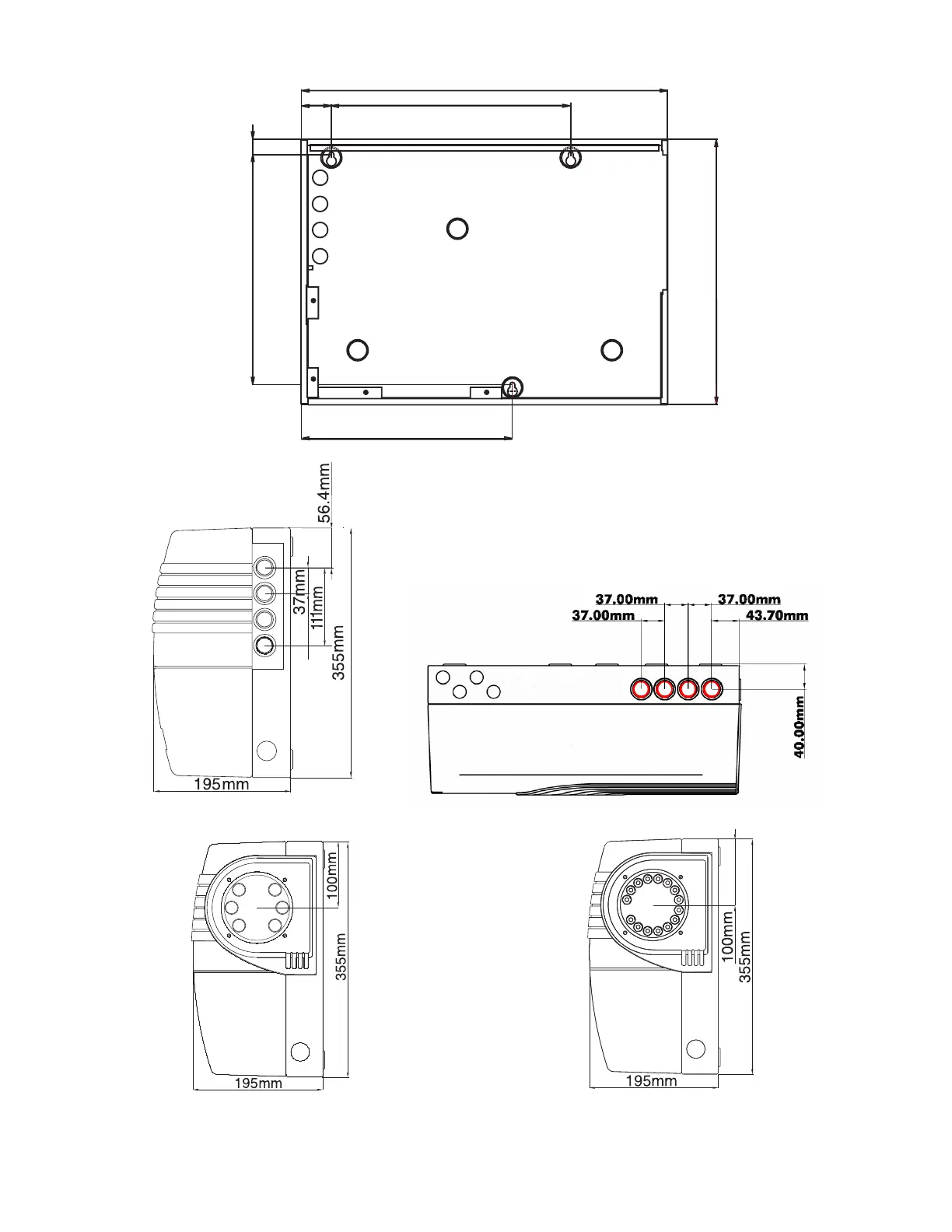

FT 1/4/6/8/15 Fixings
308.00
308.00±
0.30mm
0.30mm
(355.00
(355.00±
0.40mm)
0.40mm)
(20.40mm)
(20.40mm)
40.00
40.00±
0.10mm
0.10mm
320.00
320.00±
0.30mm
0.30mm
(490.00
(490.00±
0.50mm)
0.50mm)
282.00
282.00±
0.25mm
0.25mm
FT1
Horizontal and vertical configurations
FT8/15
FT4/6
