icam FT6 - 3.5.4 2 Extinguisher Module Setup

33

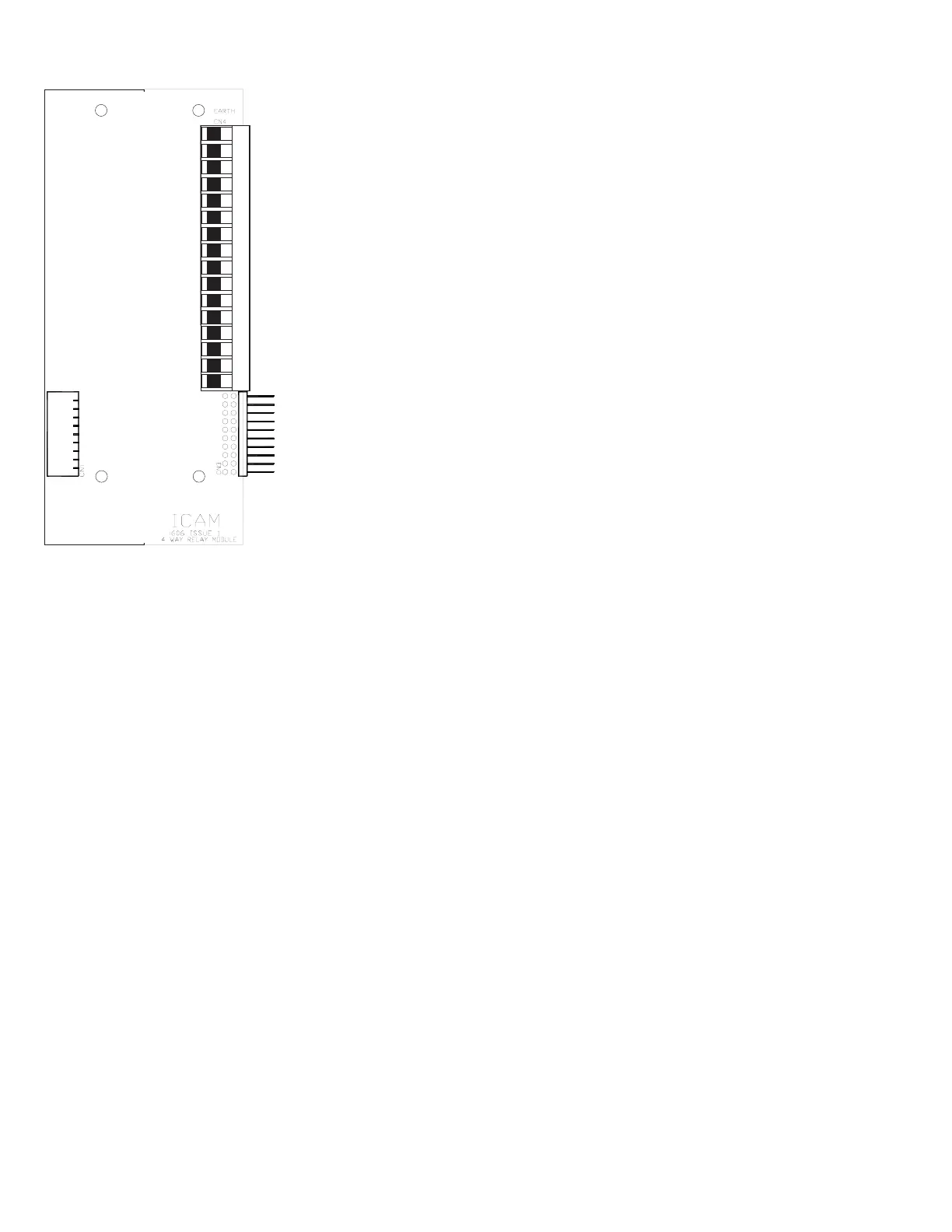

3.5.4 2 Extinguisher Module
Solenoid 1
+
-
+
-
+
-
+
-
+
-
+
-
+
-
+
-
Solenoid 2
Alarm 1
Alarm 2
Pressure
Switch 1
Pressure
Switch 1
Call point 1
Call point 2
SETUP Set to SUPPR 2 12
CONFIGURE
Designed to release extinguisher gas and operate alarm relays. It also
has 2 manual call point inputs, and 2 pressure switch inputs. Relay coil
and contact monitoring is standard.
Solenoid release outputs 2 (fused at 2 Amps)
Alarm relay outputs 2 (fused at 2 Amps)
Pressure switch inputs 2 (End of line resistance
monitored. Actual value
configurable)
Open Circuit voltage 12 volts
Short circuit current 2mA
Call point inputs 2 (End of line resistance
monitored. Actual value
configurable)
Open Circuit voltage 24 volts
Short circuit current 65mA
