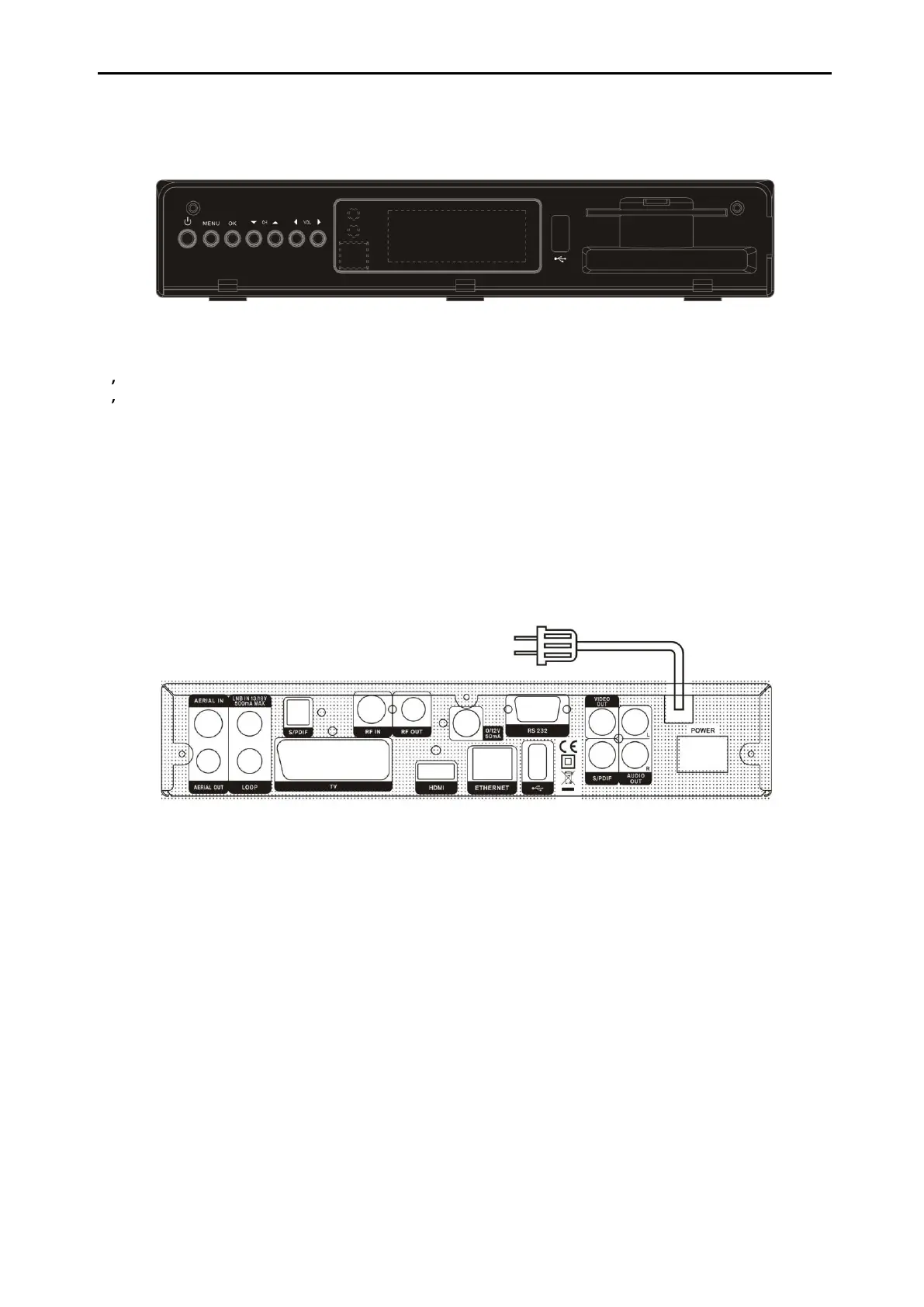

5. Front panel
POWER KEY: To switch the receiver power on/stand by.
MENU KEY：To enter the Main Menu.
◄ ► KEY: To adjust volume level, or to move cursor left or right in the menu.
▲ ▼ KEY: To change channels, or to move cursor up or down in the menu.
OK KEY: To see TV/Radio channel list, or to confirm in the menu.
Remote Sensor: Detects infrared signal from remote control unit.
POWER Indicator: Lit whilst the receiver is powered on and at standby mode.
Signal Indicator: When received signal is strong, the signal indicator is lit.
Card Slot: One slot CA Interface for Conax.
Common Interface: One socket for Conditional Access Modules CAM.
USB: USB 2.0 Host, connect to USB hard disk, or flash disk.
Display: (VFD type) Indicates operating status of receiver.
6. Rear Panel
Please refer to the diagram above for all possible connections of your receiver
Do not connect the unit to the mains socket until all other connections have been made and checked.
POWER ON/OFF SWITCH: To switch ON/OFF the receiver power supply.
LOOP: This enables the connection of another receiver.
LNB IN 13/18V 500mA MAX: This port is to connect the coaxial cable from LNB of your Dish.
RF OUT: This enables the connection of another receiver.
RF IN: This port is to connect the coaxial cable from Terrestrial/Cable Antenna.
AERIAL OUT: This enables the connection of another receiver.
AERIAL IN: This port is to connect the signal cable from Terrestrial/Cable Antenna.
TV: This is used to connect your TV through SCART cable.
VIDEO: This RCA connector is used to connect any external video.
AUDIO R/L: These RCA connectors are used to connect any external audio amp or system.
0/12V 50mA: This is used to connect 12V to an external 0V/12V switch.
S/PDIF: Digital Audio interface, connect to AV amplifier S/PDIF input terminal.
RS 232C SERIAL PORT: This is used to connect your receiver to a computer through a serial cable.
HDMI: Audio and Video output socket for TV set with HDMI Input Jack only.
USB: USB 2.0 Host, connect to USB hard disk, or flash disk
Ethernet: Network port, you can get a new software updates from this port.
