MAINTENANCE
2001 NEW

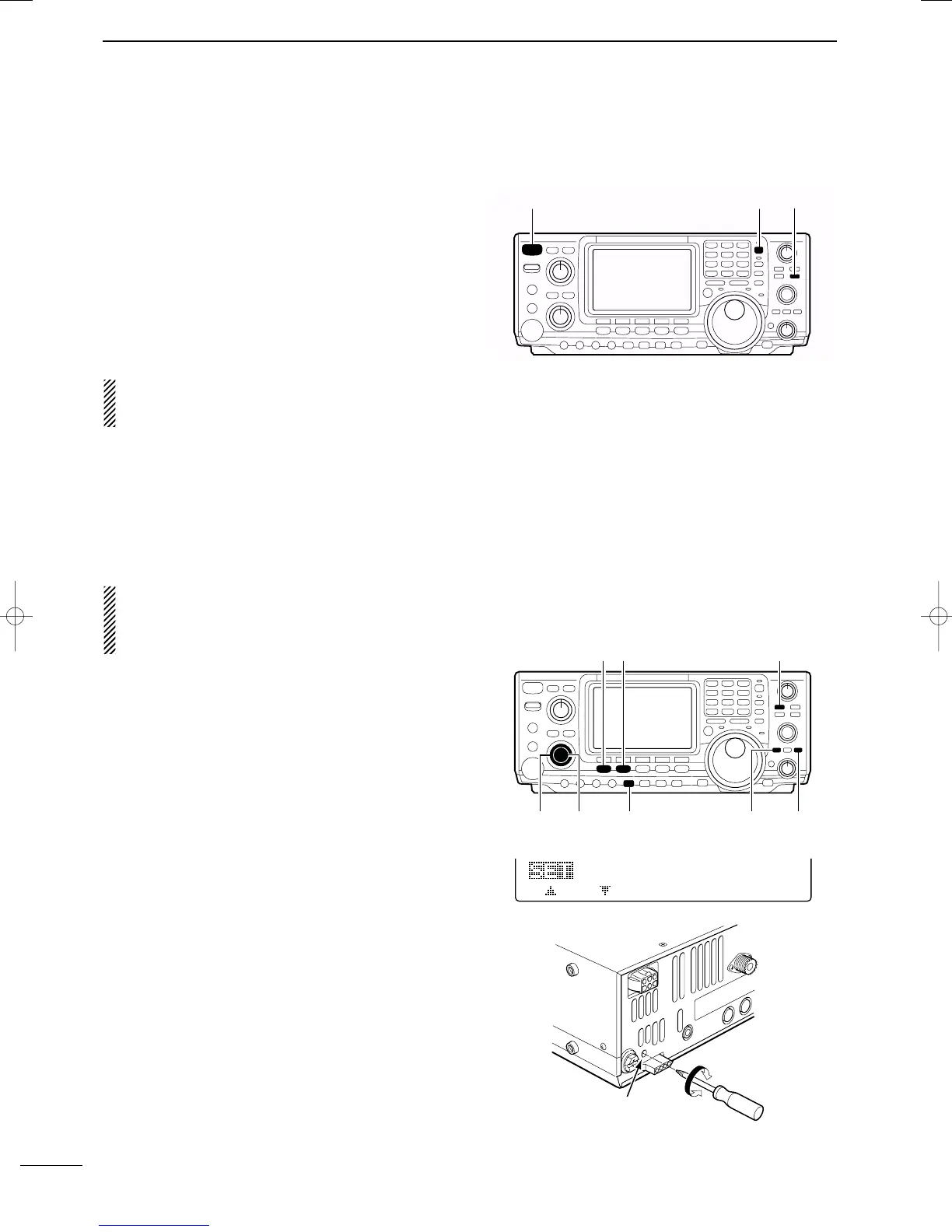

■ Resetting the CPU
When first applying power or when the function does
not seem to be operating normally, reset the CPU as
follows:
q Make sure the transceiver power is OFF.
w While pushing [M-CL] and [F-INP], push [POWER]
for 1 sec. to turn power ON.
• The internal CPU is reset.
•The transceiver displays its initial VFO frequency when
resetting is complete.
e Correct the set mode settings after resetting, if de-
sired.
NOTE: Resetting CLEARS all programmed con-
tents in memory channels and returns programmed
values in set mode to default values.
■ Frequency calibration (approximate)
A very accurate frequency counter is required to cali-
brate the frequency of the transceiver. However, a
rough check may be performed by receiving radio sta-
tion WWV, or other standard frequency signals.
CAUTION: Your transceiver has been thoroughly
adjusted and checked at the factory before being
shipped. You should not calibrate frequencies, ex-
cept for special reasons.
q Push [SSB] to select USB mode.
w Push [PBTC] for 1 sec. to clear the PBT settings
and make sure that the RIT/∂TX function is not ac-
tivated.
e Set the frequency to the standard frequency station
minus 1 kHz.
•
When receiving WWV (10.000.00 MHz) as a standard
frequency, set the operating frequency for 9.999.00 MHz.
• Other standard frequencies can also be used.
r Push [MENU] several times to select M1 or M2, if
necessary.
t Push [MENU] for 1 sec. to select the set mode
screen.
y Push [F1 ≤] or [F2 ≥] several times to select the
CAL. Marker item.
u Rotate the tuning dial clockwise to turn the calibra-
tion marker ON.
• Side tone may be heard.
i Adjust [CAL] pot on the rear side of the transceiver
for a zero beat with the received standard signal.
•Zero beat means that two signals are exactly the same
frequency, resulting in a single tone being emitted.
o Rotate the tuning dial counterclockwise to turn the
calibration marker OFF.
!0 Push [MENU] to exit set mode.
CAL.
Marker
5
ON
[SSB][MENU] [PBTC]
[RF/SQL] [AF] [P.AMP/ATT] [CLEAR][RIT]
[CAL]
• Calibration marker item
