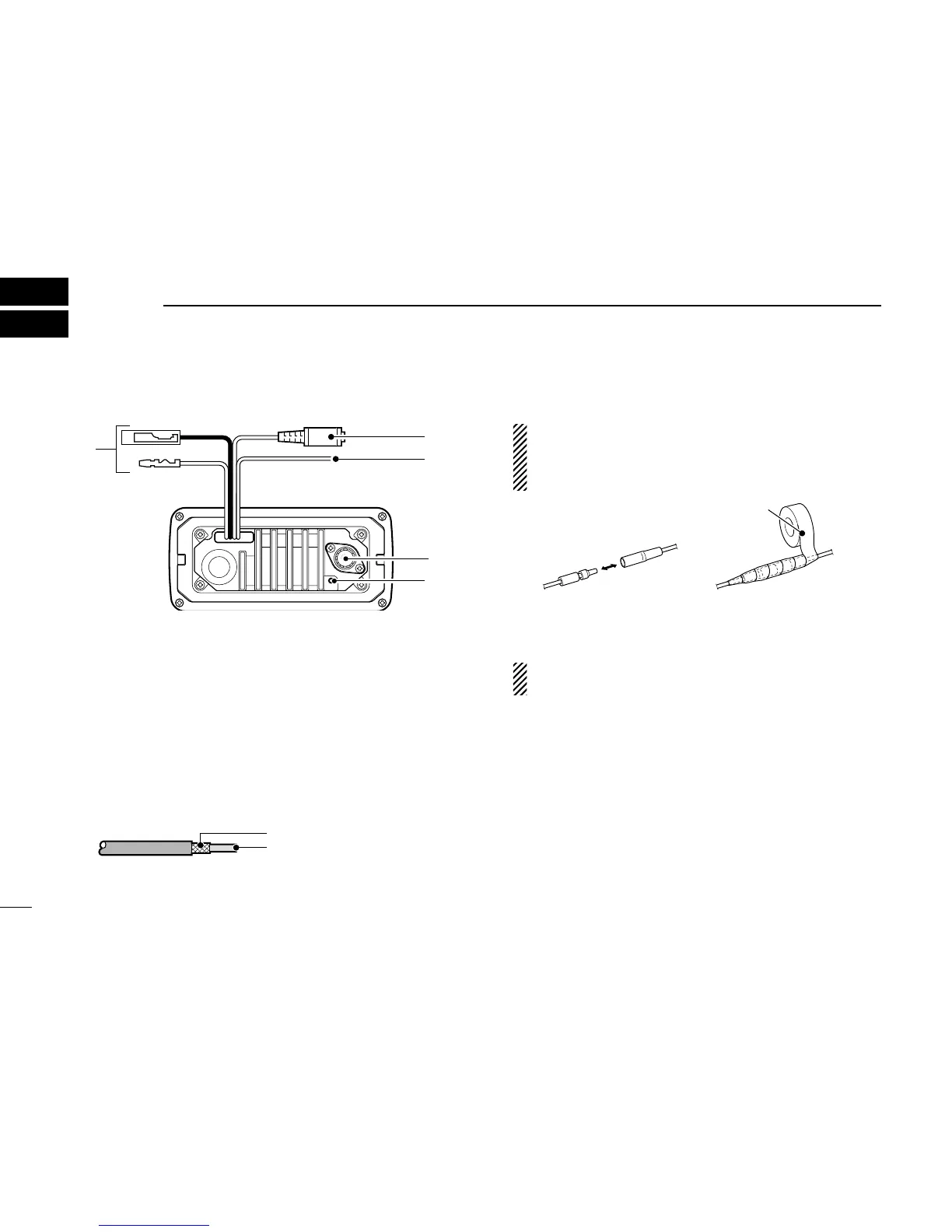

q DC POWER CONNECTOR
Connects the supplied DC power cable from this connec
-
tor to an external 13.8 V battery.
w EXTERNAL SPEAKER JACK
Connects to an external speaker.
e GPS RECEIVER JACK
Connects to a GPS receiver for position indication.
• A NMEA0183 ver. 2.0 or 3.01 (sentence formatters RMC, GGA,
GNS, GLL) compatible GPS receiver is required. Ask your
dealer about suitable GPS receivers.
Inner conductor
Outer conductor
: NMEA (+)
: NMEA (–)
CAUTION: After connecting the DC power cable, GPS
receiver jack and external speaker jack, cover the con
-
nector and jacks with an adhesive tape as shown
below, to prevent water seeping into the transceiver.
r ANTENNA CONNECTOR
Connects a marine VHF antenna with a PL-259 connec
-
tor to the transceiver.
CAUTION: Transmitting without an antenna may dam-
age the transceiver.
t GROUND TERMINAL
Connect this terminal to a vessel ground to prevent elec
-
trical shocks and interference from other equipment oc
-
curring. Use a PH M3 × 6 mm screw (not supplied).
42
New2001
CONNECTIONS AND MAINTENANCE
