MAIN AIR CUTOFF INSTALLATION
C
THE INFORMATION
CONTAINED IN THIS
DRAWING IS THE SOLE
PROPERTY OF I D
TECHNOLOGY.
REPRODUCTION IN PART OR
WHOLE WITHOUT THE
WRITTEN PERMISSION OF ID
TECHNOLOGY IS
PROHIBITED.

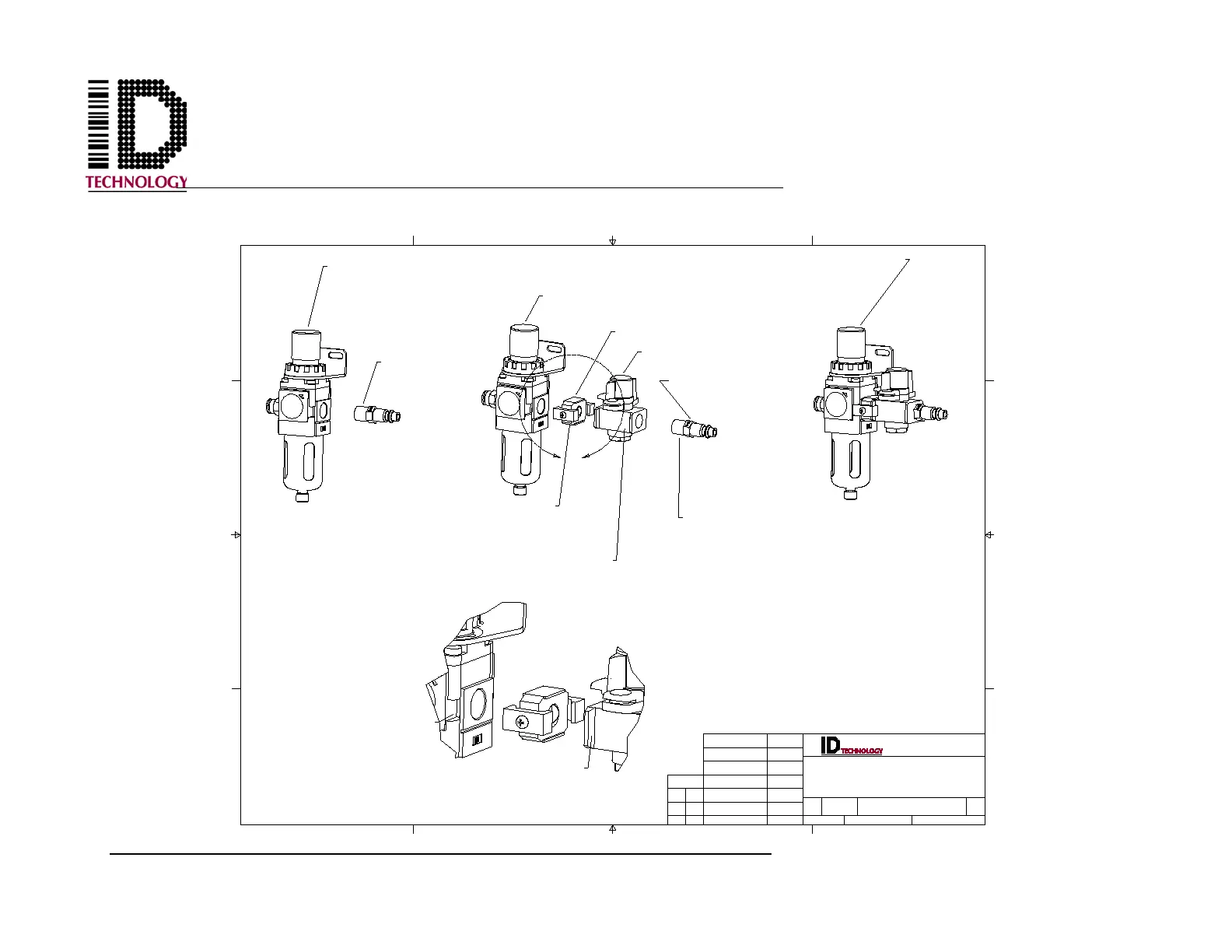

COMPLETED ASSEMBLY OF THE FILTER
REGULATOR AND THE AIR CUTOFF ASSEMBLY.
QUICK DISCONNECT FITTING
AIR CUTOFF VALVE
SPACER CLAMP
2)
REPLACE THE QUICK DISCONNECT FITTING WITH
THE SPACER CLAMP. THE SPACER CLAMP ATTACHES TO
GROOVES IN THE FILTER REGULATOR BODY. (SHOWN BELOW)
FILTER REGULATOR ASSEMBLY
EXISTING FILTER REGULATOR ASSEMBLY 62120
1)
REMOVE QUICK
DISCONNECT FITTING.
A
DETAIL A
SPACER CLAMPS HERE ON THE
FILTER REGULATOR. (BOTH SIDES)
SPACER CLAMPS HERE ON THE
AIR CUTOFF VALVE. (BOTH SIDES)
3)
ATTACH THE AIR CUTOFF VALVE
TO THE SPACER CLAMP. (SHOWN BELOW)
4)
APPLY THREAD TAPE TO THE THREADS ON
THE QUICK DISCONNECT FITTING. THREAD THE
FITTING INTO THE AIR CUTOFF VALVE.
