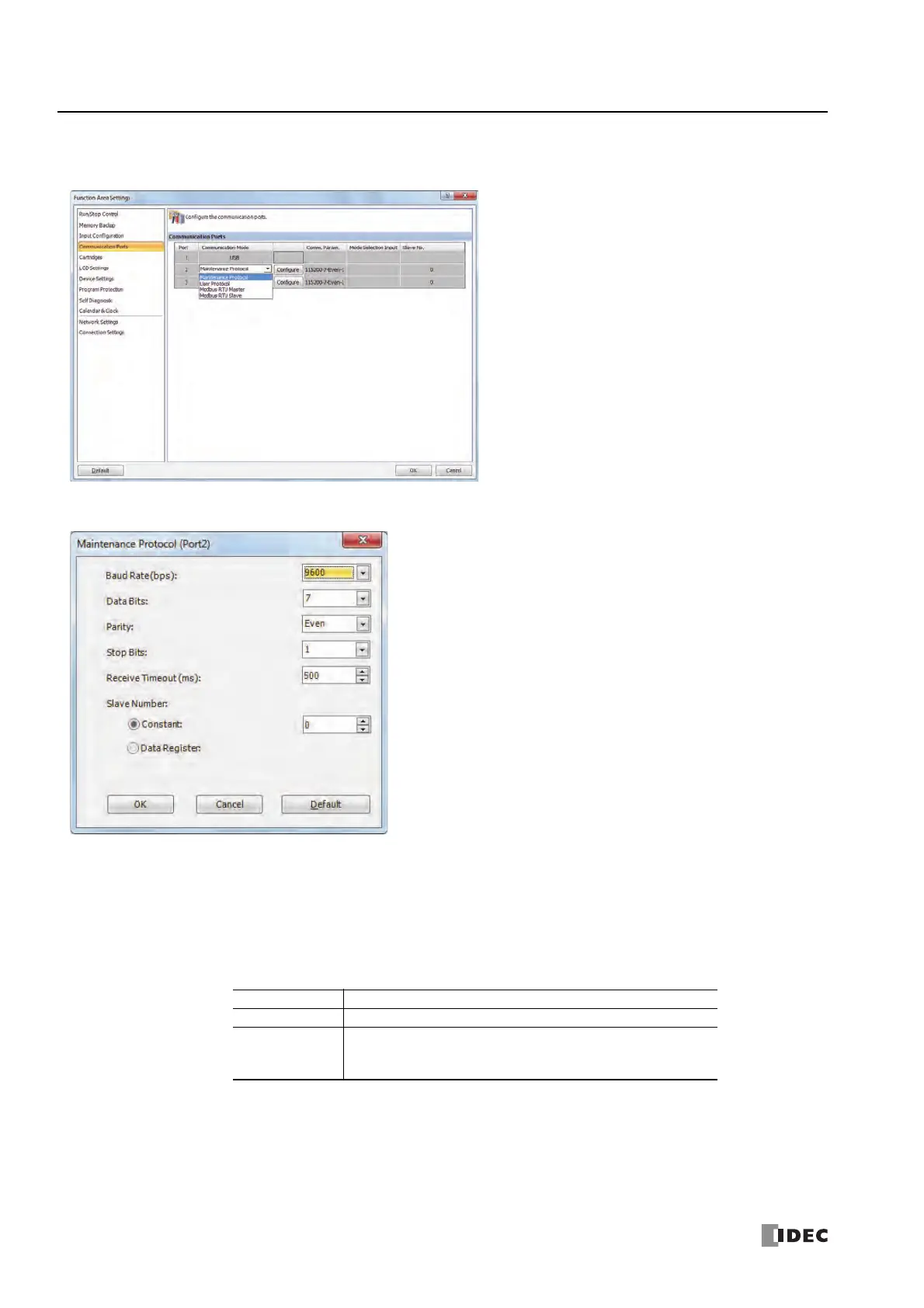

2. In the Communication Mode pull-down list for Port 2, select Maintenance Protocol.
The Maintenance Communication (Port 2) dialog box appears.
3. Configure the parameters to match the communication settings of the computer or operator interface.
Notes:
• Values not in parentheses are the default settings.
• The following configuration cannot be selected: Data Bits: 7, Parity: None
4. Click OK.
Configuring the maintenance communication for the expansion communication port is now complete.
Baud Rate (bps): 115200bps (1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200)
Data Bits: 7 (7 or 8)
Parity: Even (None, Even, Odd)
Stop Bits: 1 (1 or 2)
Receive Timeout (ms): 500 (10 to 2550)
Slave Number 0 (0 to 31)
Slave number can be specified by either a constant or a data register.
Type Details
Constant Set within the range of 0 to 31
Data register
Store the slave numbers 0 to 31 in the following special data registers
Port 2: D8027
Port 3: D8028
