3: I NSTALLATION AND W IRING
Terminal Connection
This section describes types of terminals and how to use them.
When connecting stranded wire or multiple solid wires to a terminal block, use appropriate ferrule for the terminal block.
Terminals for Terminal Blocks
Crimp ferrules using an appropriate tool according to the size of ferrules. Cut the end of the wire to the same length or about 0.5
mm longer than the ferrule.
Ensure that the core wire does not protrude at the end of the shield and there are no whiskers.
Ferrules
The ferrules and crimping tools below can be used.
Type numbers of the ferrules and crimping tool are the type numbers of Phoenix Contact.
Crimping Tool Order No.
Ferrule Order No.
Quantity of Cables Cable Size Phoenix Type Order No. Pcs./Pkt.
For 1-wire connection
UL1007 AWG16 AI 1,5-8 BK 32 00 04 3 100
UL1007 AWG18 AI 1-8 RD 32 00 03 0 100
UL1015 AWG22 AI 0,5-8 WH 32 00 01 4 100
UL2464 AWG24 AI 0,25-8 YE 32 03 03 7 100
For 2-wire connection
UL1007 AWG18 AI-TWIN 2 x 0,75-8 GY 32 00 80 7 100
UL1015 AWG22 AI-TWIN 2 x 0,5-8 WH 32 00 93 3 100
Tool Name Phoenix Type Order No. Pcs./Pkt.
Crimping Tool CRIMPFOX ZA 3 12 01 88 2 1
• Do not touch live terminals, otherwise electrical shocks may be caused.
• When the power is on, terminals to which external devices are connected may be heated. Do not touch terminals
immediately after the power is turned off.
• Do not touch terminals immediately after the power is turned off, otherwise electrical shocks may be caused.
• When connecting a stranded wire or multiple solid wires to a screw terminal block, use a ferrule. Otherwise the wire
may slip off the screw terminal block.
• When using ferrules, insert a wire to the bottom of the ferrule and crimp the ferrule.
Caution

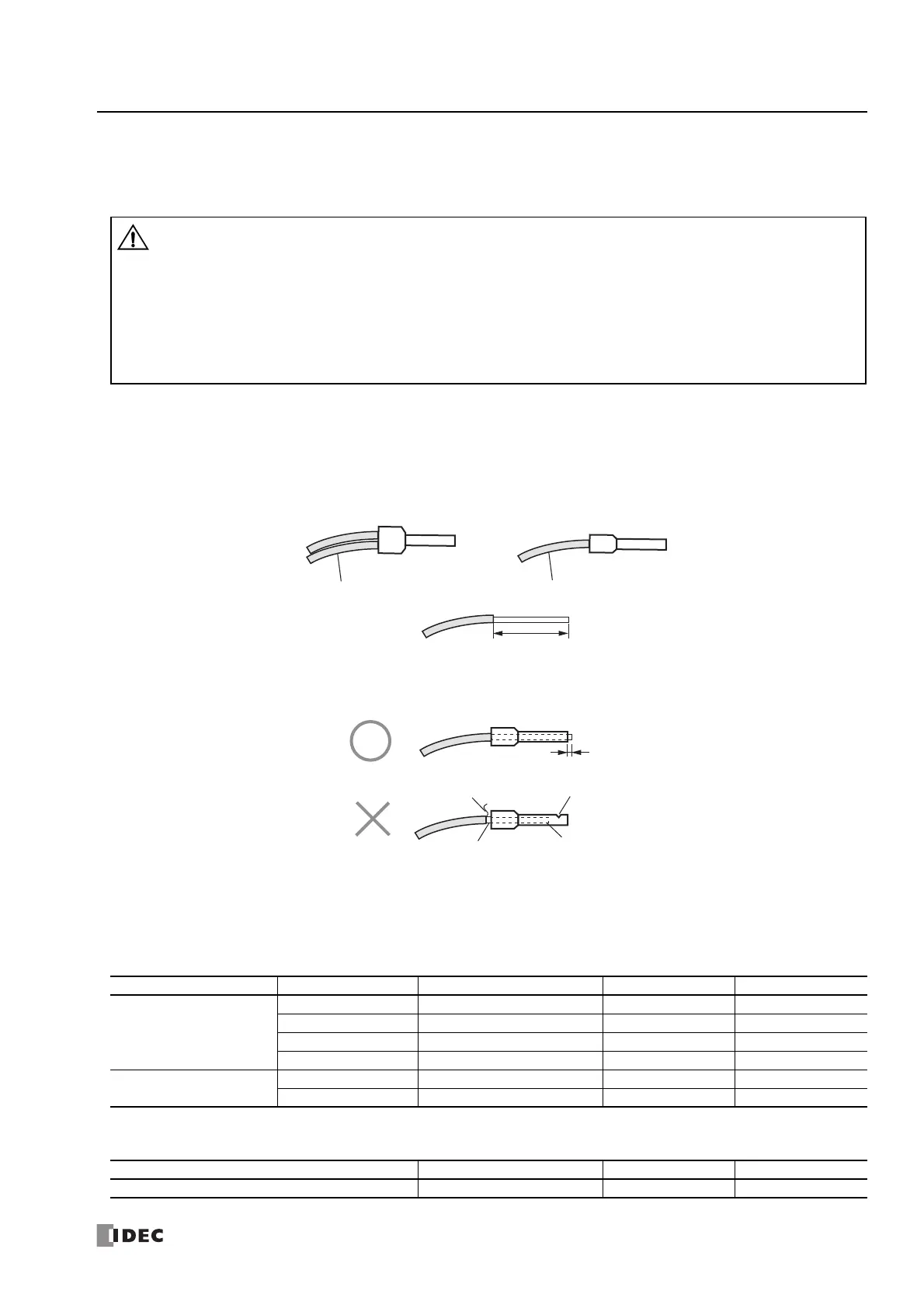

0 to 0.5 mm
Damage
Whisker
Correct
Stripped wire is too short
Core wire is visible
2-wire connection
10 to 11 mm
Length of stripped wire
1-wire connection
Cable (AWG 22 to 18)
Cable (AWG 24 to 18)
Single Wire: AWG 16 to 12 (UL)
Stranded Wire: AWG 12 to 14 (JIS)
