9: M AINTENANCE C OMMUNICATION
Maintenance Communication via Expansion Communication Port
Applicable SmartAXIS
By installing an RS232C or RS485 communication cartridge to a expansion communication port on the SmartAXIS, it is possible to
connect SmartAXIS to a computer or an operator interface with an RS232C or RS485 port, and monitor and change device values
of SmartAXIS.
For details on communication cables, see "Cables" on page A-8.
Maintenance Communication Specifications for Expansion Communication Ports
Note: Use shielded twisted-pair cables.
See the following pages for details on the maintenance communication function:
• Monitor/change device values: "Monitor Operation" on page 4-15
Programming WindLDR
Configure the settings for maintenance communication.
Setting Procedure
1. From the WindLDR menu bar, select Configuration > Comm. Ports.
The Function Area Settings dialog box appears.

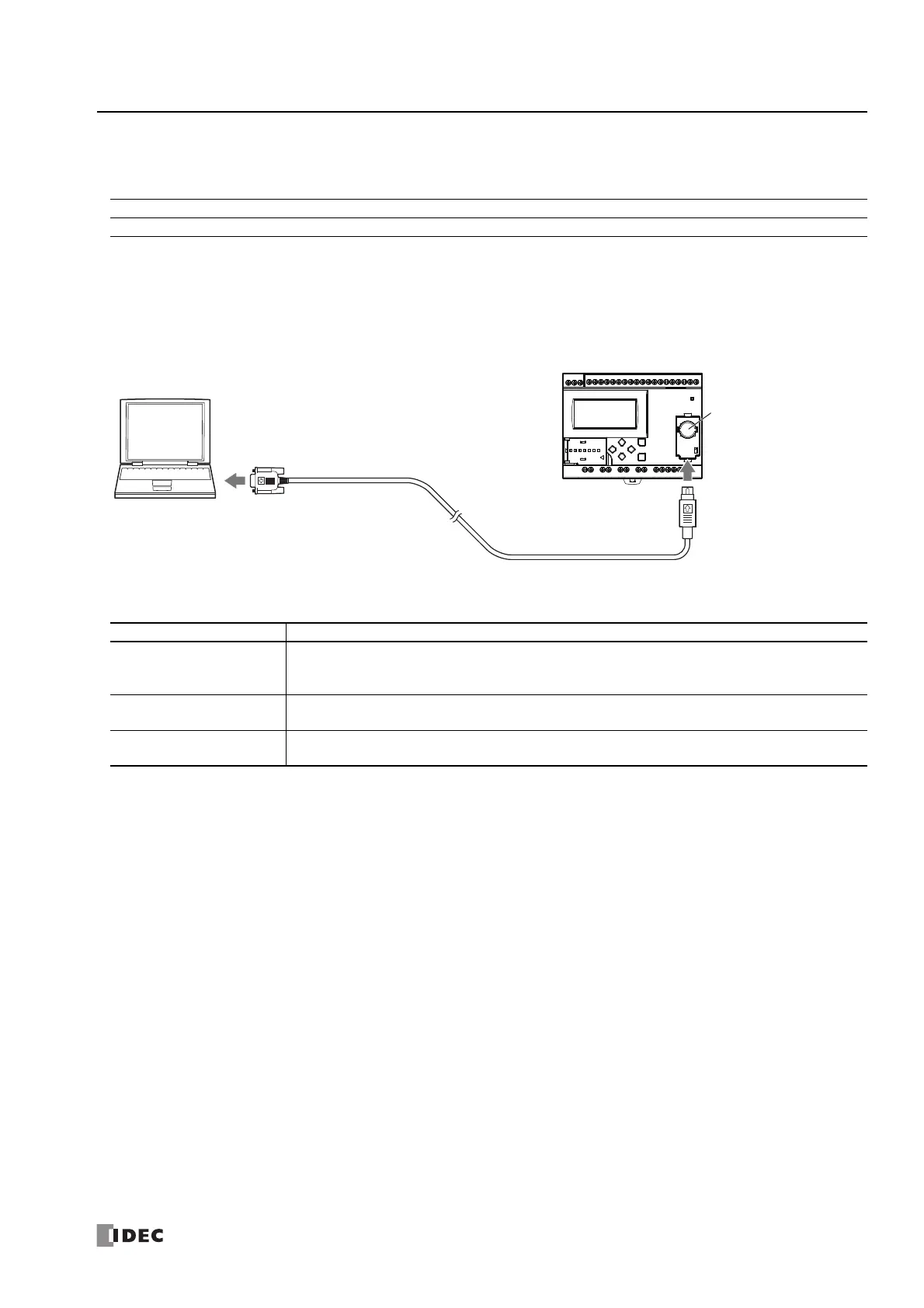

FT1A-12 FT1A-24 FT1A-40 FT1A-48
— X (Port 2) X (Port 2 and 3) X (Port 2 and 3)
Computer
Serial Communication Port
(RS232C/RS485)
Connection Cable
SmartAXIS
Expansion
Communication Port
Item Specifications/Functions
Communication cartridge
FT1A-PC1: RS232C communication cartridge (Mini DIN type)
FT1A-PC2: RS485 communication cartridge (Mini DIN type)
FT1A-PC3: RS485 communication cartridge (Terminal block type) (Note)
Cable
FC2A-KC4C: RS232C communication cable (Mini DIN type)
FC2A-KP1C: RS485 communication cable (Mini DIN type)
Maintenance communication
functions
Monitoring/changing device values
