Cables
Communication cables and their connector pinouts are described in this section.
Communication Port and Applicable Cables

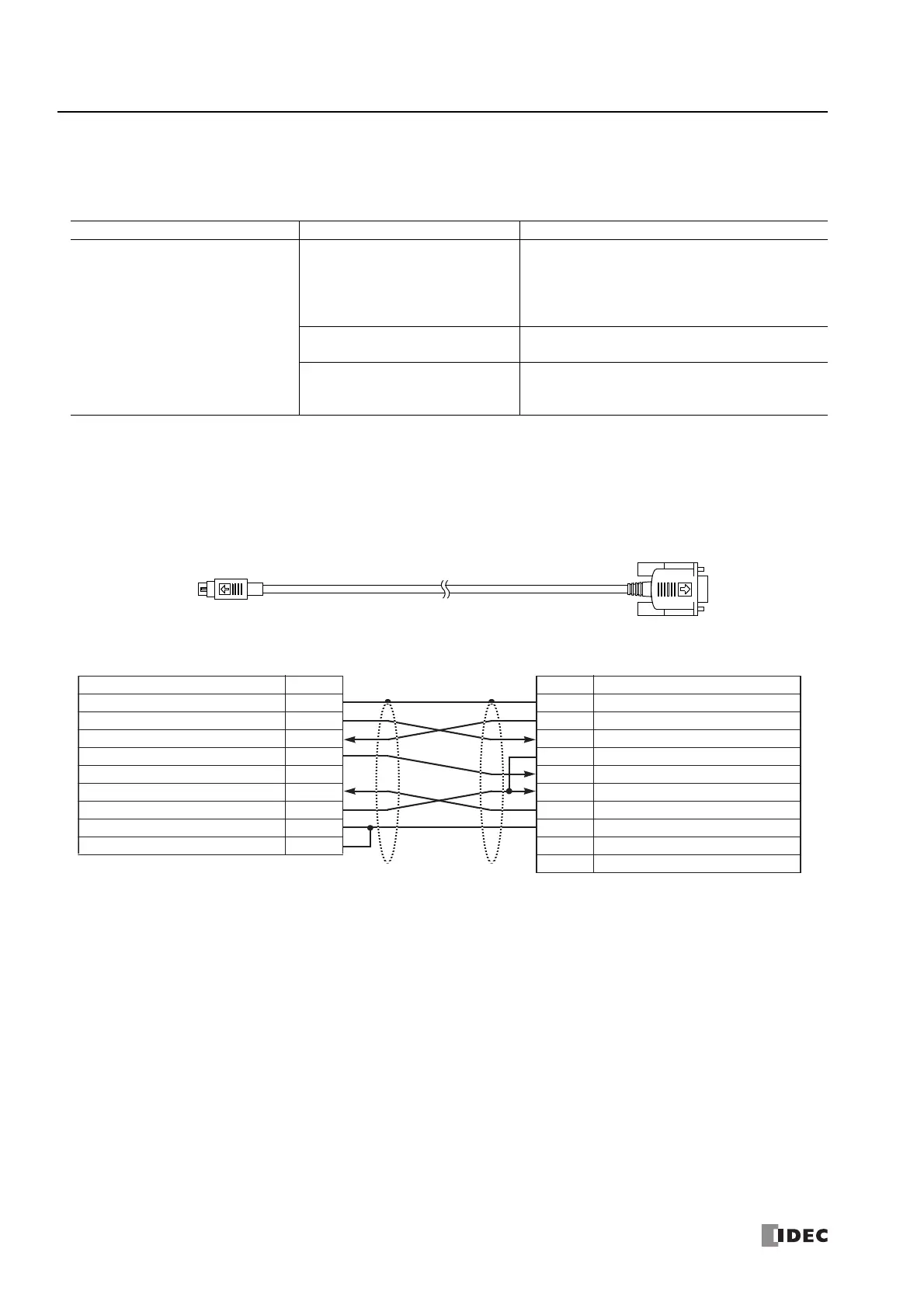

Computer Link Cable 4C (FC2A-KC4C)
Cable Length: 3m (9.84 feet)
Communication Port Communication Cartridge Applicable Cable
Expansion Communication Port 2
Expansion Communication Port 3
RS232C communication cartridge
FT1A-PC1 (Mini-DIN type)
FC2A-KC4C
FC2A-KP1C
HG9Z-XC295
FC4A-KC1C
FC4A-KC2C
RS485 communication cartridge
FT1A-PC2 (Mini-DIN type)
FC2A-KP1C
RS485 communication cartridge
FT1A-PC3 (Terminal block type)
Twisted-pair shielded cable with a minimum core wire of
0.3mm
2
(Conductor resistance 85/km maximum, shield
resistance 20/km maximum)
To SmartAXIS
To Computer
Mini DIN Connector Pinouts D-sub 9-pin Female Connector Pinouts
Description Pin Pin Description
Shield Cover Cover FG Frame Ground
TXD Transmit Data 33 TXD Transmit Data
RXD Receive Data 24 RXD Receive Data
RTS Request to Send 61 DSR Data Set Ready
NC No Connection 88 CTS Clear to Send
DSR Data Set Ready 15 DCD Data Carrier Detect
DTR Data Terminal Ready 42 DTR Data Terminal Ready
SG Signal Ground 57 SG Signal Ground
SG Signal Ground 76 NC No Connection
9 NC No Connection
