IDEC FT1A Series User Manual

S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378 A-9
A PPENDIX

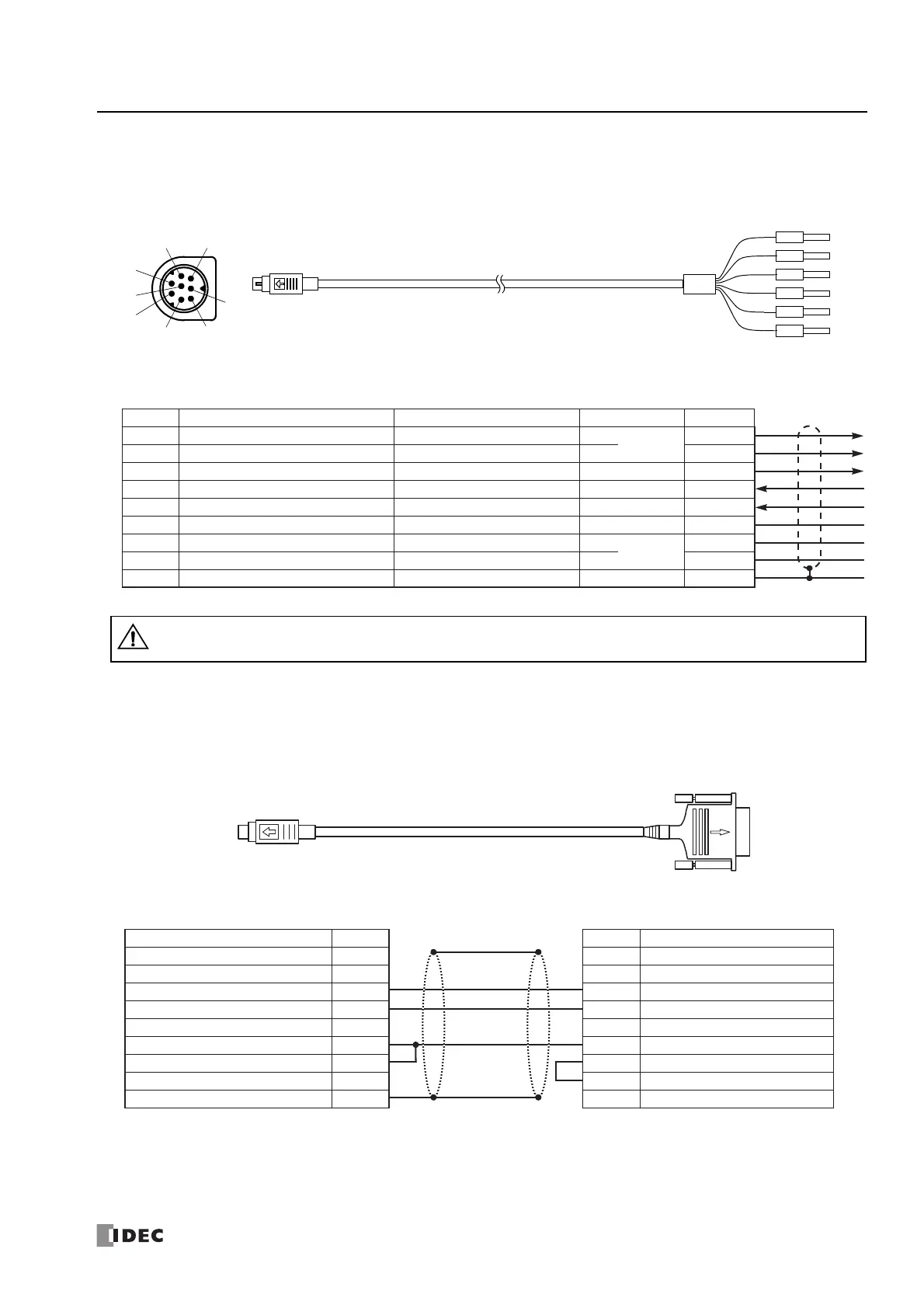

User Communication Cable 1C (FC2A-KP1C)
Cable Length: 2.5m (8.2 feet)
O/I Communication Cable (HG9Z-XC295)
Cable Length: 5m (16.4 feet)
1
2
3
4
5
6
7
8
Mini DIN Connector Pinouts
Pin Signal line (RS232C) Signal line (RS485) AWG# Color
1 RTS Request to Send B 28
Twisted
Black
2 DTR Data Terminal Ready A 28 Yellow
3 TXD Transmit Data NC No Connection 28 Blue
4 RXD Receive Data NC No Connection 28 Green
5 DSR Data Set Ready NC No Connection 28 Brown
6 SG Signal Ground NC No Connection 28 Gray
7 SG Signal Ground SG Signal Ground 26
Twisted
Red
8 NC No Connection NC No Connection 26 White
Cover ——— Shield
Signal Direction
• Do not connect any wiring to NC terminals, otherwise operation failure or device damage may be caused.
Caution
To HG2G-5F, 3G/4G
To SmartAXIS
D-sub 9-pin Female Connector Pinouts Mini DIN Connector Pinouts
Description Pin Pin Description
RS 1
ER 2
SD 23 RD
RD 34 SD
DR 5
SG 56 SG
SG 77 RS
NC 88 CS
Shield Cover Cover Shield
