A PPENDIX
A-10 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378

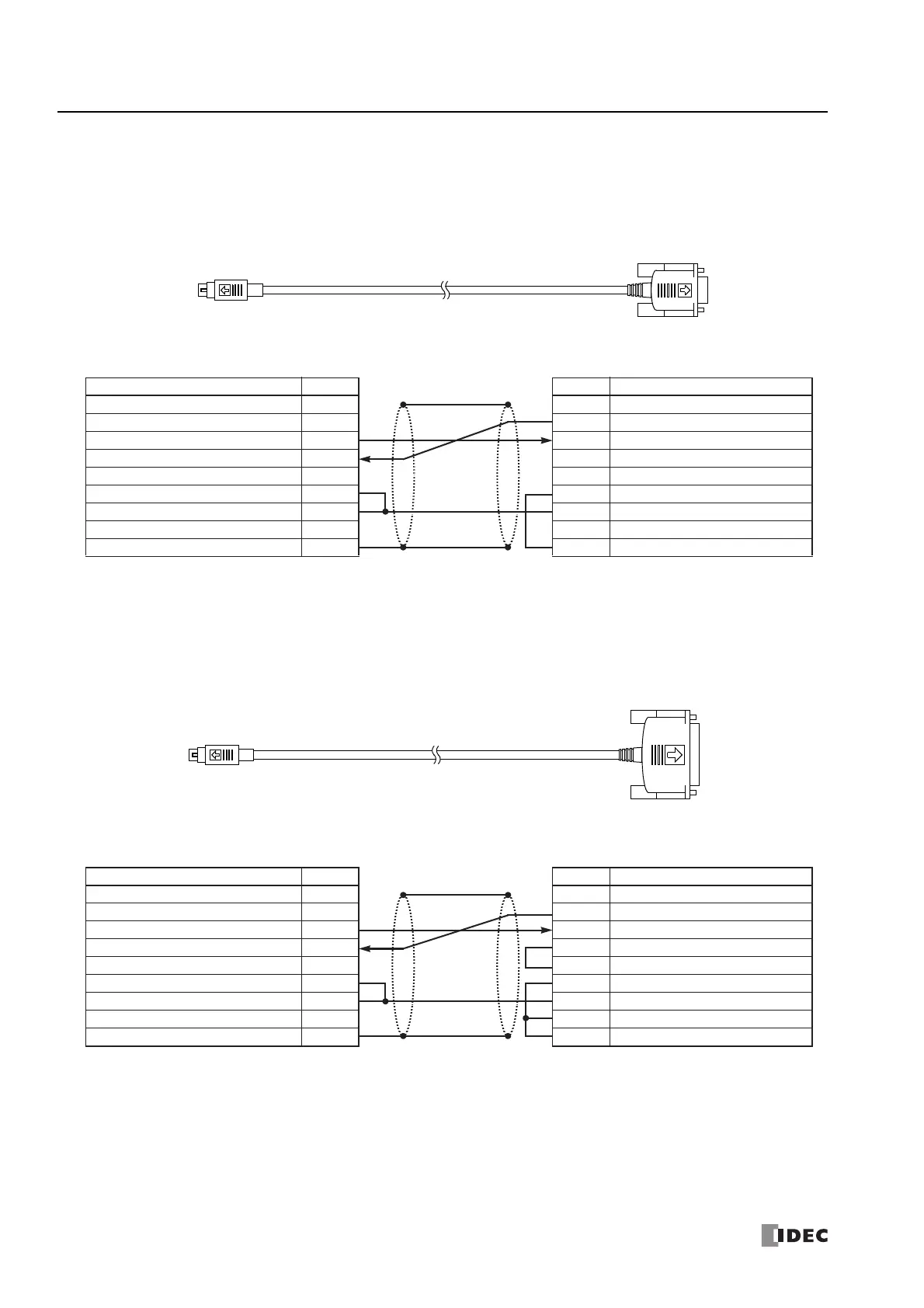

O/I Communication Cable 1C (FC4A-KC1C)
Cable Length: 5m (16.4 feet)
O/I Communication Cable 2C (FC4A-KC2C)
Cable Length: 5m (16.4 feet)
To SmartAXIS
To HG1F
Mini DIN Connector Pinouts D-sub 9-pin Male Connector Pinouts
Description Pin Pin Description
NC No Connection 11 FG Frame Ground
NC No Connection 22 TXD1 Transmit Data 1
TXD Transmit Data 33 RXD1 Receive Data 1
RXD Receive Data 44 TXD2 Transmit Data 2
NC No Connection 55 RXD2 Receive Data 2
SG Signal Ground 66 DSR Data Set Ready
SG Signal Ground 77 SG Signal Ground
NC No Connection 88 NC No Connection
Shield Cover 9 DTR Data Terminal Ready
To SmartAXIS
To HG2F/3F/4F
Mini DIN Connector Pinouts D-sub 25-pin Male Connector Pinouts
Description Pin Pin Description
NC No Connection 11 FG Frame Ground
NC No Connection 22 TXD Transmit Data
TXD Transmit Data 33 RXD Receive Data
RXD Receive Data 44 RTS Request to Send
NC No Connection 55 CTS Clear to Send
CMSW Communication Switch 66 DSR Data Set Ready
SG Signal Ground 77 SG Signal Ground
NC No Connection 88 DCD Data Carrier Detect
Shield Cover 20 DTR Data Terminal Ready
