4: O PERATION B ASICS
4-18 S MART AXIS P RO /L ITE U SER ' S M ANUAL FT9Y-B1378
Start/Stop Operation Using the Power Supply
The SmartAXIS can be started and stopped by turning power on and off.
1. Power up the SmartAXIS to start operation.
2. Turn power on and off to start and stop operation.
Start/Stop Operation Using Stop Input and Reset Input
Any input terminal available on the SmartAXIS can be designated as a stop or reset input using the Function Area Settings. The
procedure for selecting stop and reset inputs is described "Stop Input and Reset Input" on page 5-4.
Note: When using a stop and/or reset input to start and stop operation, make sure that start control special internal relay M8000 is on. If M8000 is
off, the SmartAXIS does not start operation when the stop or reset input is turned off. M8000 is not turned on or off when the stop and/or reset
input is turned on or off.
When a stop or reset input is turned on during program operation, the SmartAXIS stops operation, and all outputs are turned off.
The reset input has priority over the stop input.
System Statuses at Stop, Reset, and Restart

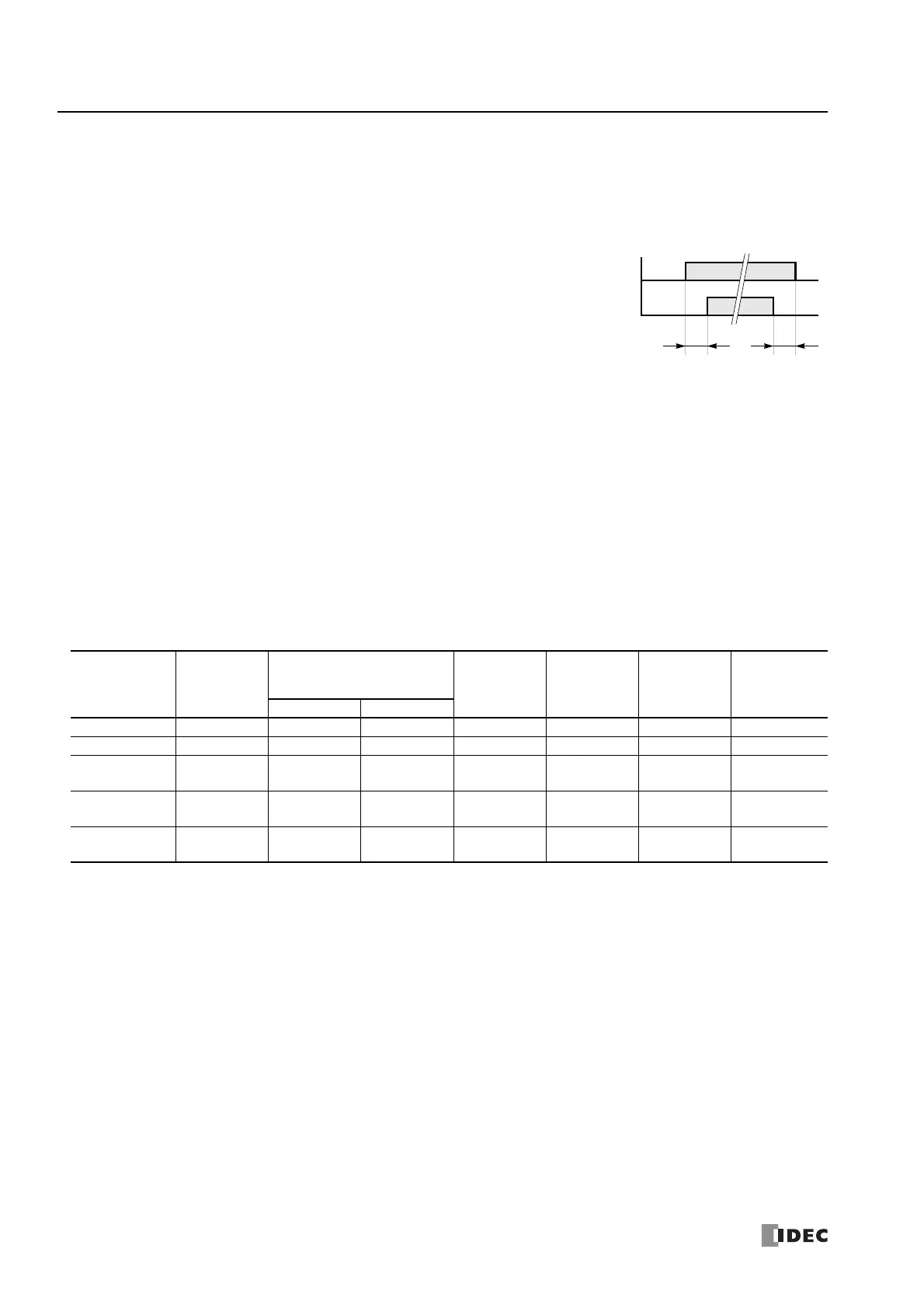

The system statuses during running, stop, reset, and restart after stopping are listed below:
I/O Side Power
ON
OFF
SmartAXIS Power
ON
OFF
0 sec or more 0 sec or more
Order of Powerup and Powerdown
To turn the power on, turn on the SmartAXIS and I/O sides at
the same time, or turn on the I/O side first, followed by the
SmartAXIS side.
To turn the power off, turn off the SmartAXIS and I/O sides at
the same time, or turn off the SmartAXIS side first, followed by
the I/O side.
Mode Output
Internal Relay, Shift
Register, Counter,
Data Register
Special
Internal
Relay
Special Data
Register
Non-
Maintained
Data
Register
Timer
Current
Value
Keep Type Clear Type
Run Operating Operating Operating Operating Operating Operating Operating
Stop OFF Unchanged Unchanged See Chapter 7 Unchanged Unchanged Unchanged
Restart Unchanged Unchanged
OFF/
Reset to zero
Unchanged Unchanged Unchanged Reset to preset
Reset
(Reset input ON)
OFF
OFF/
Reset to zero
OFF/
Reset to zero
Unchanged Unchanged
OFF/
Reset to zero
Reset to zero
Power OFF OFF Unchanged Unchanged See Chapter 7 Unchanged
OFF/
Reset to zero
Reset to zero
