1.2 Printer inside features
In SMART printer, the ribbon is installed by a ribbon cartridge which can be used semi
permanently. The following shows the inside functional features found on your SMART-51
printer.

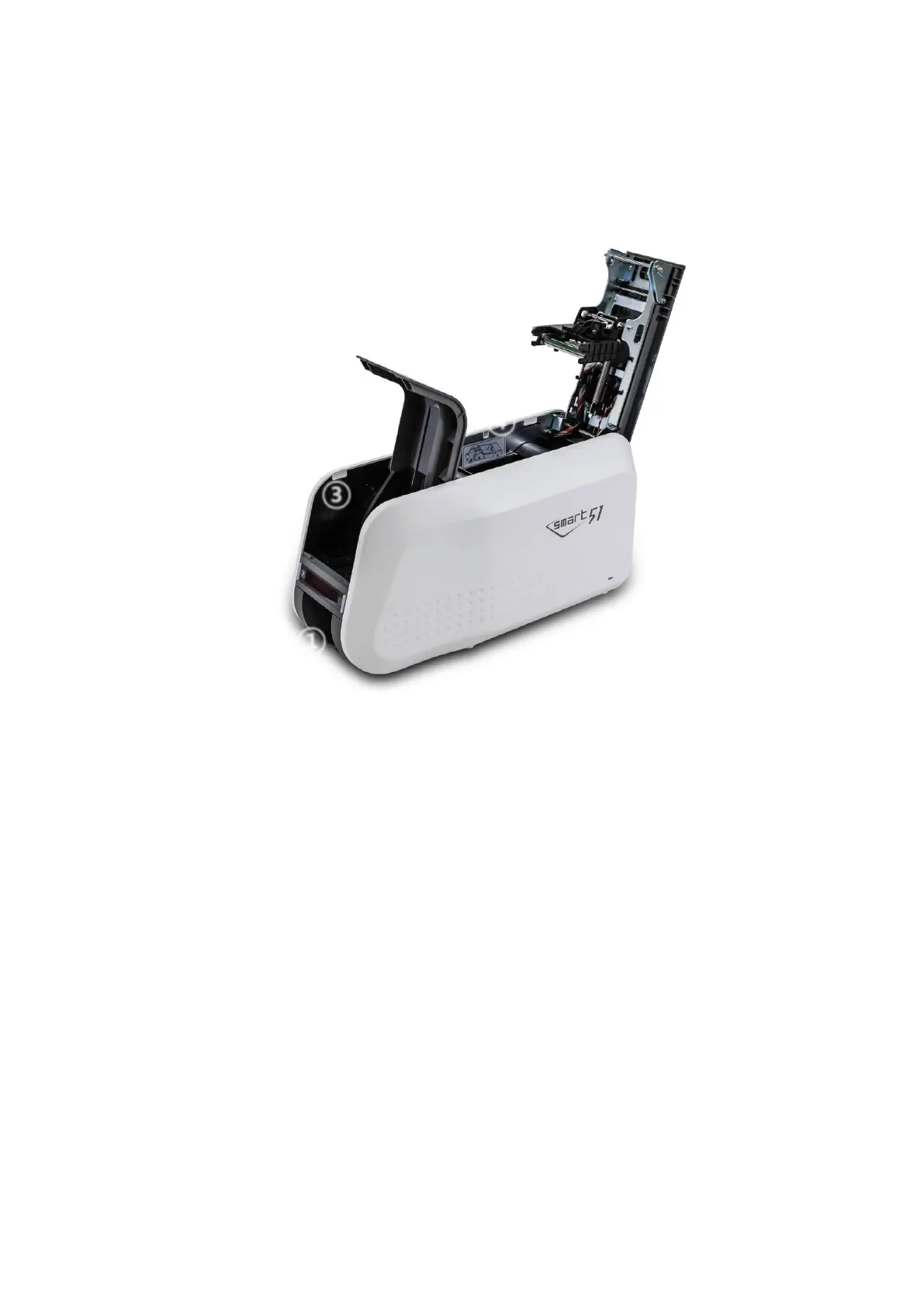

Figure 6 SMART-51 Inside features
① Output hopper(Stacker)
Collect the printed card and/or encoded cards. Maximum 40 cards are loaded and the
extra printed/encoded card is passed out. It can be withdrawed when pulling forward.
② Input hopper
Load the cards for printing. Maximum 100 cards are loaded when cover is closed;
Maximum 200 cards are loaded when the cover is opened.
③ Card thickness control lever
Adjust the cards thickness.
④ Ribbon cartridge
Install the ribbon and the disposable cleaning roller.
