2. Printer installation
2.1. Connecting a power and a USB cable
(1) SMART-51S
Connect the power and USB cable as the below picture. Please refer to the ‘Network
Configuration’ if you use the LAN connection.

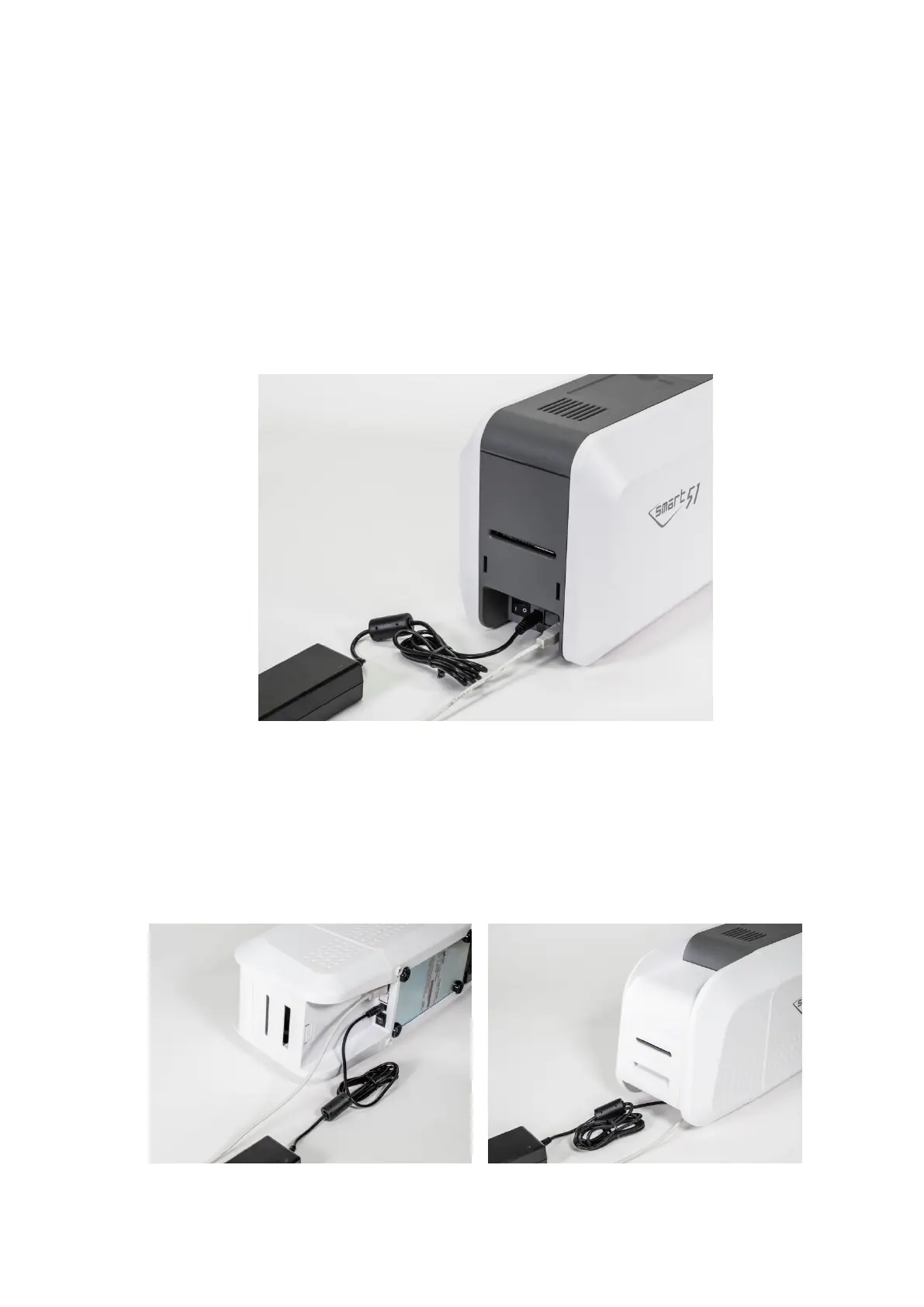

Figure 9 SMART-51S Connection of power and USB cable
(2) SMART-51D
Connect the power and USB cable after turning the printer on its side as the below
picture. Please refer to the ‘Network Configuration’ if you use the LAN connection.
Figure 10 SMART-51D Connection of power and USB cable
