(3) SMART-51L
SMART-51L needs two power cables. Connect powers and USB cable after turning the
printer on its side as the below picture. Please refer to the ‘Network Configuration’ if you
use the LAN connection.
SMART-51L has two power switches so please turn on both switches.

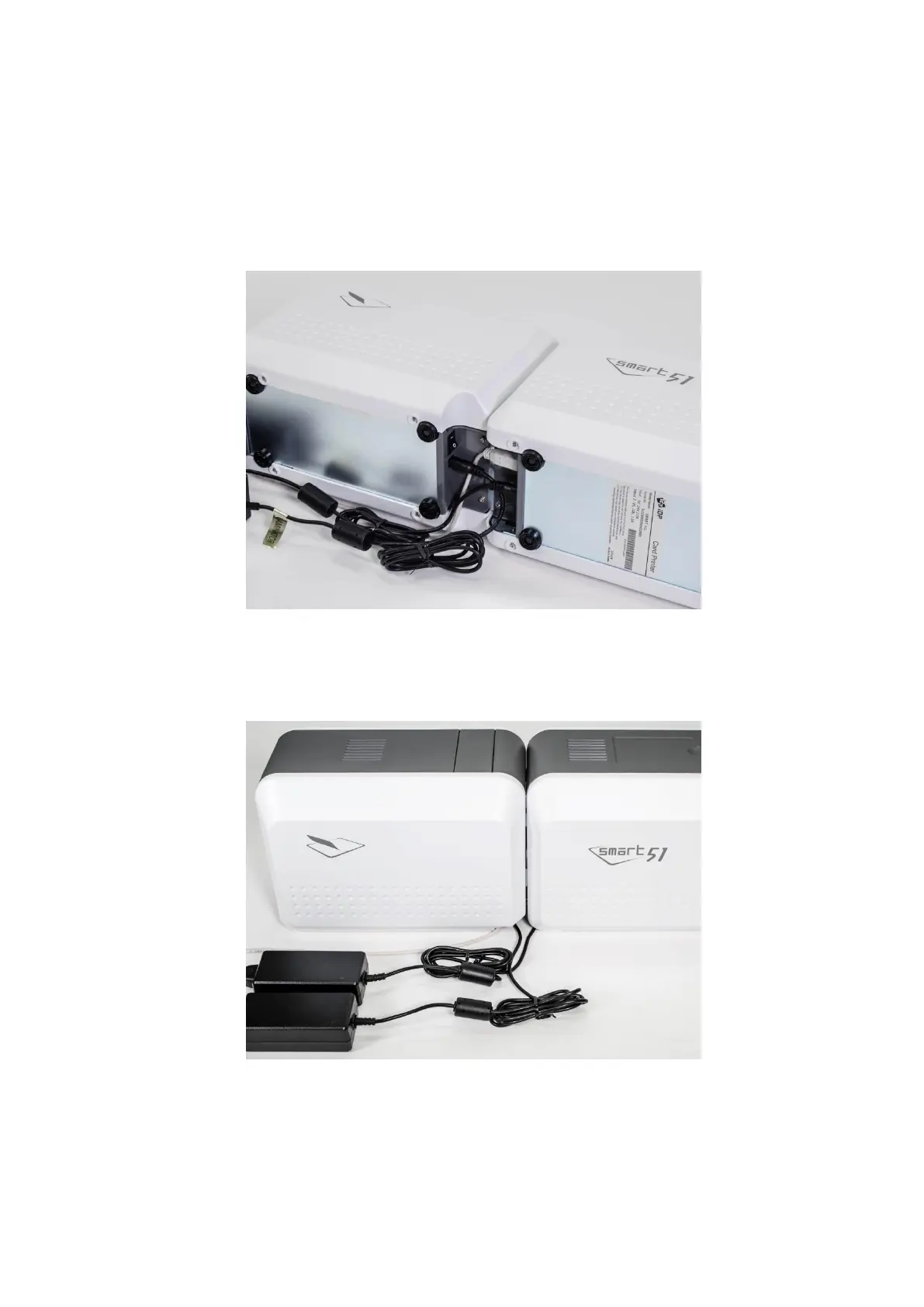

Figure 11 SMART-51L Connection of powers and USB cable - 1
Figure 12 SMART-51L Connection of powers and USB cable - 2
