7.2 Wiring examples
Wiring examples of the sensor are given below.
7.2.1 Trigger image capture with proximity sensor
The sensor can be triggered externally:
● via Ethernet
● via a proximity sensor connected to the trigger input

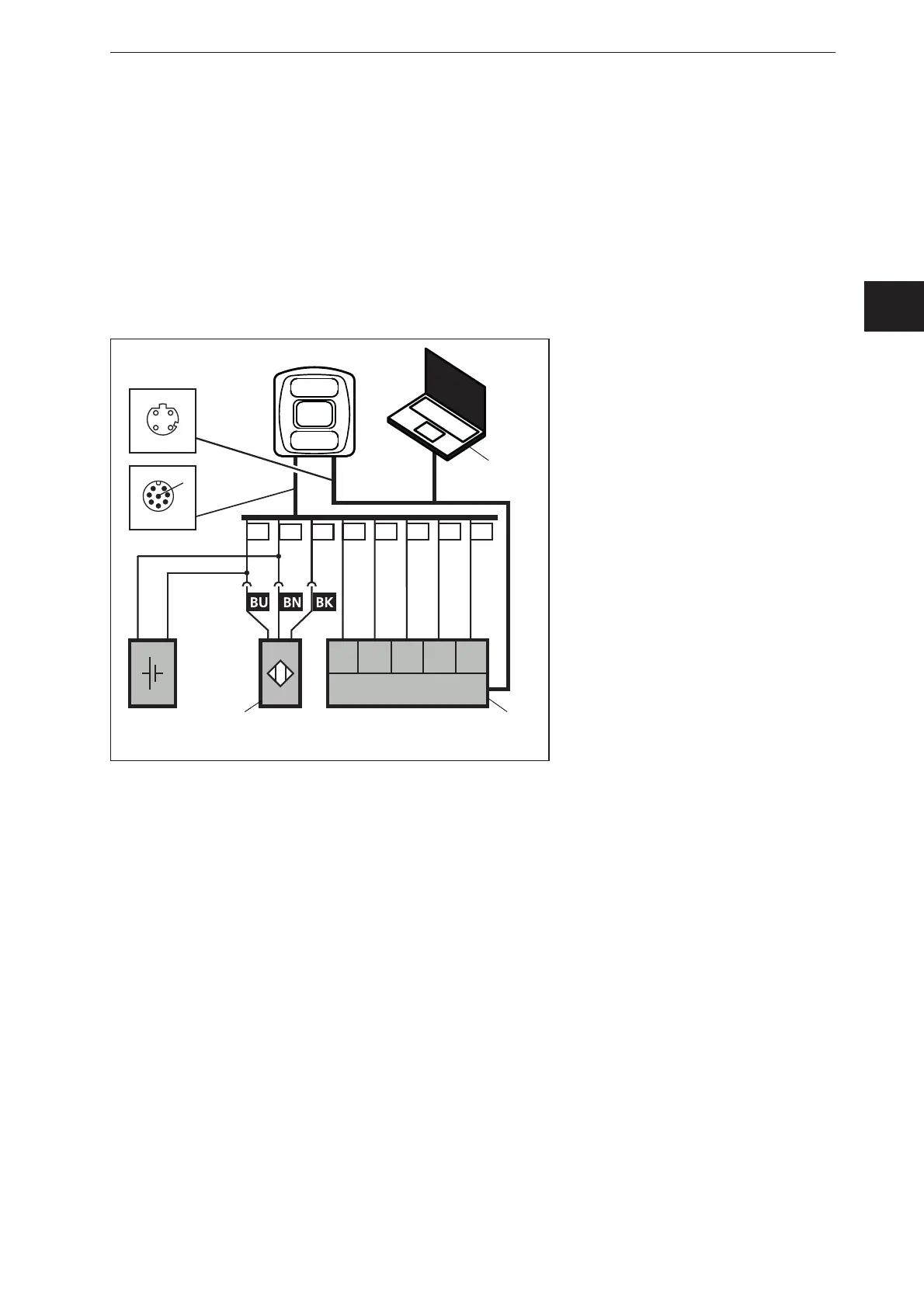

The following illustration shows the wiring with a proximity sensor.
3 1 2 4 5
6 7 8
1 2
34
6
2
1
4
5
7
3
8
PLC
DC 24 V+ -
IN IN IN OUT OUT
①
② ③
① Notebook (parameter setting)
② Proximity sensor
③ Industrial controller (evaluate /
trigger)
