IFM O3D300 - Signal sequence with synchronous trigger; Signal sequence with failed trigger

3D sensor
60

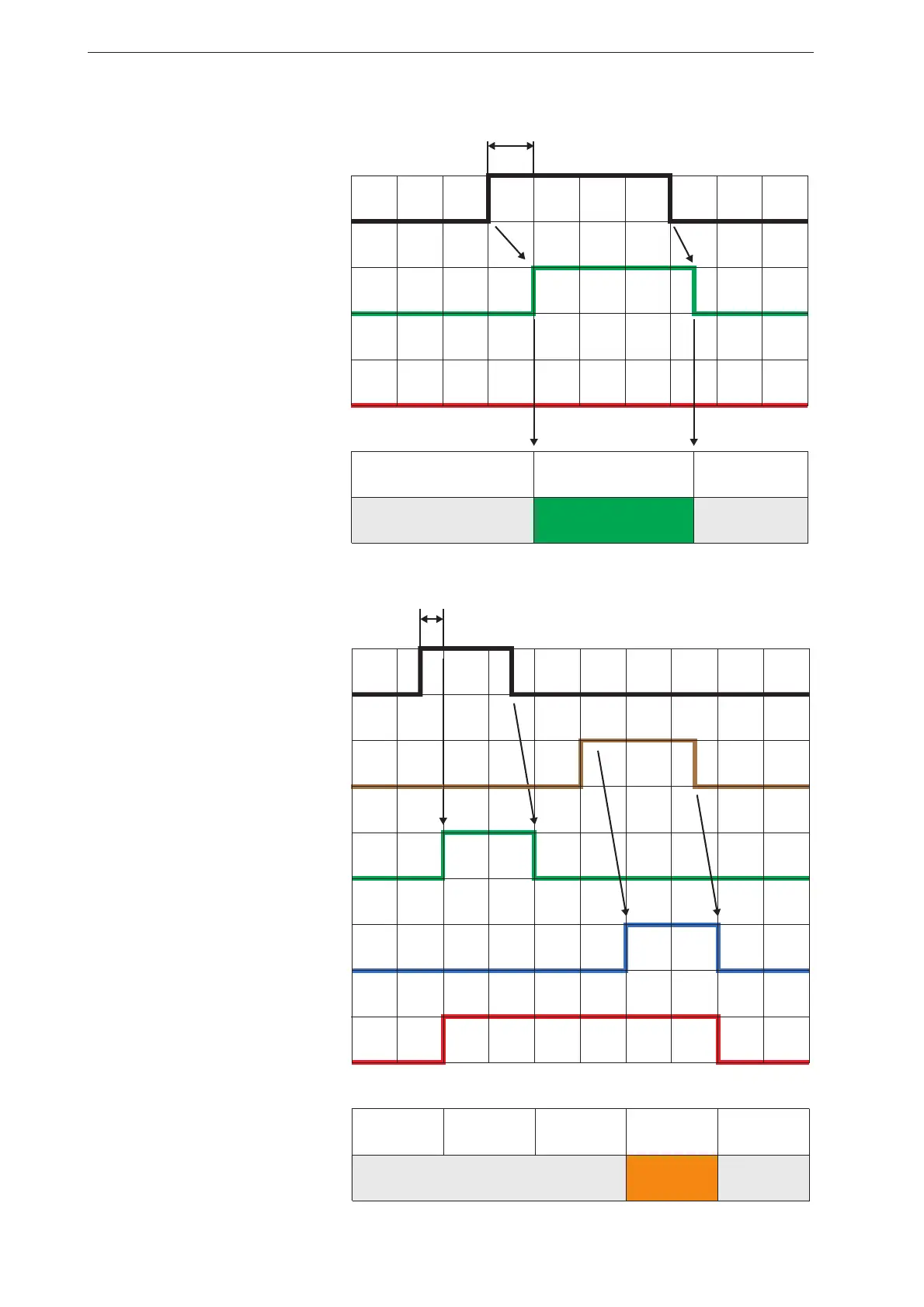

13.4.3 Signal sequence with synchronous trigger
Mirror Bit „Exec. sync. trigger“
Command Bit „Exec. sync. trigger“
Mirror Bit „Error“
Message counter n n+1 n+2
Data 0x0000 Result Data 0x0000
Processing time
13.4.4 Signal sequence with failed trigger
Mirror Bit „Exec. sync. trigger“
Command Bit „Exec. sync. trigger“
Mirror Bit „Error“
Message counter
n n+1 n+2
Data 0x0000 Error Code 0x0000
Processing time
Command Bit „Get last error“
Mirror Bit „Get last error“
n+3 n+4
