Appendix A Stand Mounting
Appendix A Stand Mounting
During final installation, the machine must be secured as soon as possible when elevated
on the stand. Extreme caution should be used until the machine is secured.

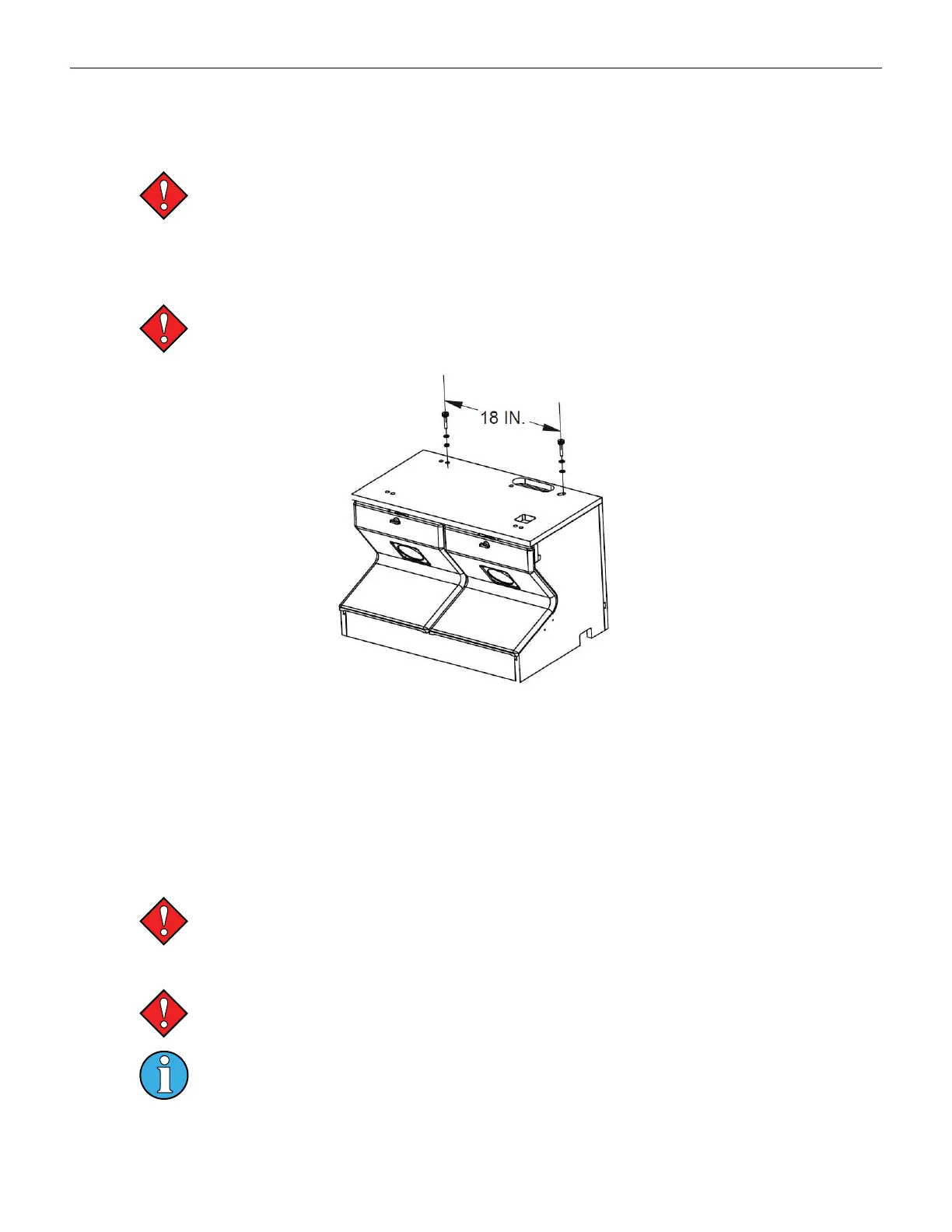

The rear of the stand requires two Quick Connect Bolts (Figure A-1) to be installed which allow the
EGM to slide into proper position on the stand. Once in place, the standard EGM bolts easily install
into the two front mounting positions.
The Cobalt cabinet requires the slotted bolts to be raised 1/8". Hardware kit P/N
91439801 provides an additional four washers to raise the slotted bolts as seen in Figure
A-1.
Figure A-1 Stand Specifications
Cobalt machines must be mounted to a stand for operation. Stands are available from IGT in two
configurations, standard and stability. The mounting hole pattern (Figure A-2), is used with all
stands.
The standard stand (Figure A-3) is designed to be used when machines are grouped together, back-
to-back, or against a wall. It is available in 18-inch and 20.5-inch high configurations.
The stability stand (Figure A-4), (P/N 147-398-xx) should be used when machines are located in a
stand-alone orientation.
IGT requires a minimum distance of 6 inches (15.2 cm) between the sides of two upright
machines (4.75 inches (12.1 cm) on G23 Machines, 2.07 inches (5.3 cm) on Crystal Core
machines, 2.375 inches (6.0325 cm) on Cobalt Machines). The backs of upright machines
may be touching. Slant-top machines may be in contact side-to-side or back-to-back.
Follow the procedures from the Machine Installation Manual (IGT P/N 821-287-XX) to
properly mount and brace the machine.
In addition to the stability stand, IGT can supply an optional Stabilizer Kit (IGT P/N
91427500) to modify a standard stand for increased stability. This kit includes
instructions and a template to mount the stabilizers.
