IHI 17VX3 - Painting Diagram

SPECIFICATIONS

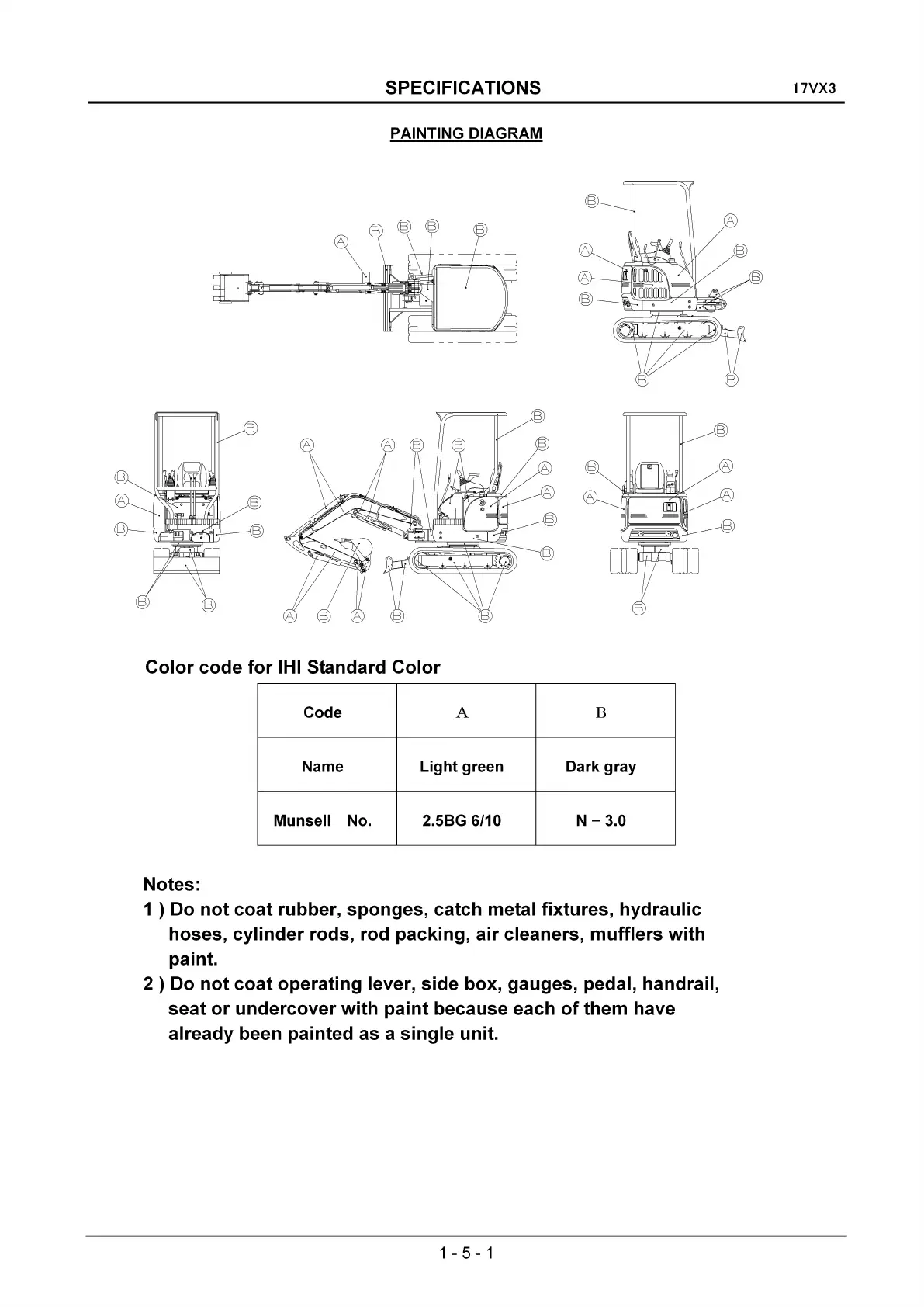

PAINTING DIAGRAM
17VX3
A
B
A
B
B
B B
B
A
B
Color code for IHI Standard Color
Code A B
Name Light green Dark gray
Munsell No.
2.5BG
6/10 N - 3.0
Notes:
1 ) Do
not coat rubber, sponges, catch metal fixtures, hydraulic
hoses, cylinder rods, rod packing, air cleaners, mufflers with
paint.
2 ) Do
not coat operating lever, side box, gauges, pedal, handrail,
seat or undercover with paint because each of them have
already been painted as a single unit.
