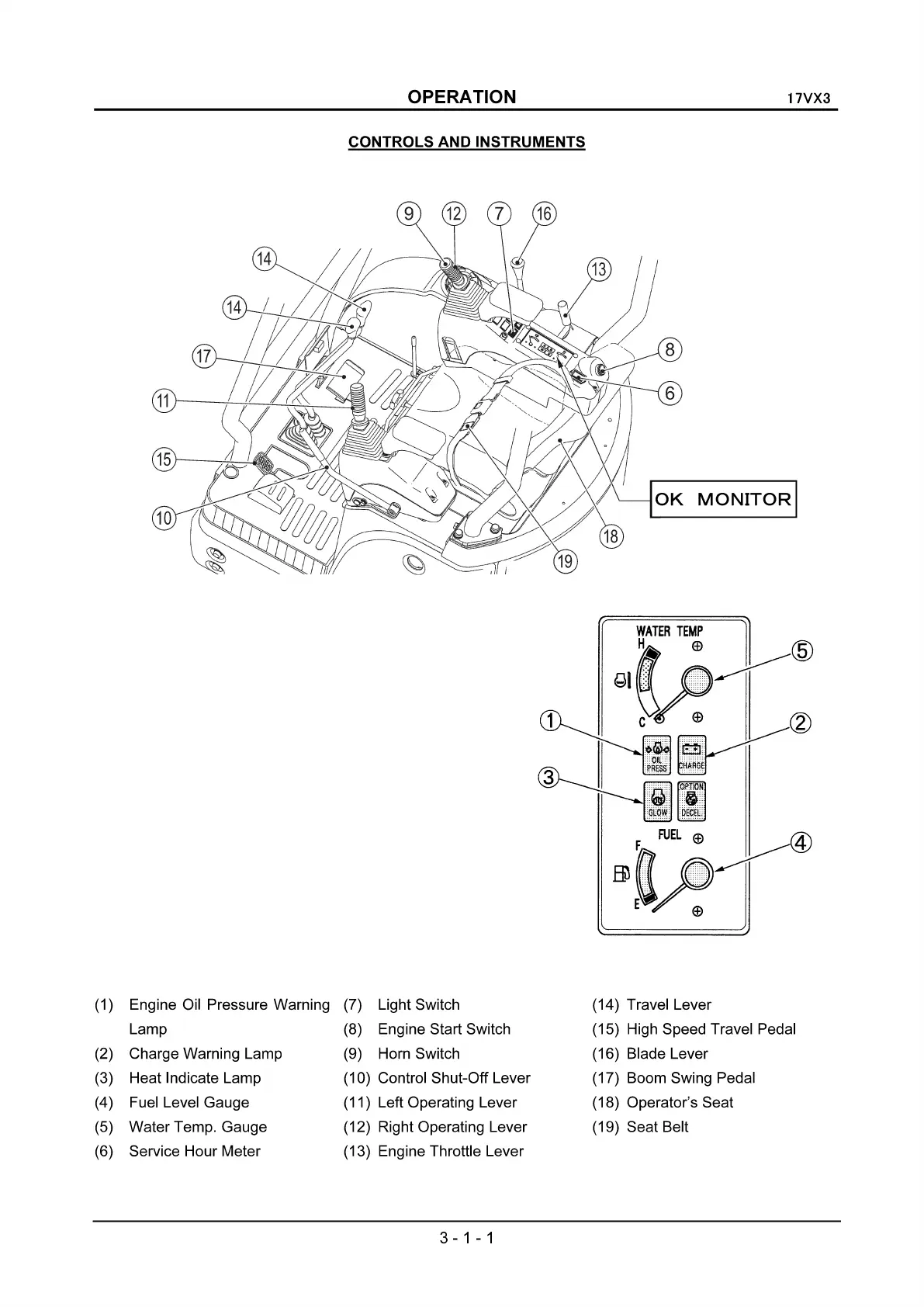

IHI 17VX3 - Controls and Instruments

(1) Engine Oil Pressure Warning
Lamp
(2) Charge Warning Lamp
(3) Heat Indicate Lamp
(4) Fuel Level Gauge
(5) Water Temp. Gauge
(6) Service Hour Meter
OPERATION
CONTROLS AND INSTRUMENTS
1
(7) Light Switch
(8) Engine Start Switch
(9) Horn Switch
(10) Control Shut-Off Lever
(11) Left Operating Lever
(12) Right Operating Lever
(13) Engine Throttle Lever
3 - 1 - 1
17VX3
OK MONITOR
WATER TEMP
~
~r .. ~. @
°1 ~.::~::"" ~
\::::J.. ::::;::;'
C G> ®
........... ~~
~~.II
(14) Travel Lever
(15) High Speed Travel Pedal
(16) Blade Lever
(17) Boom Swing Pedal
(18) Operator's Seat
(19) Seat Belt
