IHI 17VX3 - Remote Control Valve Assembly

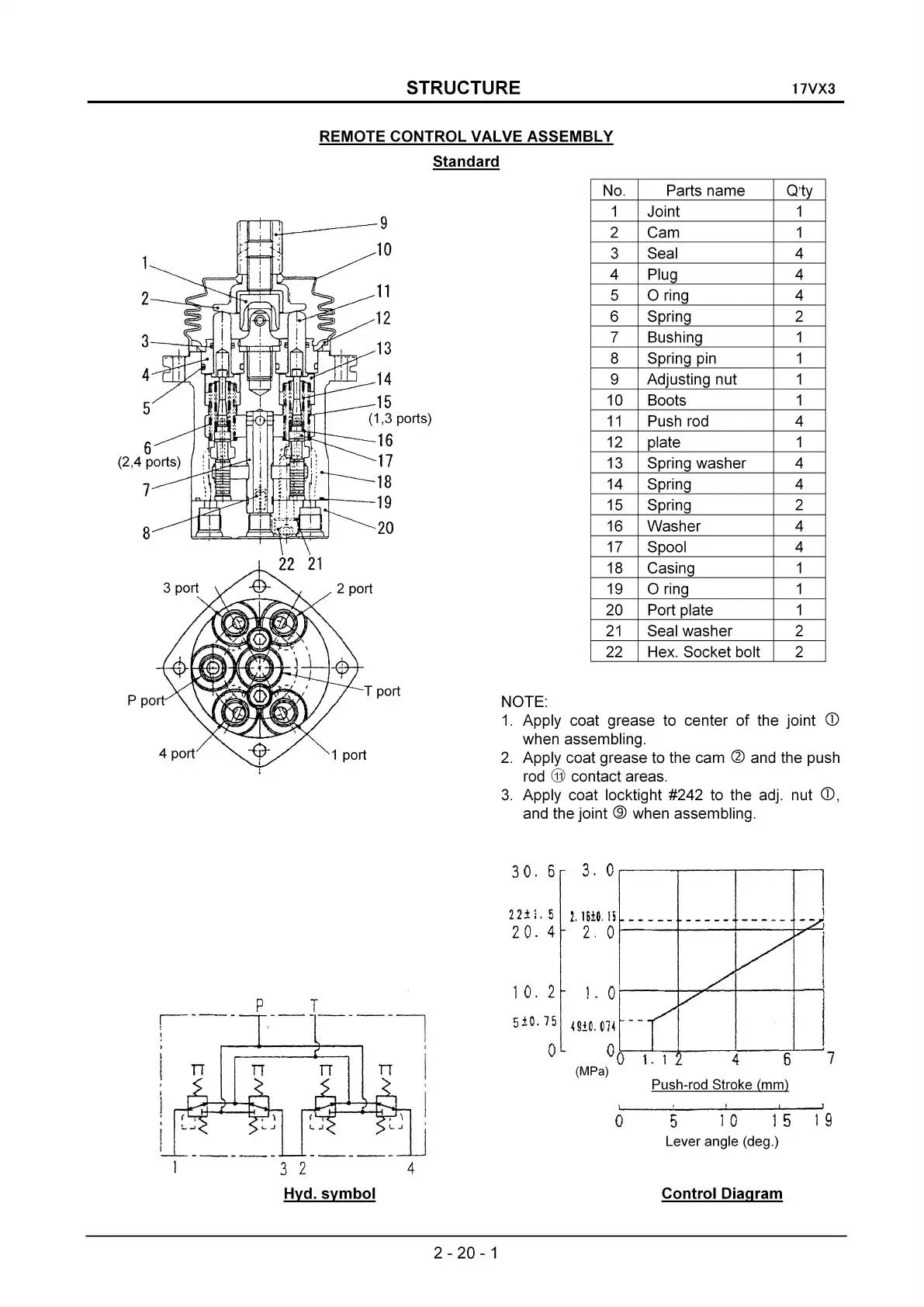

STRUCTURE
17VX3
REMOTE CONTROL VALVE ASSEMBLY
Standard
No. Parts name Qty
1 Joint 1
2 Cam 1
3 Seal 4
4 Plug 4
5
o ring 4
6 Spring 2
7 Bushing 1
8 Spring pin 1
9 Adjusting nut 1
10 Boots 1
11 Push rod 4
12 plate 1
13 Spring washer 4
14 Spring 4
15 Spring 2
16 Washer 4
17 Spool 4
18 Casing 1
19
o ring 1
20 Port plate 1
21 Seal washer 2
22 Hex. Socket bolt 2
NOTE:
1. Apply coat grease to center of the joint CD
when assembling.
2. Apply coat grease to the cam Q) and the push
rod
@ contact areas.
3. Apply coat locktight #242 to the adj. nut CD,
and the joint ® when assembling.
9
10
2
11
12
3
13
4
14
5
15
(1,3 ports)
6
16
(2,4 ports)
17
7
18
19
8
20
30. 6 3. 0 ~------~--..,....----,
2.2± i. 5 1. 16iO. 15
2 O. 4 2. 0 I------+----+---~~
i---
I
I
n
10. 2
1. 0'
SiO.75
~ g±O. C7~
- -
0
°0
1. 1
4
6
7
(MPa)
Push-rod Stroke (mm)
\ ! ,
o 5 10 15 19
Lever angle (deg.)
324
Hyd. symbol Control Diagram
2 - 20 - 1
