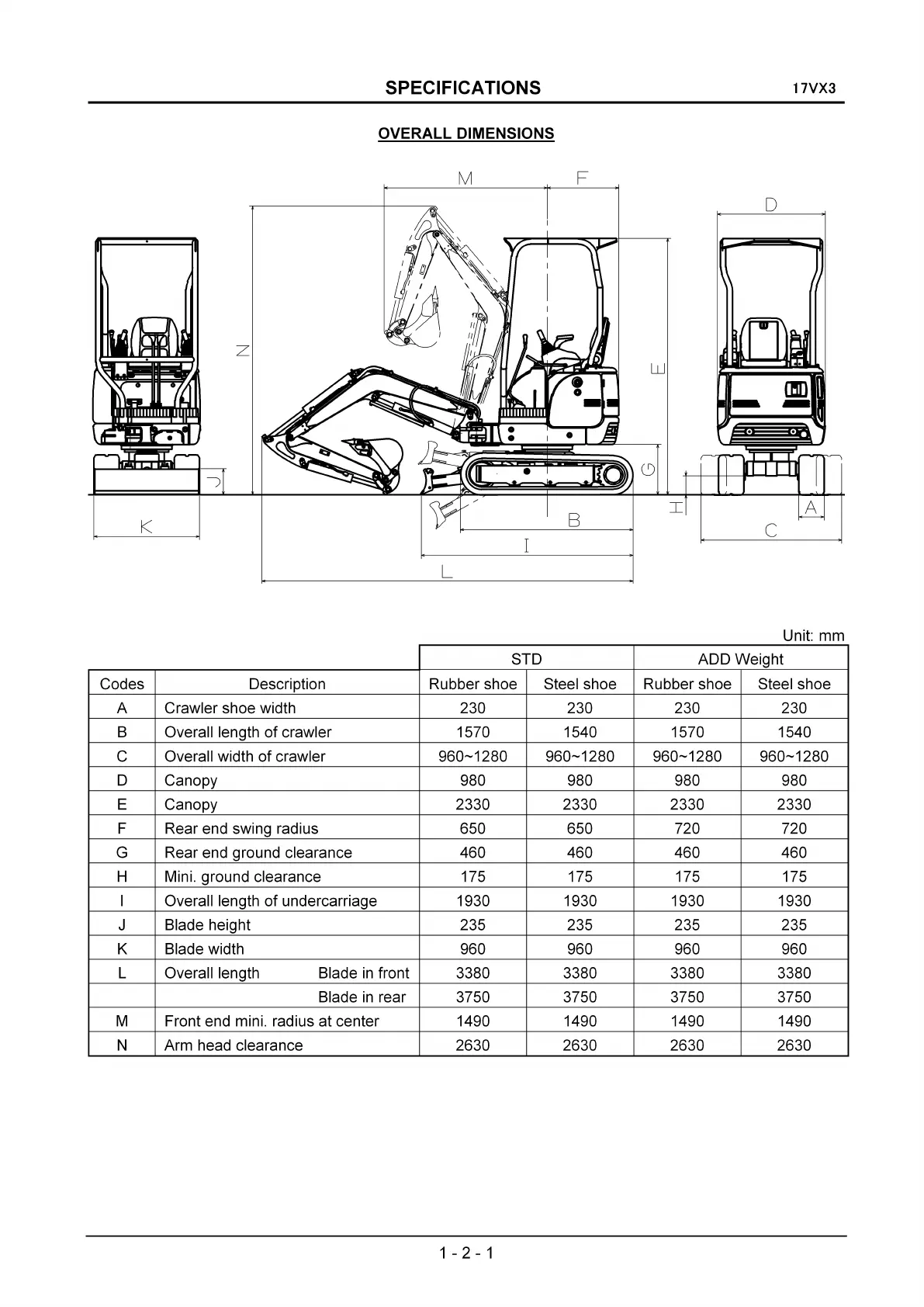

SPECIFICATIONS
OVERALL DIMENSIONS
M F
17VX3
K
z
L
Unit: mm
STD ADD
Weight
Codes Description Rubber shoe Steel shoe Rubber shoe Steel shoe
A Crawler shoe width
230 230 230 230
B Overall length
of
crawler 1570 1540 1570 1540
C Overall width
of
crawler 960-1280 960-1280 960-1280 960-1280
D Canopy 980 980 980 980
E Canopy 2330 2330 2330 2330
F Rear end swing radius 650 650 720 720
G Rear end ground clearance 460 460 460 460
H Mini. ground clearance
175 175 175 175
I Overall length
of
undercarriage 1930 1930 1930 1930
J Blade height 235 235 235 235
K Blade width 960 960 960 960
L Overall length Blade
in
front 3380 3380 3380 3380
Blade
in
rear 3750 3750 3750 3750
M Front end mini. radius
at
center 1490 1490 1490 1490
N Arm head clearance 2630 2630 2630 2630
1 - 2 - 1
