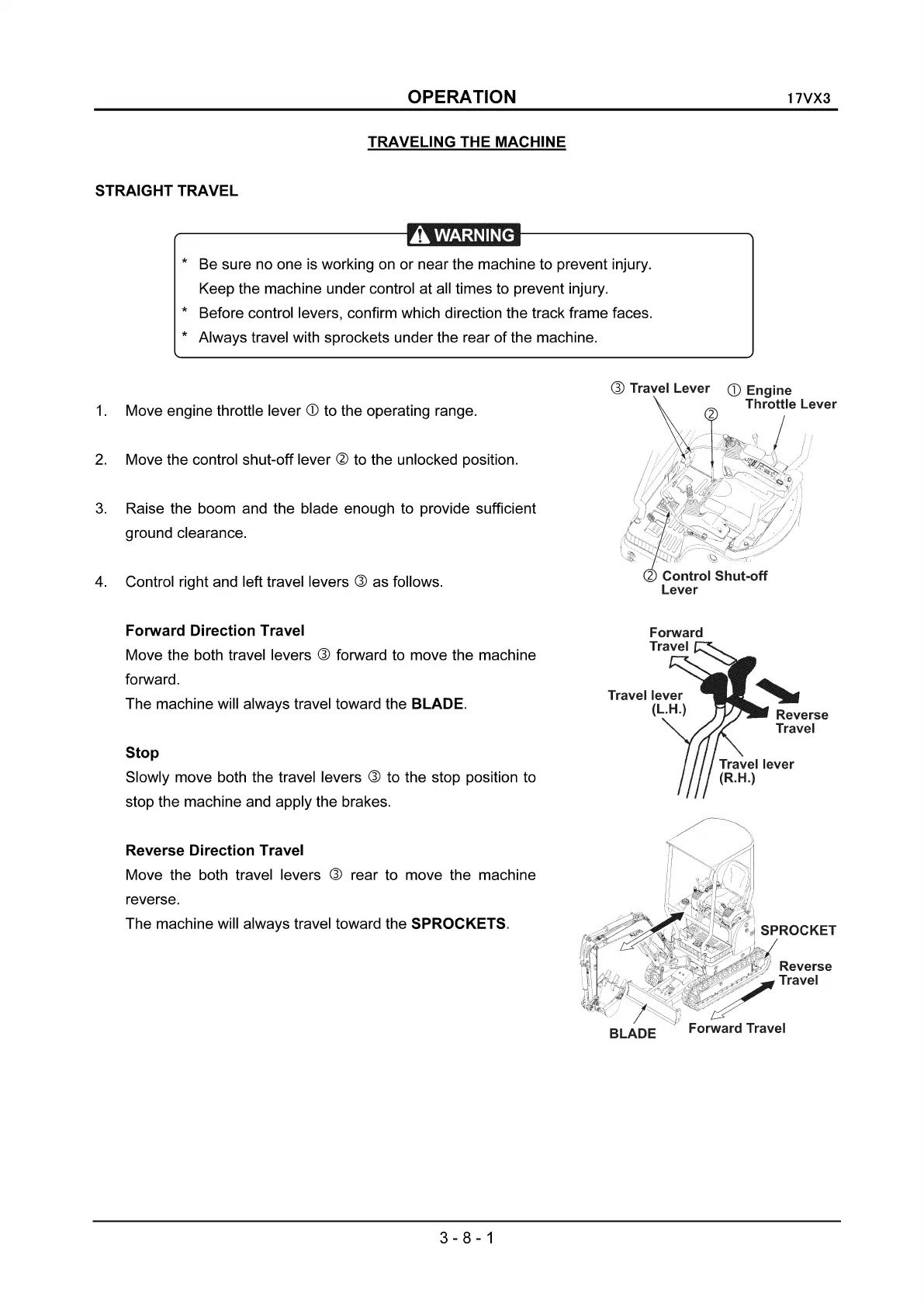

OPERATION
TRAVELING THE MACHINE
STRAIGHT
TRAVEL
* Be sure no one
is
working on or near the machine to prevent injury.
Keep the machine under control at all times to prevent injury.
* Before control levers, confirm which direction the track frame faces.
* Always travel with sprockets under the rear
of
the machine.
17VX3
1.
Move engine throttle lever
CD
to the operating range.
2.
Move the control shut-off lever ~ to the unlocked position.
3.
Raise the boom and the blade enough to provide sufficient
ground clearance.
4.
Control right and left travel levers
(J)
as follows.
Forward Direction Travel
Move the both travel levers
(J)
forward to move the machine
forward.
The machine will always travel toward the BLADE.
Stop
Slowly move both the travel levers
Q)
to the stop position to
stop the machine and apply the brakes.
Reverse Direction Travel
Move the both travel levers
(J)
rear to move the machine
reverse.
The machine will always travel toward the SPROCKETS.
3-8-1
