STRUCTURE
CRAWLER SHOE ASSEMBLY (RUBBER SHOE)
17VX3
Weight: 57
kg

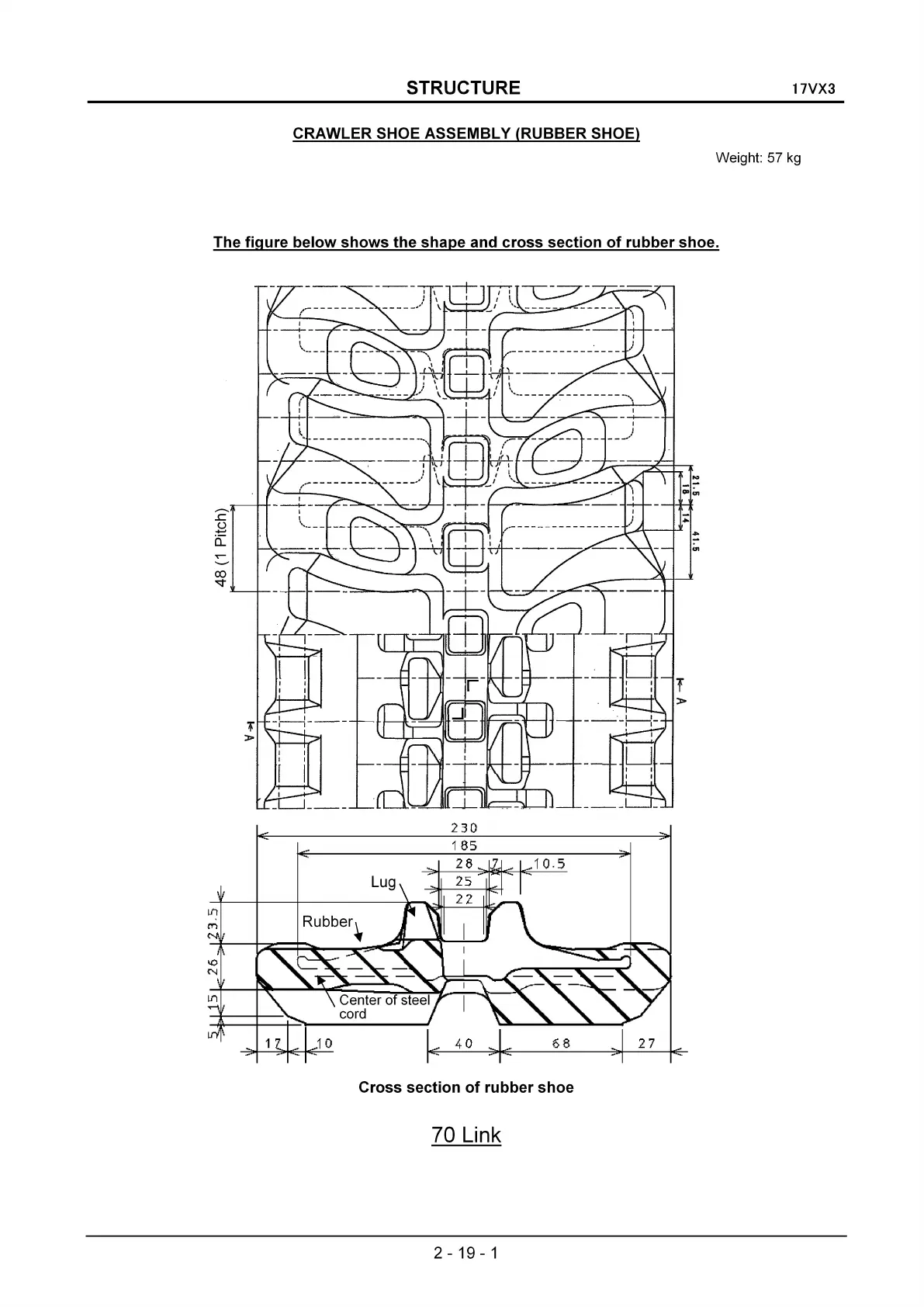

The
figure
below
shows
the
shape and
cross
section
of
rubber
shoe.
Cross
section
of
rubber
shoe
70 Link
2-19-1
