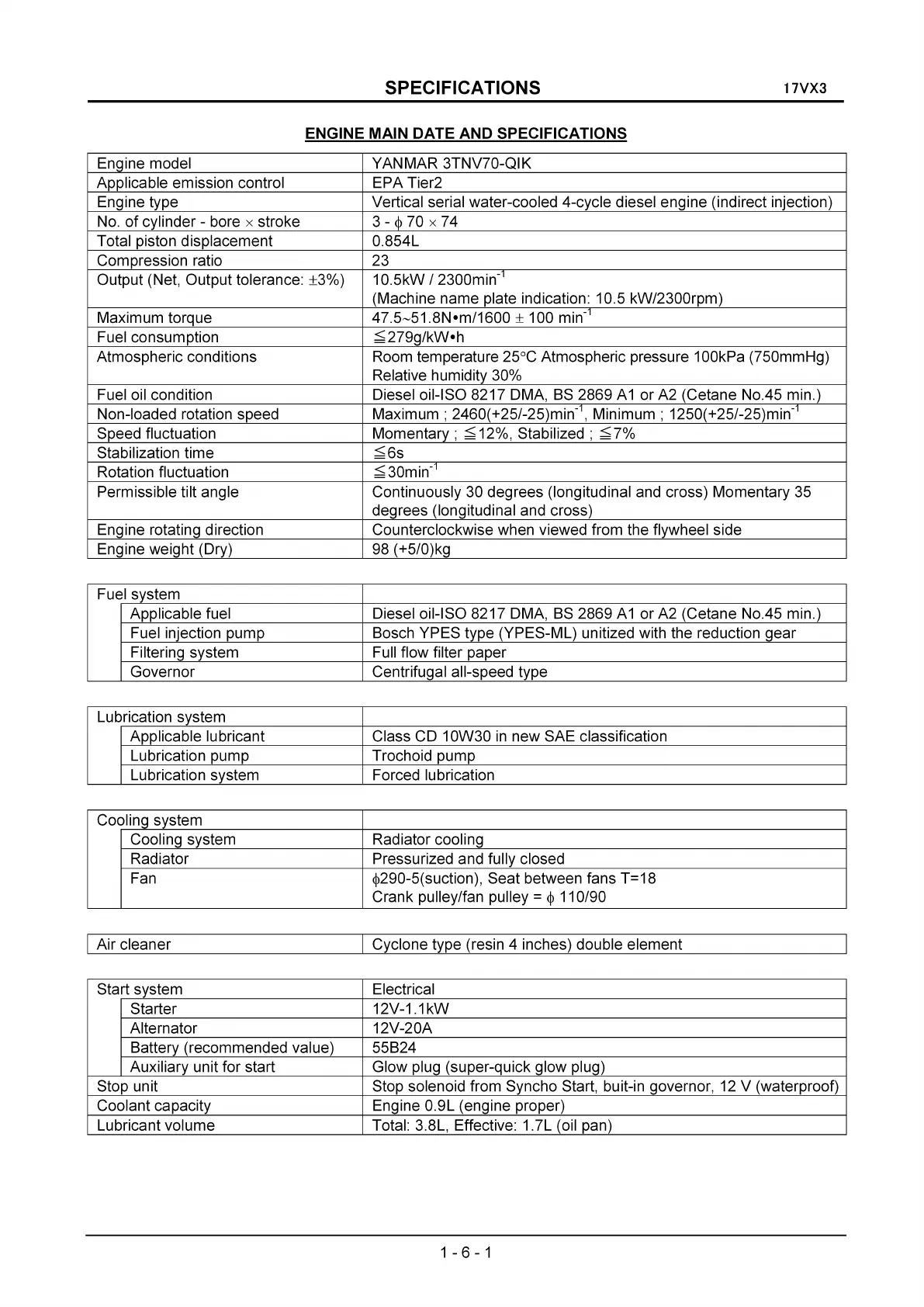

SPECIFICATIONS
ENGINE MAIN DATE AND SPECIFICATIONS
17VX3
Engine model Y
AN
MAR 3TNV70-QIK
Applicable emission control EPA Tier2
Engine type Vertical serial water-cooled 4-cycle diesel engine (indirect injection)
No.
of
cylinder - bore x stroke
3-<p70x74
Total piston displacement 0.854L
Compression ratio 23
Output (Net, Output tolerance: ±3
%
)
10.5kW / 2300min-
1
(Machine name plate indication: 10.5 kW/2300rpm)
Maximum torque
47.5",51.8N
e
m/1600 ± 100 min-
1
Fuel consumption
~279g/kWeh
Atmospheric conditions Room temperature 25°C Atmospheric pressure 100kPa (750mmHg)
Relative humidity 30
%
Fuel oil condition Diesel oil-ISO 8217 DMA,
BS
2869
A1
or A2 (Cetane No.45 min.)
Non-loaded rotation speed
Maximum;
2460(+25/-25)min-
1
,
Minimum;
1250(+25/-25)min-
1
Speed fluctuation Momentary ;
~
12
%
,
Stabilized ;
~
7
%
Stabilization time
~6s
Rotation fluctuation
~30min-l
Permissible tilt angle Continuously 30 degrees (longitudinal and cross) Momentary 35
degrees (longitudinal and cross)
Engine rotating direction Counterclockwise when viewed from the flywheel side
Engine weight (Dry)
98 (+5/0)kg
Fuel system
Applicable fuel Diesel oil-ISO 8217 DMA,
BS
2869
A1
or A2 (Cetane No.45 min.)
Fuel injection pump Bosch YPES type (YPES-ML) unitized with the reduction gear
Filtering system Full flow filter paper
Governor Centrifugal all-speed type
Lubrication system
Applicable lubricant Class CD 10W30
in
new SAE classification
Lubrication pump Trochoid pump
Lubrication system Forced lubrication
Cooling system
Cooling system Radiator cooling
Radiator Pressurized and fully closed
Fan
<p290-5(suction), Seat between fans T=18
Crank pulley/fan pulley =
<p
110/90
I Air cleaner
I Cyclone type (resin 4 inches) double element
Start system Electrical
Starter 12V-1.1kW
Alternator 12V-20A
Battery (recommended value) 55B24
Auxiliary unit for start Glow plug (super-quick glow plug)
Stop unit Stop solenoid from Syncho Start, buit-in governor,
12
V (waterproof)
Coolant capacity Engine 0.9L (engine proper)
Lubricant volume Total: 3.8L, Effective: 1.7L (oil pan)
1 - 6 - 1
