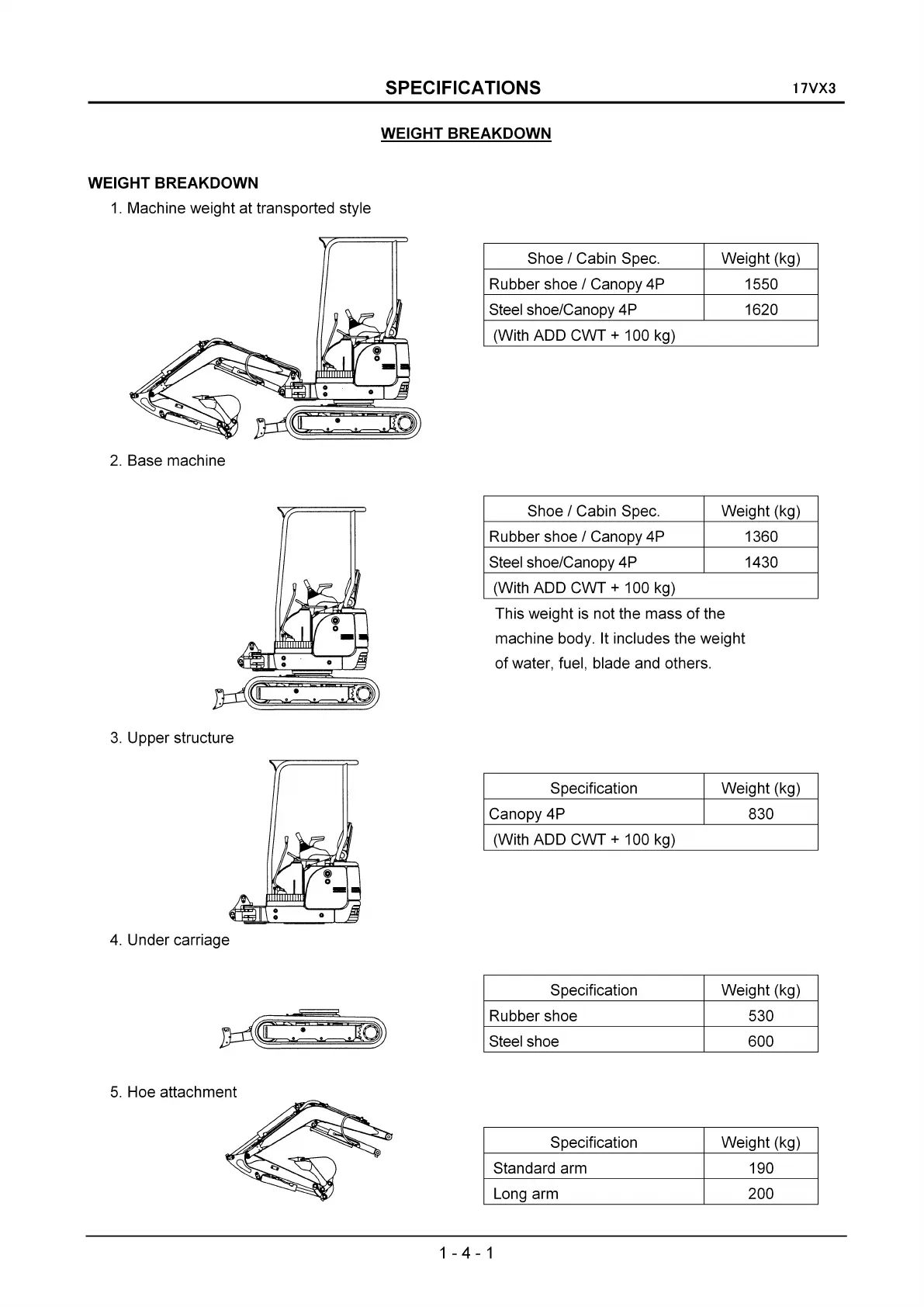

WEIGHT BREAKDOWN
1.
Machine weight at transported style
SPECIFICATIONS
WEIGHT BREAKDOWN
17VX3
2.
Base machine
3.
Upper structure
4.
Under carriage
5.
Hoe attachment
Shoe / Cabin Spec. Weight (kg)
Rubber shoe / Canopy 4P 1550
Steel shoe/Canopy 4P 1620
(With ADD CWT
+ 100 kg)
Shoe / Cabin Spec. Weight (kg)
Rubber shoe / Canopy 4P 1360
Steel shoe/Canopy 4P 1430
(With ADD CWT + 100 kg)
This weight
is
not the mass
of
the
machine body. It includes the weight
of
water, fuel, blade and others.
Specification Weight (kg)
Canopy 4P 830
(With ADD CWT
+ 100 kg)
Specification Weight (kg)
Rubber shoe 530
Steel shoe 600
Specification Weight (kg)
Standard arm 190
Long arm 200
1 - 4 - 1
