SPECIFICATIONS
17VX3

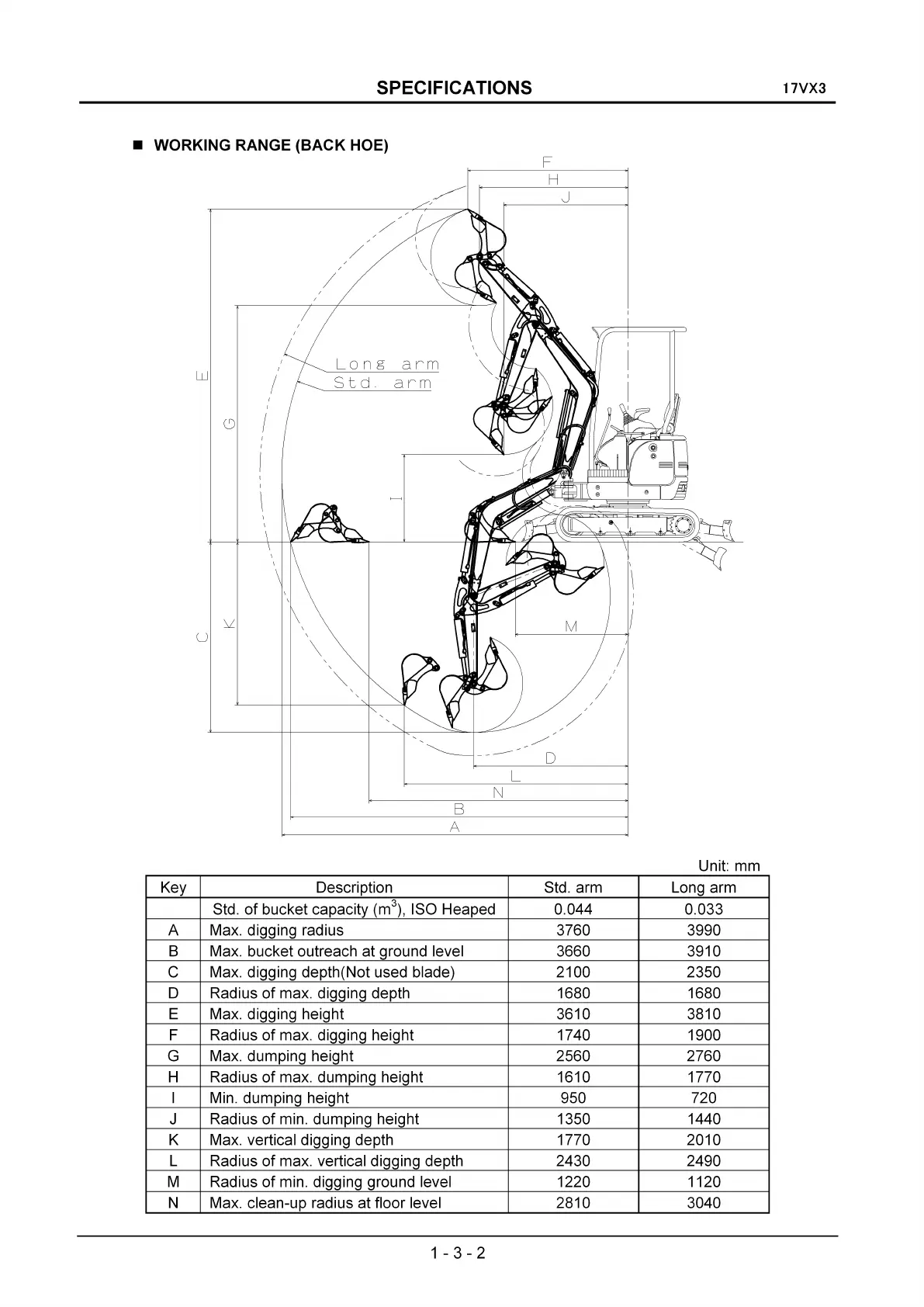

• WORKING RANGE (BACK HOE)
F
II
/
II
/
J
H
~
o
\
)
fE--------+--------'"!I
/
/
/
/
\
\
""
Long
arm
Std.
arm
"
"
\
\
\
\
\
/
/
/
I
/
I
I
/
I
I
I
I
\
w
u
L
N
B
A
Unit: mm
Key Description Std. arm Long arm
Std.
of
bucket capacity (m
3
),
ISO Heaped
0.044 0.033
A Max. digging radius 3760 3990
B Max. bucket outreach at ground level 3660 3910
C Max. digging depth(Not used blade) 2100 2350
D Radius
of
max. digging depth 1680 1680
E Max. digging height 3610 3810
F Radius
of
max. digging height 1740 1900
G Max. dumping height 2560 2760
H Radius
of
max. dumping height 1610 1770
I Min. dumping height 950 720
J Radius
of
min. dumping height 1350 1440
K Max. vertical digging depth 1770 2010
L Radius
of
max. vertical digging depth 2430 2490
M Radius
of
min. digging ground level 1220 1120
N Max. clean-up radius at floor level 2810 3040
1 - 3 - 2
