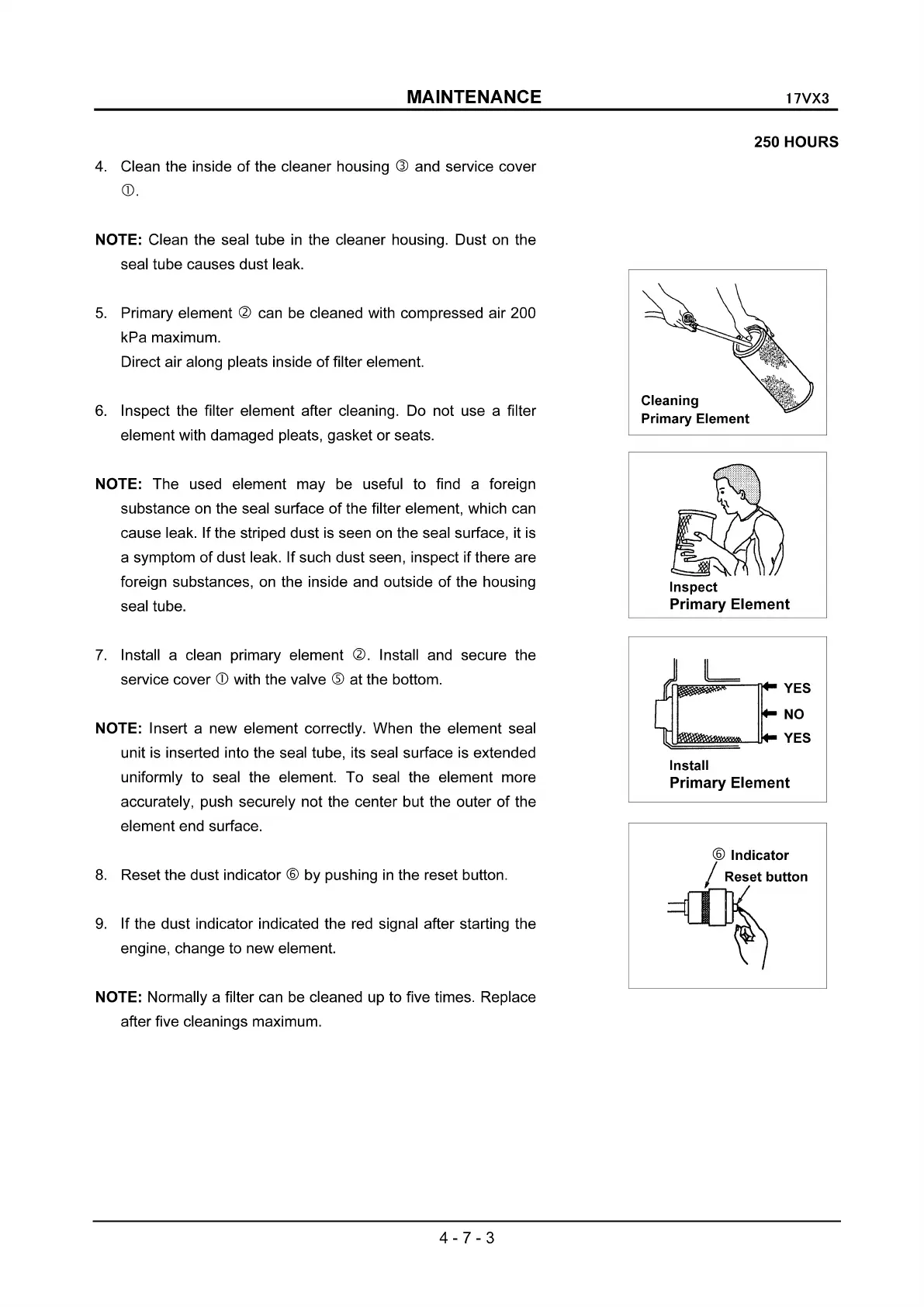

MAINTENANCE
4.
Clean the inside
of
the cleaner housing
Q)
and service cover
CD.
NOTE: Clean the seal tube
in
the cleaner housing. Dust
on
the
seal tube causes dust leak.
5.
Primary element
<l)
can be cleaned with compressed air 200
kPa maximum.
Direct air along pleats inside
of
filter element.
6.
Inspect the filter element after cleaning. Do not use a filter
element with damaged pleats, gasket or seats.
NOTE: The used element may be useful to find a foreign
substance on the seal surface
of
the filter element, which can
cause leak. If the striped dust
is
seen
on
the seal surface, it
is
a symptom
of
dust leak. If such dust seen, inspect if there are
foreign substances,
on
the inside and outside
of
the housing
seal tube.
7.
Install a clean primary element (?). Install and secure the
service cover
CD
with the valve ~ at the bottom.
NOTE: Insert a new element correctly. When the element seal
unit is inserted into the seal tube, its seal surface is extended
uniformly to seal the element. To seal the element more
accurately, push securely not the center but the outer
of
the
element end surface.
8.
Reset the dust indicator ® by pushing
in
the reset button.
9.
If the dust indicator indicated the red signal after starting the
engine, change to new element.
NOTE: Normally a filter can be cleaned up to five times. Replace
after five cleanings maximum.
4-7-3
17VX3
250 HOURS
Cleaning
Primary
Element
Inspect
Primary
Element
r(rR~~~---'n.-
YES
NO
YES
Install
Primary
Element
®
Indicator
/ Reset
button
