IHI 17VX3 - Travel Performance

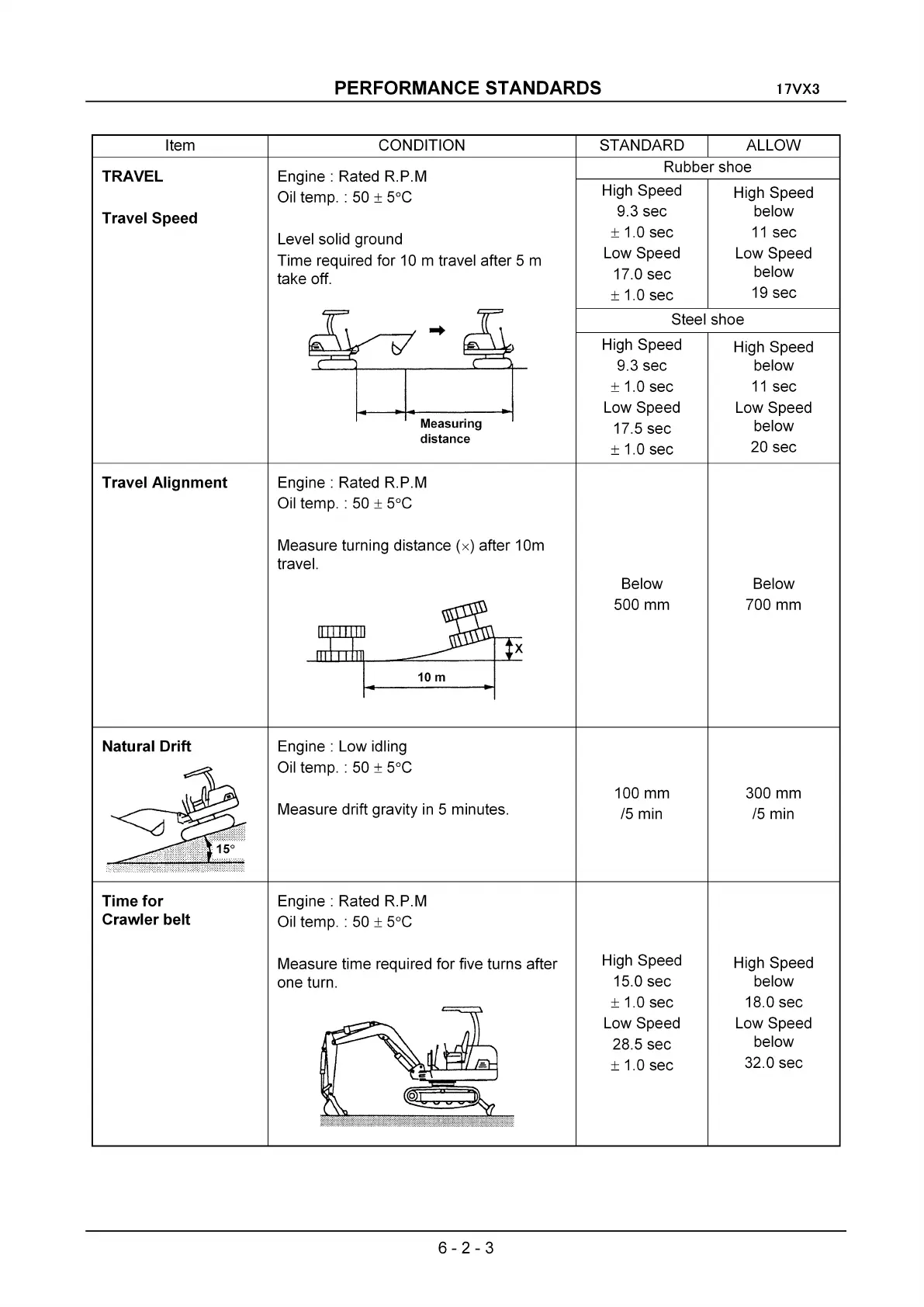

PERFORMANCE STANDARDS
17VX3
Item CONDITION STANDARD ALLOW
Steel shoe
Rubber shoe
High Speed
below
11 sec
Low Speed
below
20 sec
High Speed High Speed
9.3 sec below
± 1.0 sec
11 sec
Low Speed Low Speed
17.0 sec below
± 1.0 sec
19 sec
High Speed
9.3 sec
±1.0sec
Low Speed
17.5 sec
±1.0sec
..
Measuring
distance
Level solid ground
Time required for
10m travel after 5 m
take off.
Engine: Rated R.P.M
Oil temp. :
50 ± 5°C
Travel Speed
TRAVEL
Travel
Alignment Engine: Rated R.P.M
Oil temp. :
50 ± 5°C
Measure turning distance
(x) after 10m
travel.
Below
500 mm
Below
700 mm
10 m
Natural Drift Engine: Low idling
Oil temp. :
50 ± 5°C
Measure drift gravity
in 5 minutes.
100 mm
/5 min
300 mm
/5 min
Time for
Crawler belt
Engine: Rated R.P.M
Oil temp. :
50 ± 5°C
Measure time required for five turns after
one turn.
High Speed
15.0 sec
±1.0sec
Low Speed
28.5 sec
±1.0sec
High Speed
below
18.0 sec
Low Speed
below
32.0 sec
6-2-3
