IHI 17VX3 - Engine and Auxiliary Components

Oil pressure
switch
Water drain plug
~ 290 Push-5 blades
Engine stop
solenoid

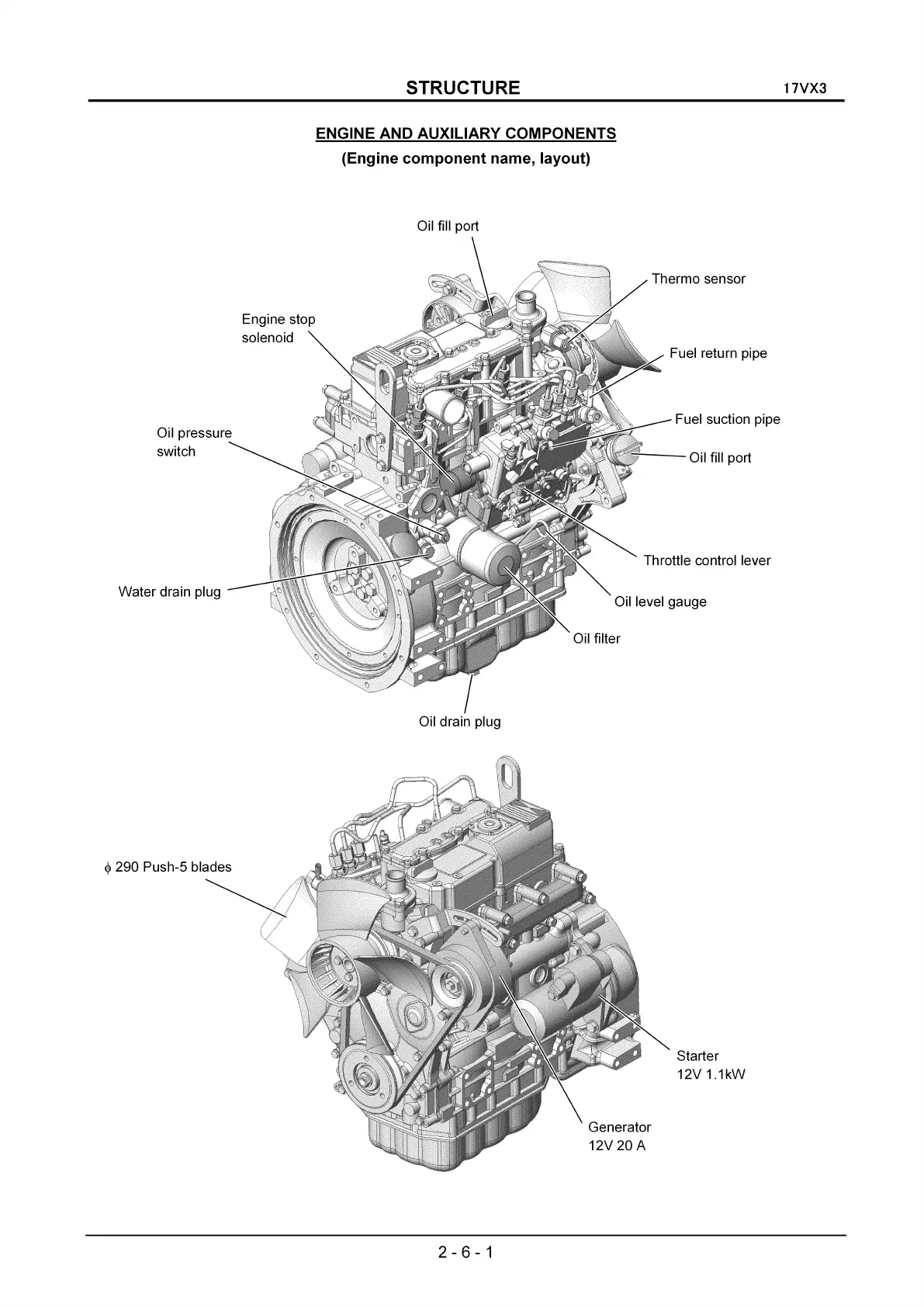

STRUCTURE
ENGINE AND AUXILIARY COMPONENTS
(Engine
component name, layout)
Oil fill port
Thermo sensor
Fuel return pipe
Fuel suction pipe
Oil fill port
Throttle control lever
Oil level gauge
Oil filter
Oil drain plug
Starter
12V 1.1kW
Generator
12V 20 A
2 - 6 - 1
17VX3
