OPERATION

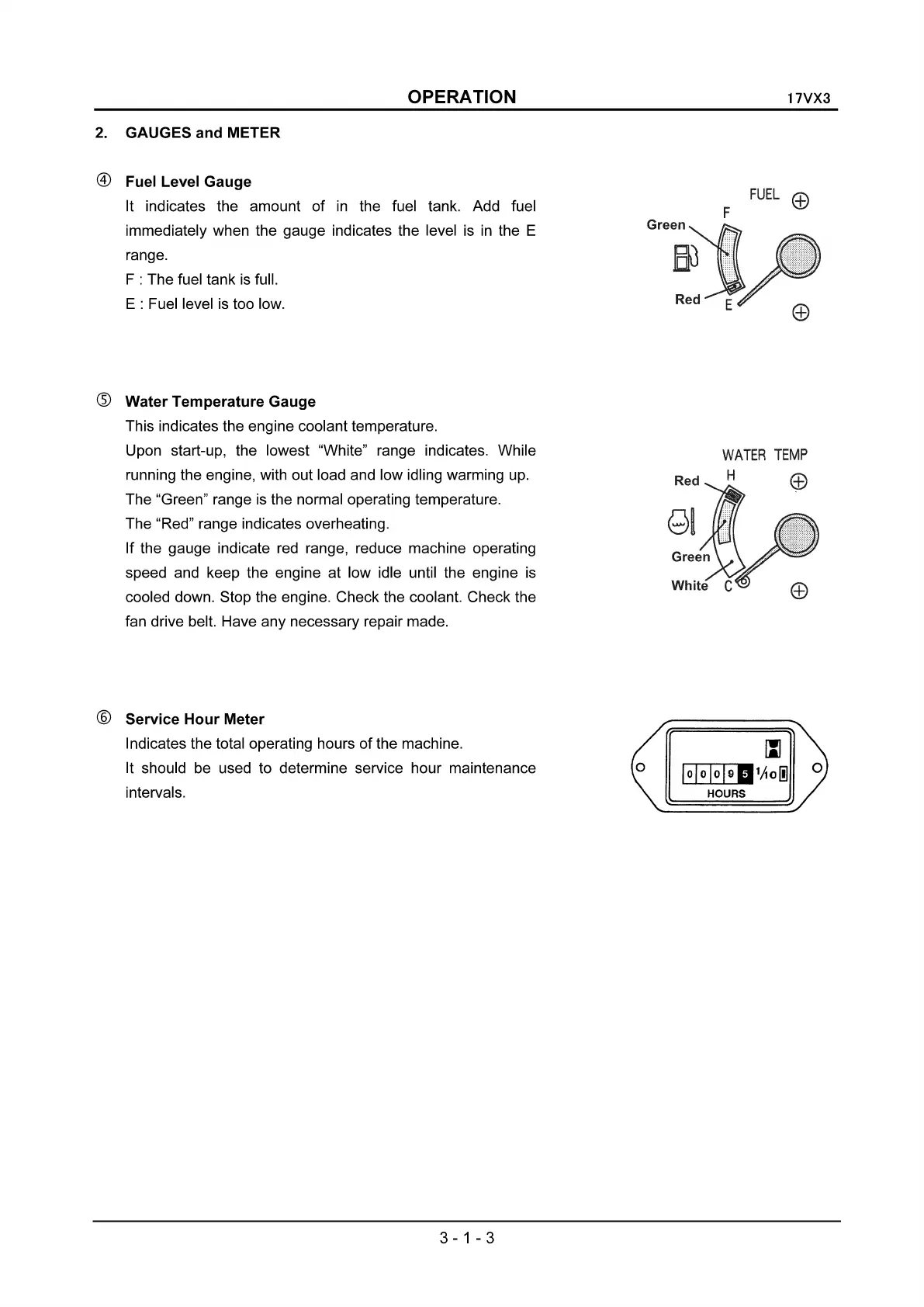

2. GAUGES and METER
® Fuel Level Gauge
It indicates the amount of
in the fuel tank. Add fuel
immediately when the gauge indicates the level
is in the E
range.
F : The fuel tank is full.
E : Fuel level
is too low.
G) Water Temperature Gauge
This indicates the engine coolant temperature.
Upon start-up, the lowest "White" range indicates. While
running the engine, with out load and low idling warming
up.
The "Green" range is the normal operating temperature.
The "Red" range indicates overheating.
If the gauge indicate
red range, reduce machine operating
speed and keep the engine at low idle until the engine is
cooled down. Stop the engine. Check the coolant. Check the
fan drive belt. Have any necessary repair made.
17VX3
® Service Hour Meter
Indicates the total operating hours of the machine.
It should be used to determine service hour maintenance
intervals.
3-1-3
