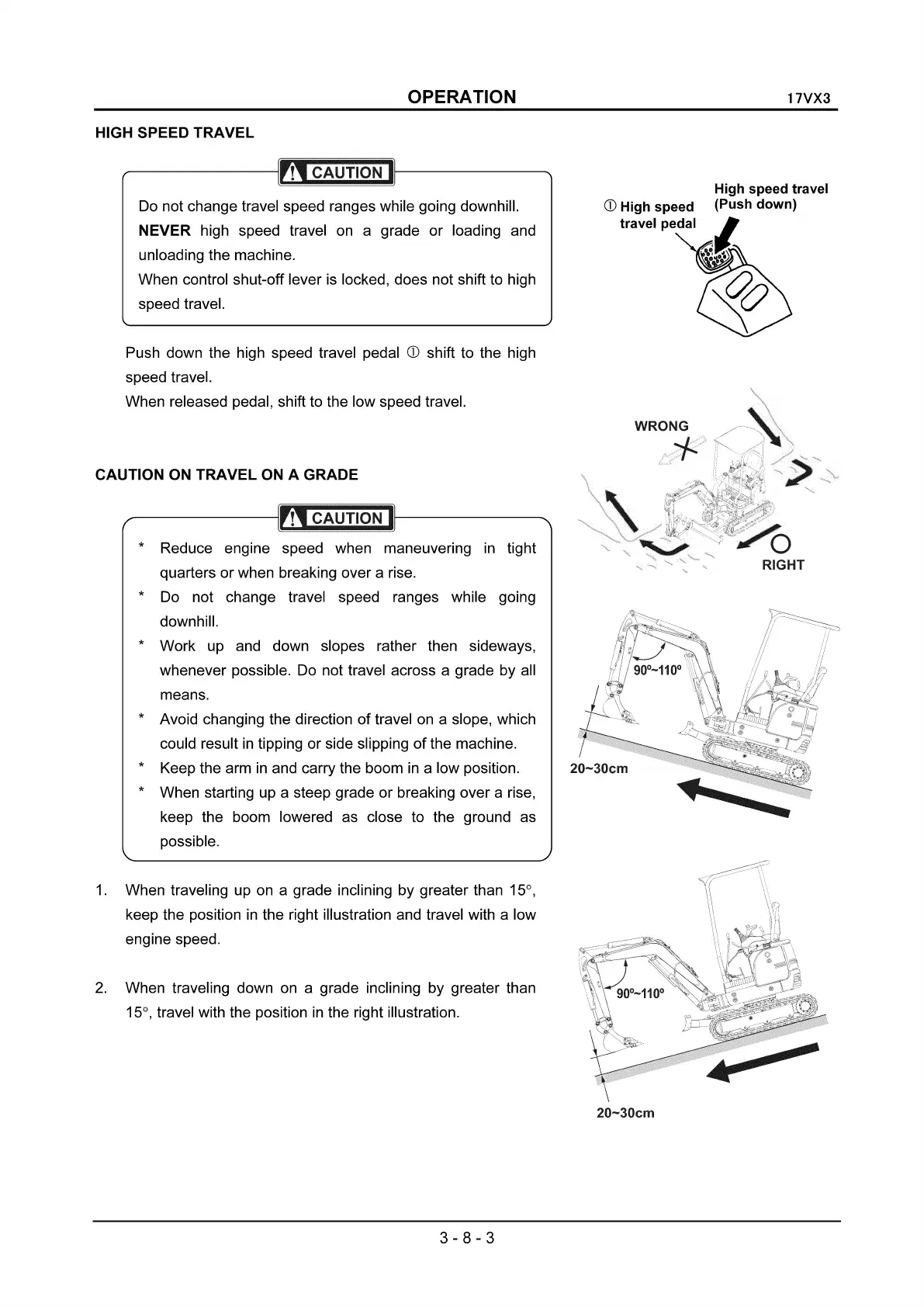

OPERATION
HIGH SPEED TRAVEL
Do not change travel speed ranges while going downhill.
NEVER high speed travel on a grade or loading and
unloading the machine.
When control shut-off lever is locked, does not shift to high
speed travel.
Push down the high speed travel pedal
CD
shift to the high
speed travel.
When released pedal, shift to the low speed travel.
CAUTION
ON
TRAVEL
ON
A GRADE
* Reduce engine speed when maneuvering
in
tight
quarters
or
when breaking over a rise.
* Do not change travel speed ranges while going
downhill.
* Work up and down slopes rather then sideways,
whenever possible. Do not travel across a grade by all
means.
* Avoid changing the direction
of
travel on a slope, which
could result
in
tipping or side slipping
of
the machine.
* Keep the arm
in
and carry the boom
in
a low position.
* When starting up a steep grade
or
breaking over a rise,
keep the boom lowered as close to the ground as
possible.
1.
When traveling up on a grade inclining by greater than 15°,
keep the position
in
the right illustration and travel with a low
engine speed.
2.
When traveling down on a grade inclining by greater than
15°, travel with the position
in
the right illustration.
3-8-3
17VX3
